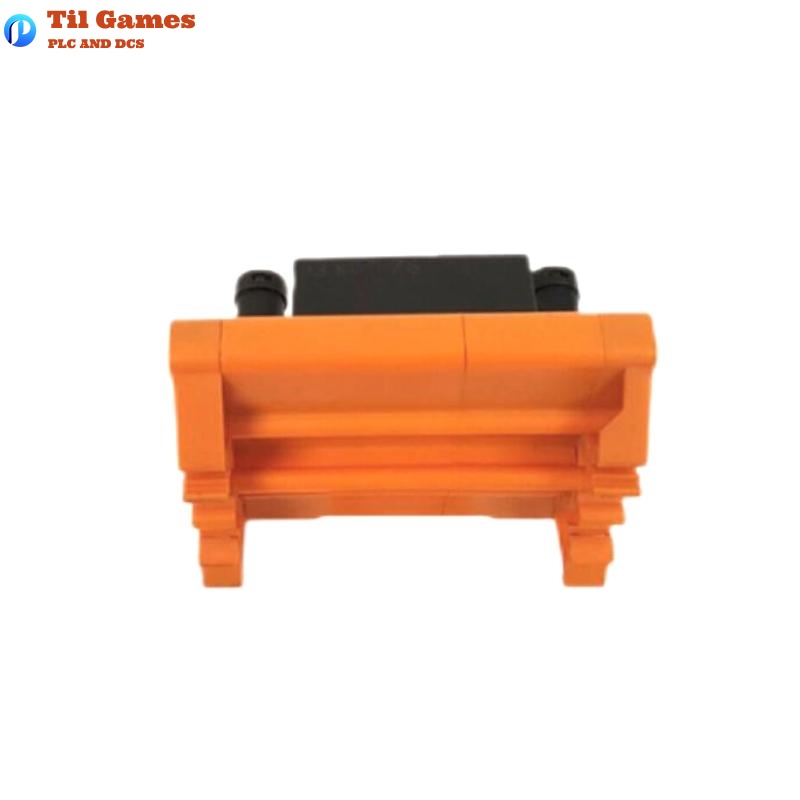

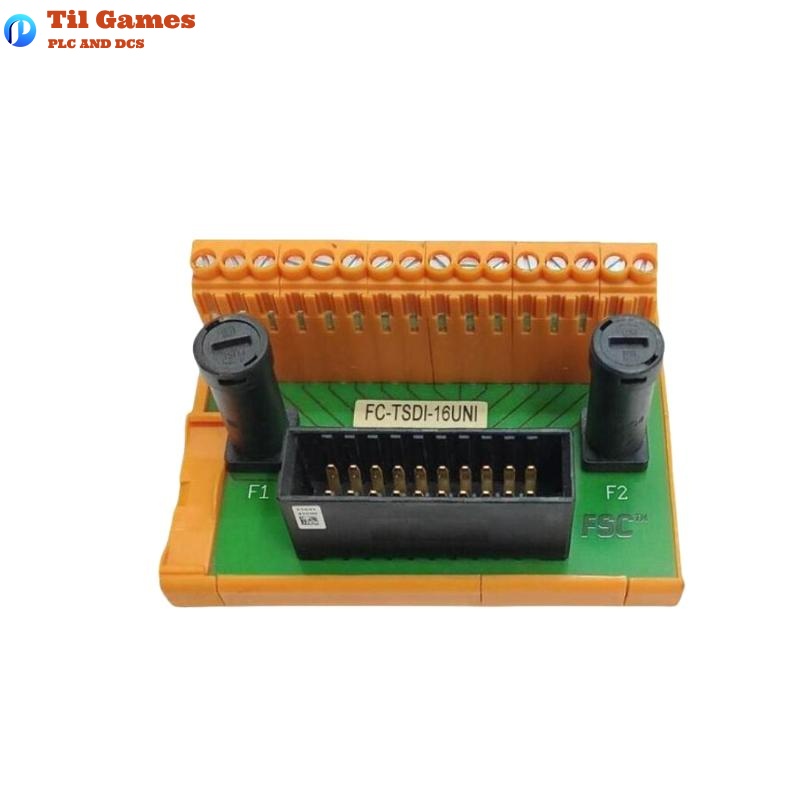

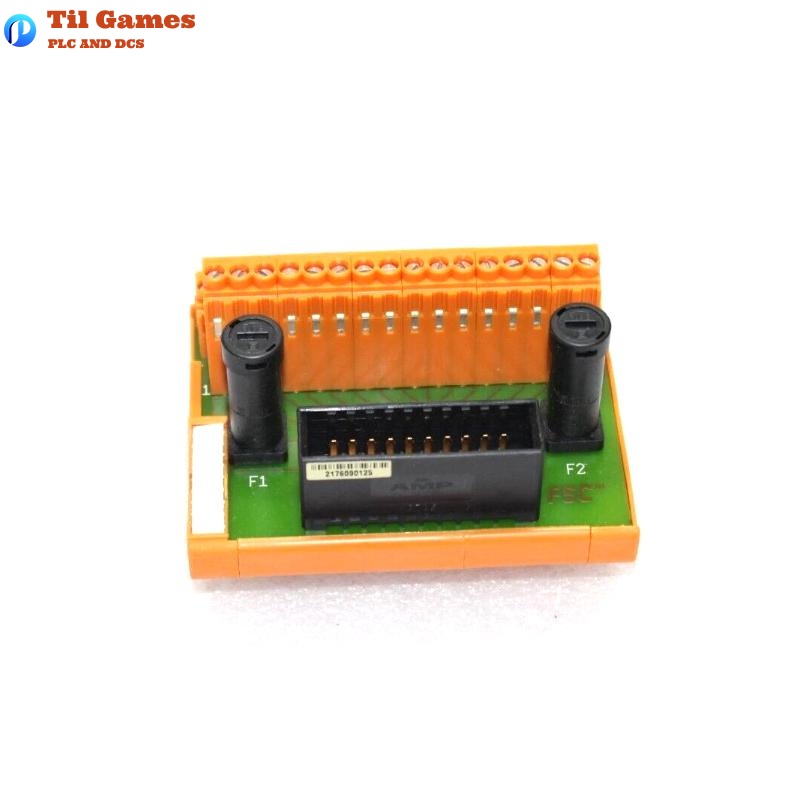

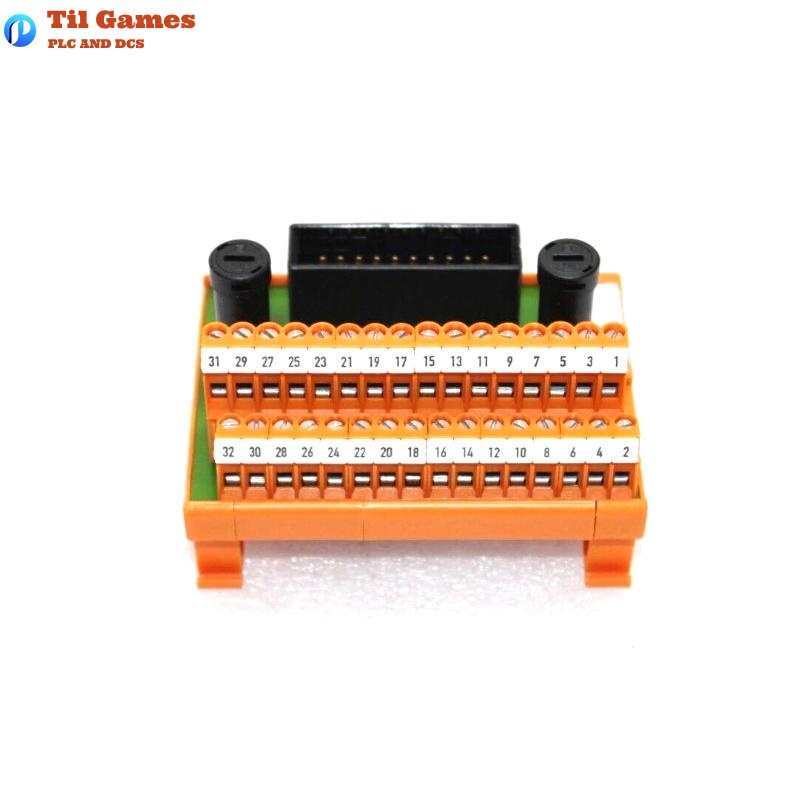

Honeywell FS-TSDI-16UNI Safe Digital Input Field Termination Assembly

Manufacturer：Honeywell

Product Number：FS-TSDI-16UNI

Product Type：Safe Digital Input Field Termination Assembly

Origin：USA

Dimensions：90 × 70 × 60 mm

Weight：0.36 kg

Frequently Asked Questions (FAQ)

Q1: What type of signals does the FS-TSDI-16UNI support?
A1: It supports safe digital input signals with compatibility for 24/48 VDC and NAMUR standards.

Q2: How many channels does the module have?
A2: The module supports 16 input channels, divided into two groups of 8.

Q3: What is the voltage rating for this module?
A3: The maximum voltage rating is 50 VDC (OV category 3) or 150 VDC (OV category 2), with actual limits defined by the input module.

Q4: What type of DIN rail is required for mounting?
A4: It supports TS32 and TS35 × 7.5 mm DIN rails.

Q5: Is this module suitable for redundant systems?
A5: Yes, it is designed to work with a redundant pair of SDIL-1608 input modules.

Q6: What kind of fuses does the module use?
A6: It uses 250 mAT slow-acting fuses, size 5 × 20 mm.

Q7: What wire size can be connected to the terminals?
A7: It supports wires up to 2.5 mm² (AWG 14).

Q8: What certifications does the FS-TSDI-16UNI have?
A8: The module is certified by CE, TUV, UL, CSA, and FM.

FS-TSDI-16UNI Honeywell Safe Digital Input Field Termination Assembly
