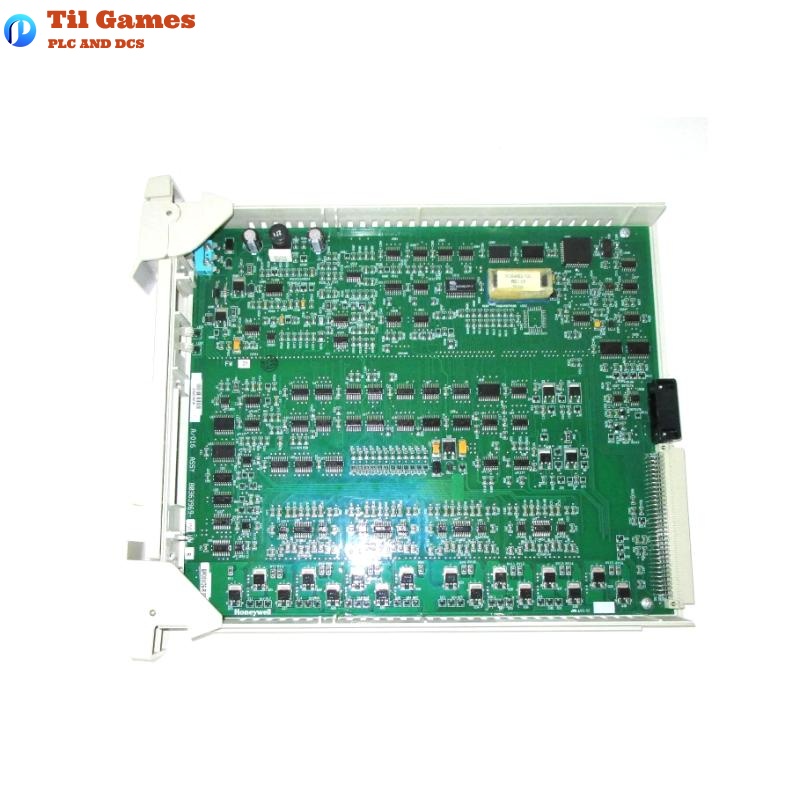

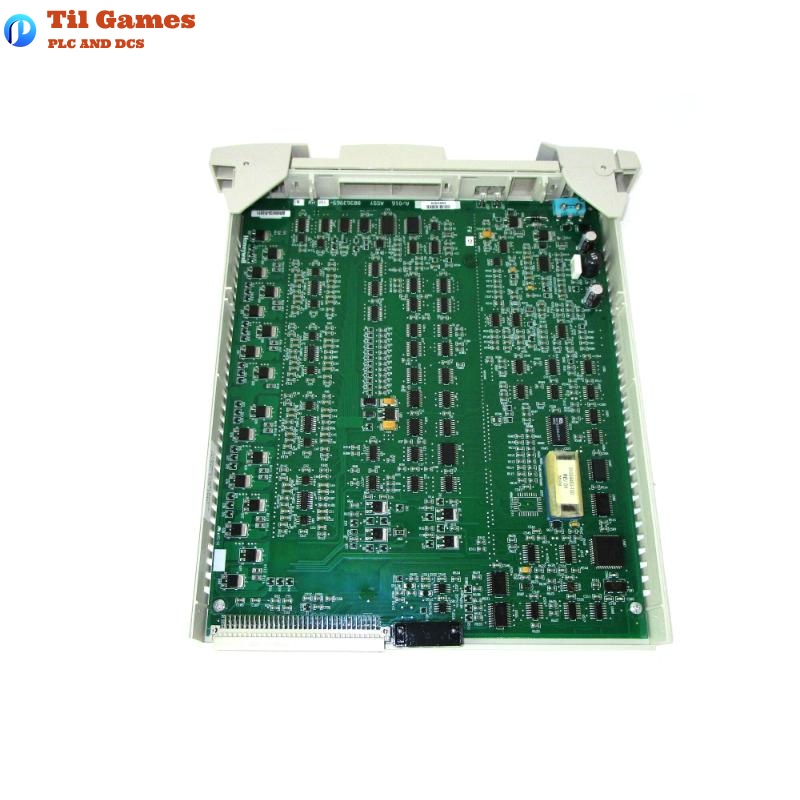

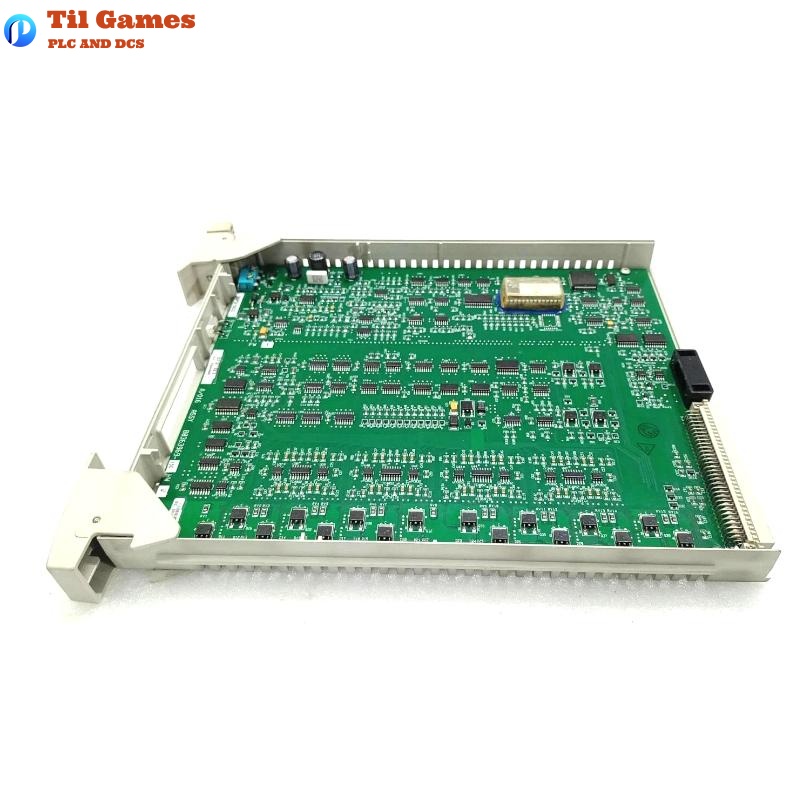

Analog Output Module Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Analog Output Module |
| Number of Channels | 8 channels |
| Output Signal Type | 4–20 mA current loop |
| Load Capability | Up to 600 Ω per channel |
| Resolution | 12 bits |
| Isolation | Channel-to-channel and system isolation |
| Power Supply | 24 VDC (via base) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Redundancy Support | Supported (for primary/secondary use) |
| Communication Interface | Through I/O base to controller |
| Mounting Type | Plug-in to I/O base |
| Dimensions (W×H×D) | 126 × 28 × 130 mm |
| Weight | 0.21 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output signals does the MC-PAOY22 support?
A1: It supports standard 4–20 mA current output signals.
Q2: Is there electrical isolation between channels?
A2: Yes, each channel is electrically isolated from the others and from the system.
Q3: What is the maximum load resistance per channel?
A3: The maximum load is 600 ohms per channel.
Q4: Does the module support hot swapping?
A4: No, hot swapping is not supported. Power must be turned off before replacement.
Q5: Can the module be used in a redundant system?
A5: Yes, it can be configured as primary or backup in a redundant architecture.
Q6: How does the module communicate with the controller?
A6: It communicates via the I/O base backplane with the controller, compliant with Honeywell TPS.
Q7: What are the environmental limits for operation?
A7: It operates between 0°C and 60°C with 5% to 95% non-condensing humidity.
Q8: Are tools required for installation?
A8: No special tools are needed; it installs by plugging into the appropriate I/O base.
