Technical Specifications
| Parameter | Description |
|---|---|

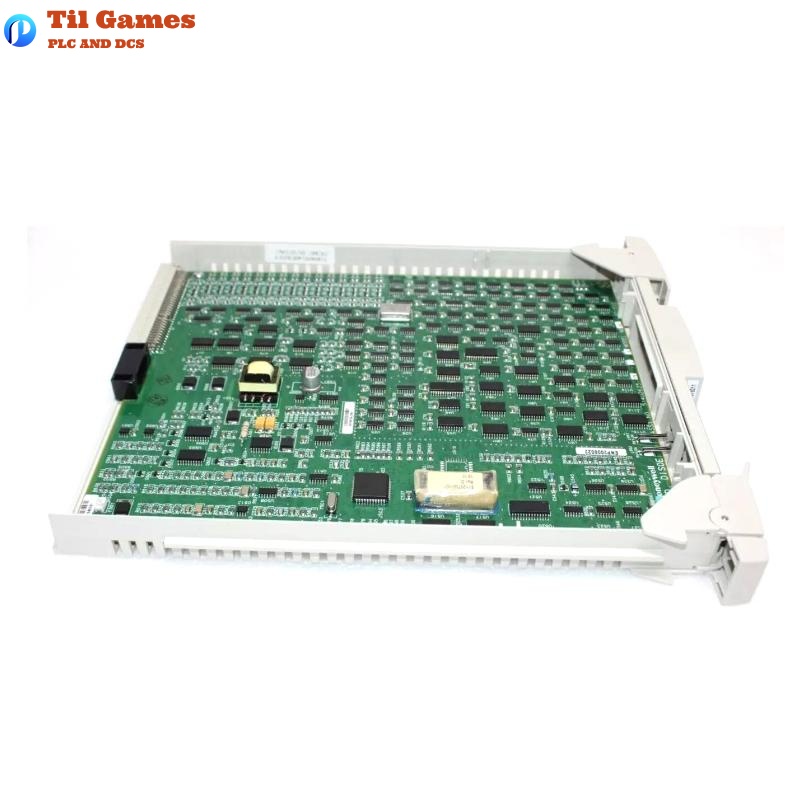

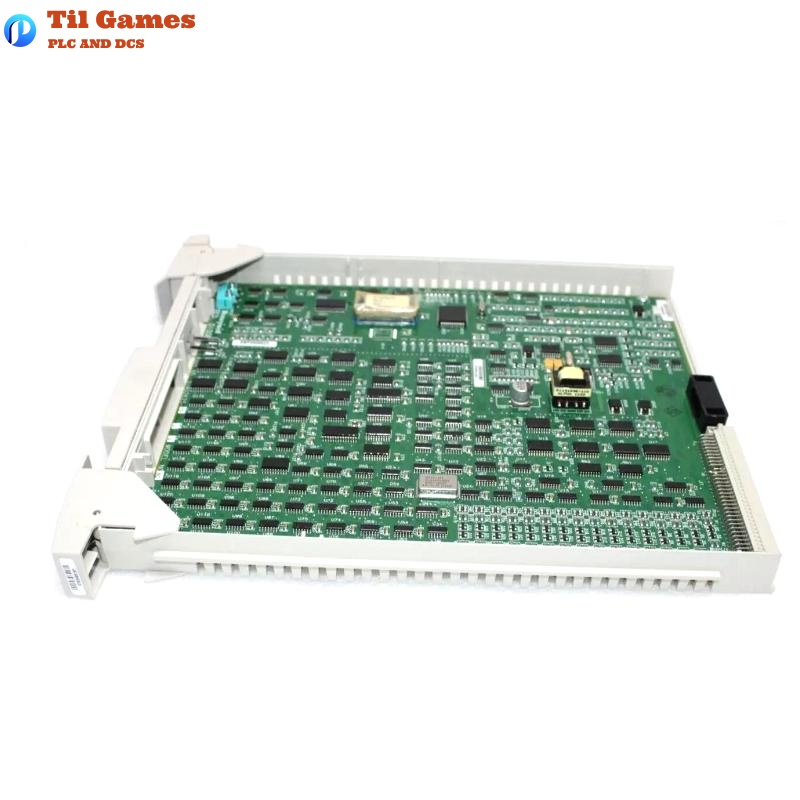

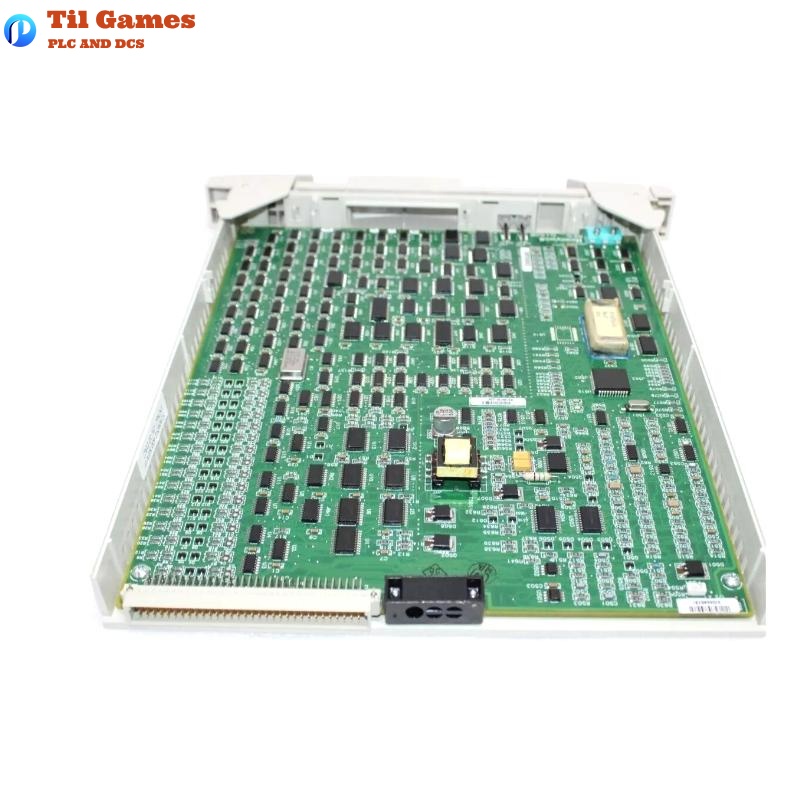

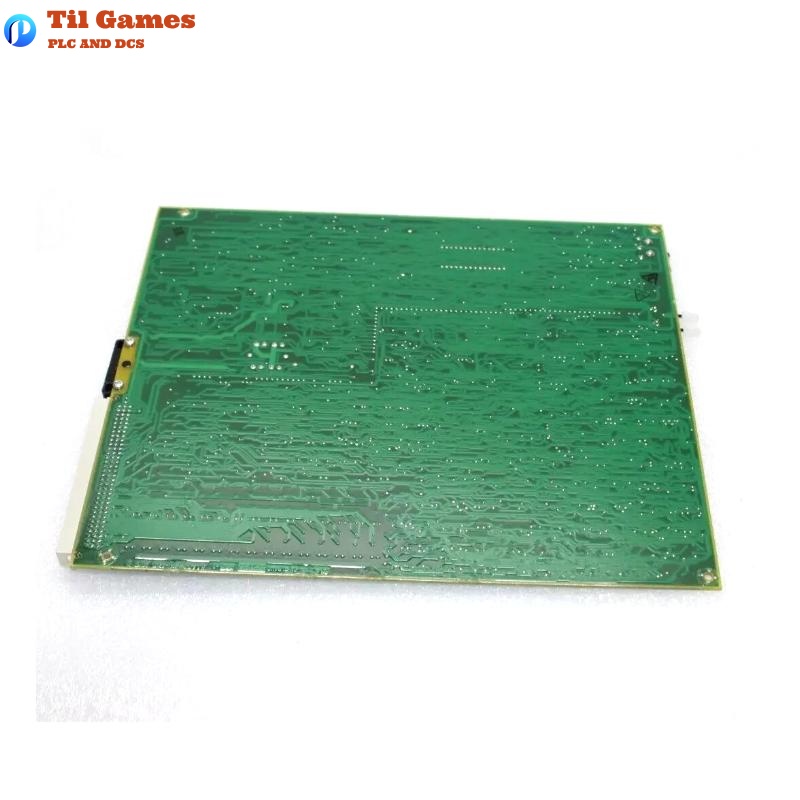

| Model Number | MC-PDIS12 51402625-175 |
| Function | Digital Input Processor for Sequence of Events (SOE) |
| Input Voltage Range | 24 Vdc |
| Number of Inputs | 32 discrete inputs |
| Input Type | Isolated digital contact inputs |
| Input Isolation | Optical isolation |
| SOE Resolution | 1 millisecond |
| Input Status Indication | On-board LEDs per input channel |
| Redundancy Support | Yes (with redundant IOP configurations) |
| Communication | Via High Performance Process Manager I/O Link |
| Mounting | Installed in 7-slot or 15-slot IOP card file |
| Cooling | Convection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W×H×D) | 240 × 76 × 203 mm |
| Weight | 1.10 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the MC-PDIS12 module?
A1: It records digital input status changes with 1 ms resolution for sequence of events applications.
Q2: How many digital inputs does this module support?
A2: It supports 32 optically isolated digital inputs.
Q3: Is the module compatible with redundant configurations?
A3: Yes, it supports redundancy using paired IOPs connected to the same FTA.
Q4: Can it be used in hazardous areas?
A4: Use with appropriately certified FTAs and power adapters is required for hazardous locations.
Q5: What type of input voltage does it accept?
A5: It operates with 24 Vdc input.
Q6: How is the module mounted in a system?
A6: It is installed in a 7-slot or 15-slot IOP card file.
Q7: What is the time resolution of event capture?
A7: It has a time resolution of 1 millisecond for event sequencing.
Q8: Is this module CE-compliant?
A8: CE compliance depends on the card file model and system configuration used.
