Technical Specifications
| Parameter | Technical Data |
|---|---|

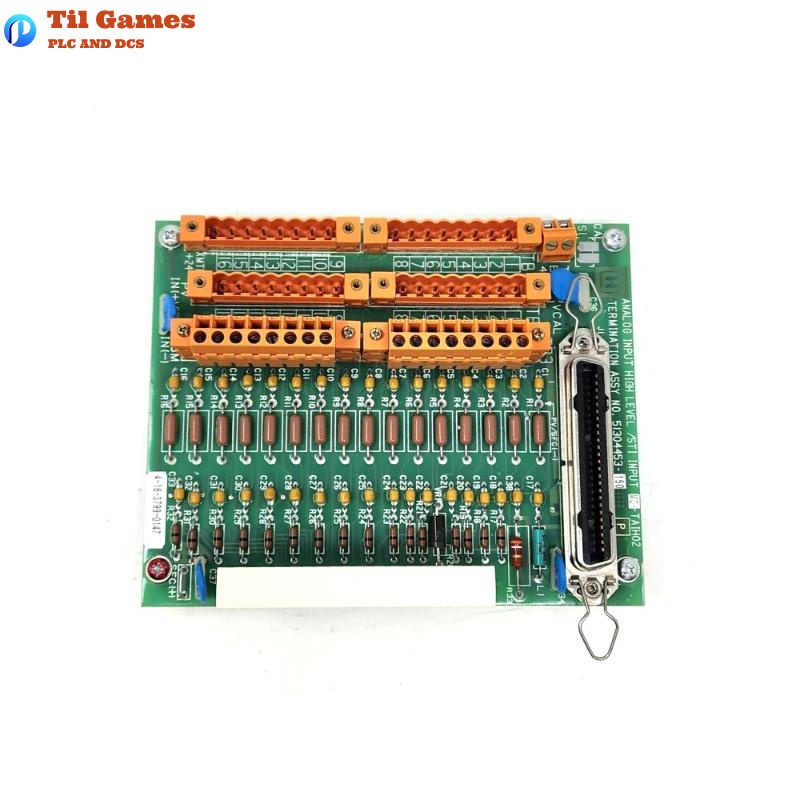

| Module Model | MC-TAIH02 |
| Input Type | Voltage, Current (2-wire or self-powered transmitters) |
| Number of Input Channels | 16 differential channels |
| Input Range | 0–5V, 1–5V, 0.4–2V, 4–20mA (via 250Ω resistor) |
| A/D Resolution | 16 bits (14 bits used) |
| Common Mode Voltage | -6V to +5V (peak) |
| Normal Mode Rejection | 32 dB @ 60 Hz |
| Common Mode Rejection | 70 dB @ 60 Hz, 500Ω source imbalance |
| Max Input (No Damage) | ±30V (differential) |
| Input Impedance | >10 MΩ (voltage input) |
| Channel Crosstalk | 60 dB (channel-to-channel) |
| Input Scan Rate | 4 samples/sec/channel, all sampled in 250 ms window |
| Hardware Accuracy | ±0.075% FS @ 23.5°C±2°C; ±0.15% FS from 0 to 50°C |
| Transmitter Power Circuit | Resistor-limited or individual current-limited depending on FTA model |
| Surge Protection | ANSI/IEEE C37.90.1-1978 compliant |
| Dimensions | 120 x 100 x 40 mm |
| Weight | 1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of signals does the MC-TAIH02 module accept?
A1: It supports voltage and current inputs for 2-wire or self-powered transmitters.
Q2: How many channels are supported per module?
A2: It supports up to 16 differential input channels.
Q3: Does the module support redundancy?
A3: Yes, it supports redundancy with companion modules like MU-TAIH12, TAIH52, etc.
Q4: What is the accuracy of the module?
A4: It provides ±0.075% full-scale accuracy at 23.5°C ±2°C.
Q5: Can it handle 4-20 mA input signals?
A5: Yes, via an external 250Ω resistor to convert current to voltage input.
Q6: What is the common mode rejection capability?
A6: It has a CMRR of 70 dB under a 500Ω source imbalance.
Q7: What types of electrical protection are built in?
A7: It includes isolation, surge protection, and current limiting for field safety.
Q8: What are the physical dimensions and weight of the module?
A8: Dimensions are 120 x 100 x 40 mm, and weight is 1 kg.
