Technical Specifications
| Parameter | Description |
|---|---|
| Model | MC-TAIH22 51204170-150 |

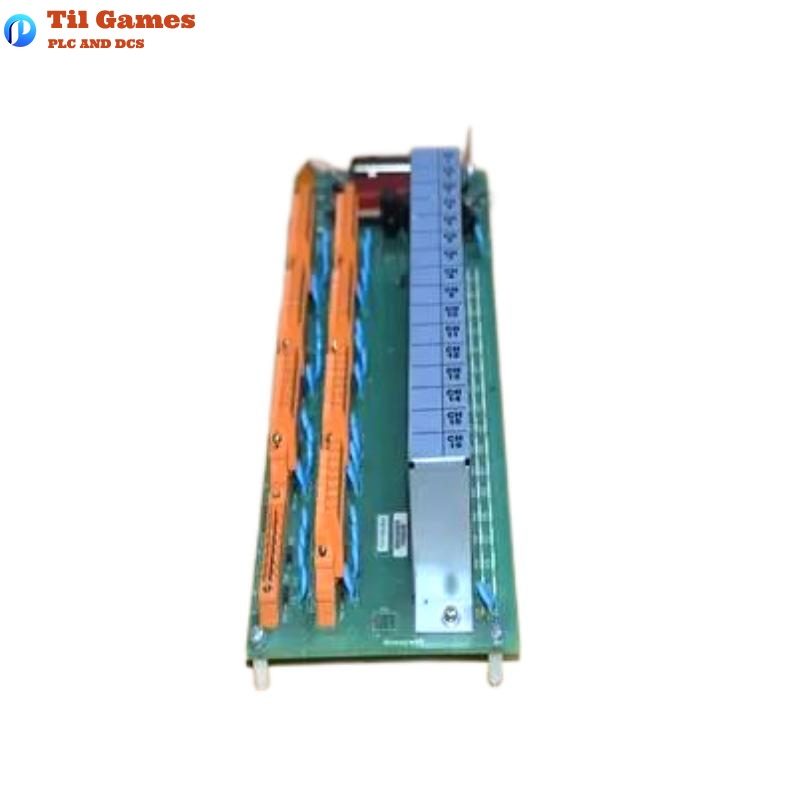

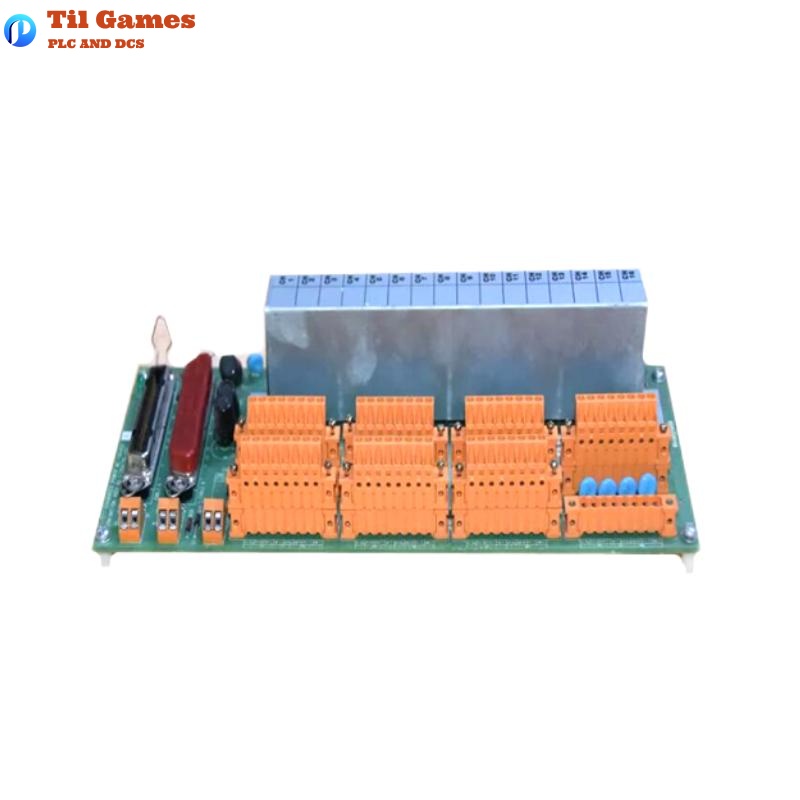

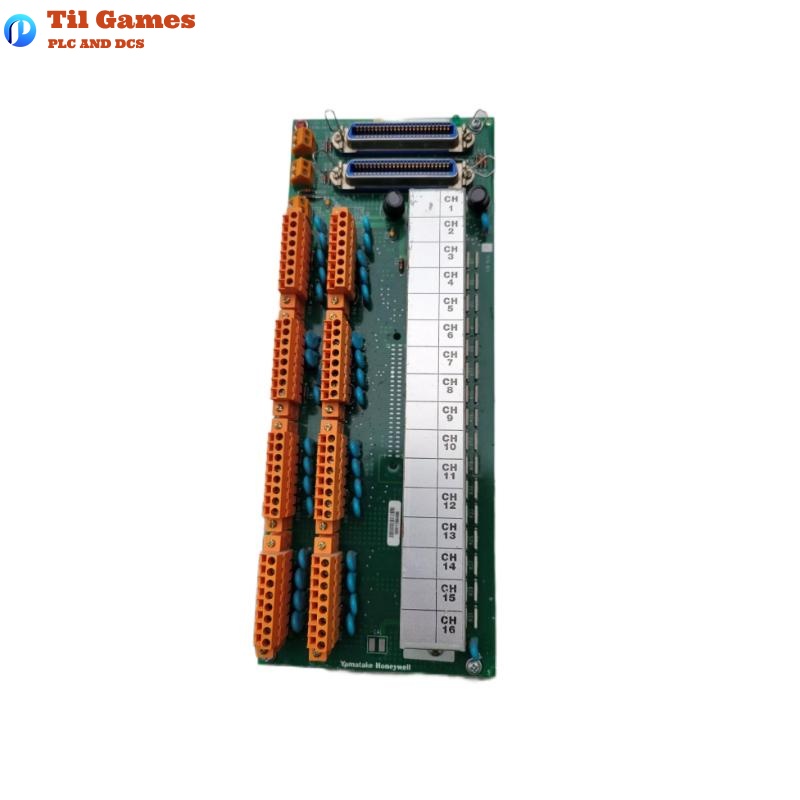

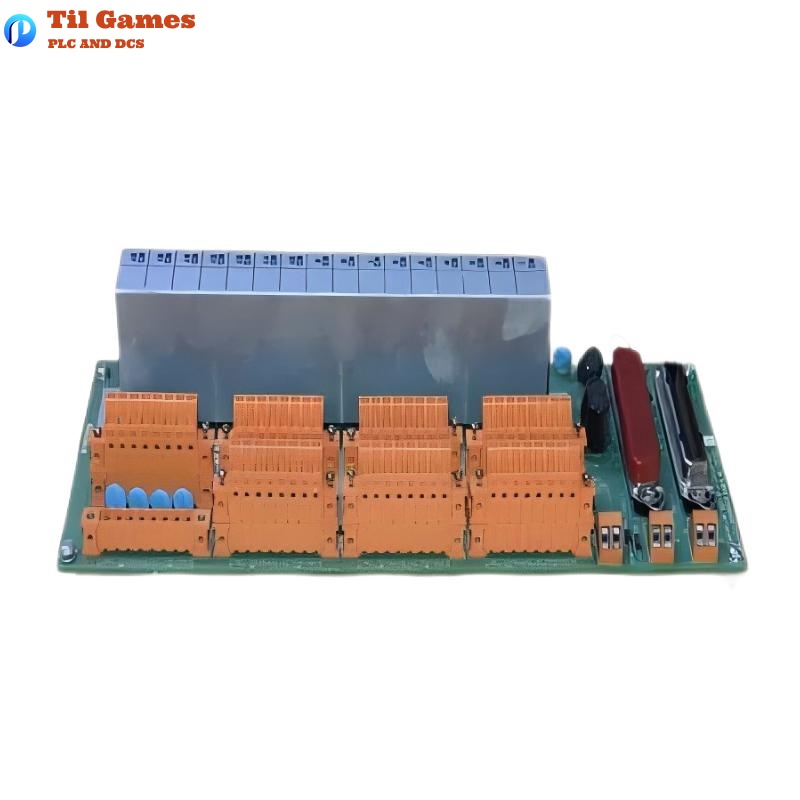

| Type | Enhanced Power High Level Analog Input FTA (STI compatible) |
| Input Channels | 16 differential input channels |
| Input Type | Voltage/current (2-wire or self-powered transmitters) |
| Input Ranges | 0–5V, 1–5V, 0.4–2V, 4–20mA (via 250Ω) |
| A/D Resolution | 16-bit (14 bits used) |
| Input Scan Rate | 4 samples/sec per channel, all channels sampled within 250ms |
| Common Mode Voltage Range | -6V to +5V peak |
| Common Mode Rejection | 70 dB (500Ω source imbalance) |
| Normal Mode Rejection | 32 dB @ 60Hz |
| Filter Response | Single-pole RC, -3 dB @ 1 Hz |
| Max Differential Voltage | ±30V (no damage) |
| Crosstalk (DC–60Hz) | 60 dB |
| Input Impedance | >10 MΩ (voltage input) |
| Hardware Accuracy | ±0.075% FS @ 23.5°C±2°C; ±0.15% FS (0–50°C) |
| Transmitter Power | Individually protected circuits, 30 mA max, 23V min |
| Redundancy Support | Compatible with MC-PAIH03 for redundancy |
| Dimensions | 307.3 mm x 120.7 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals are supported by MC-TAIH22?
A1: It supports both voltage and current signals, compatible with 2-wire or self-powered transmitters.
Q2: How many input channels are available?
A2: It provides 16 differential analog input channels.
Q3: Is 4-20mA signal supported?
A3: Yes, 4-20mA signals are supported via a 250Ω resistor.
Q4: What is the input sampling rate?
A4: Each channel is sampled 4 times per second, with all channels scanned within 250 milliseconds.
Q5: Does the device provide common-mode rejection?
A5: Yes, it provides 70 dB common-mode rejection (DC to 60 Hz).
Q6: What is the safe input voltage range?
A6: Inputs up to ±30V can be safely applied without damage.
Q7: Is redundancy supported?
A7: Yes, it can be paired with the appropriate input processor for redundancy.
Q8: What are the physical dimensions and weight of the module?
A8: The module measures 307.3mm × 120.7mm and weighs 0.3 kg.
