Technical Specifications
| Parameter | Description |
|---|---|

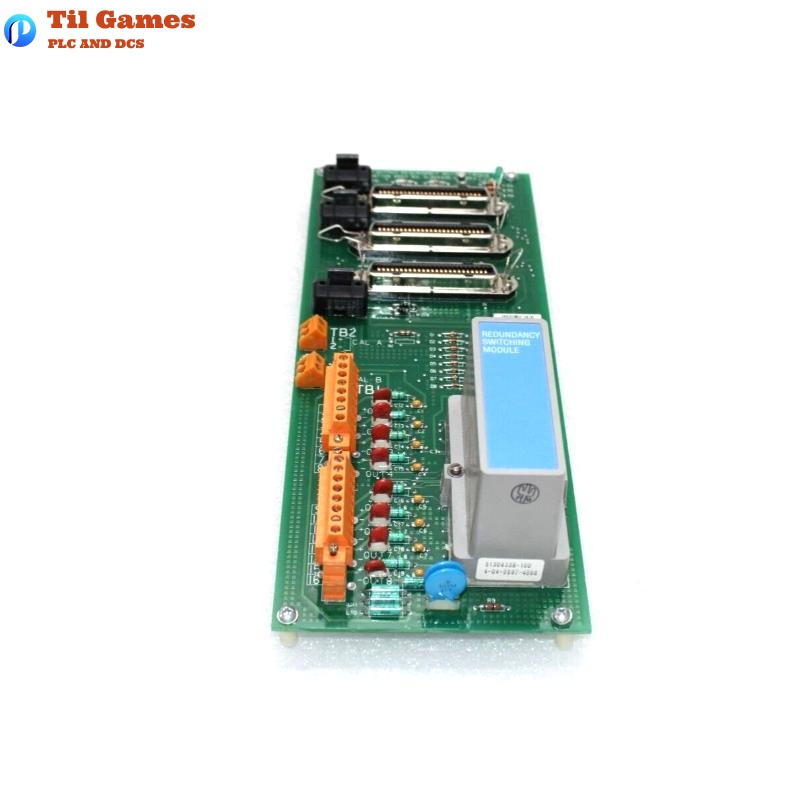

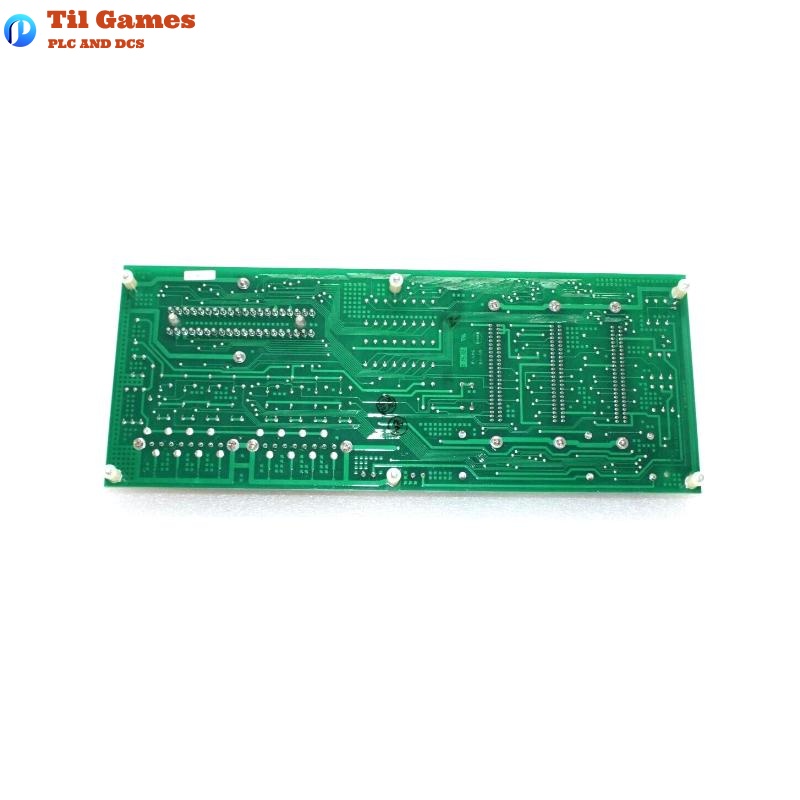

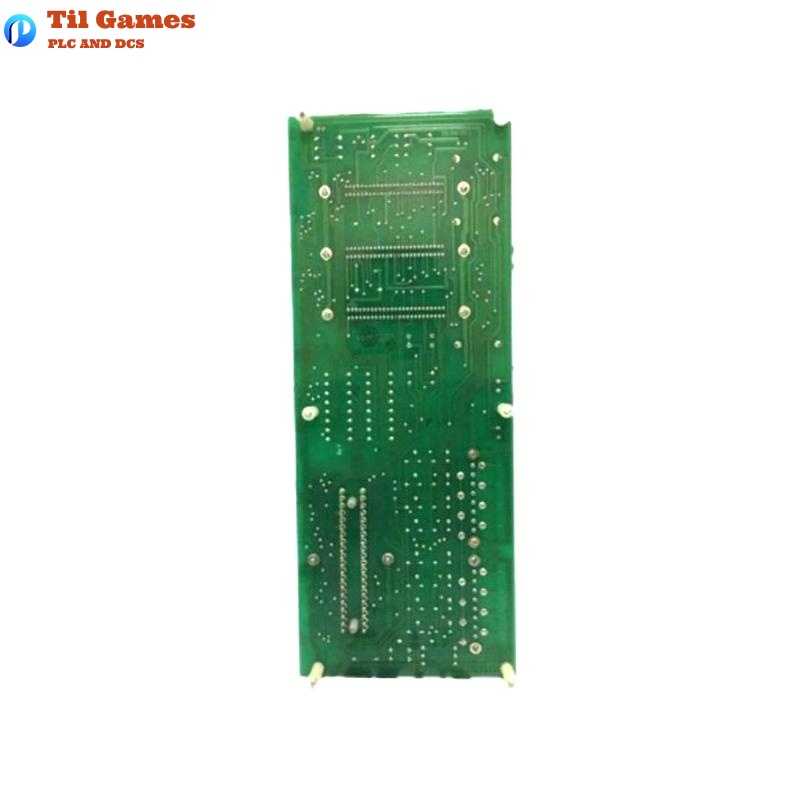

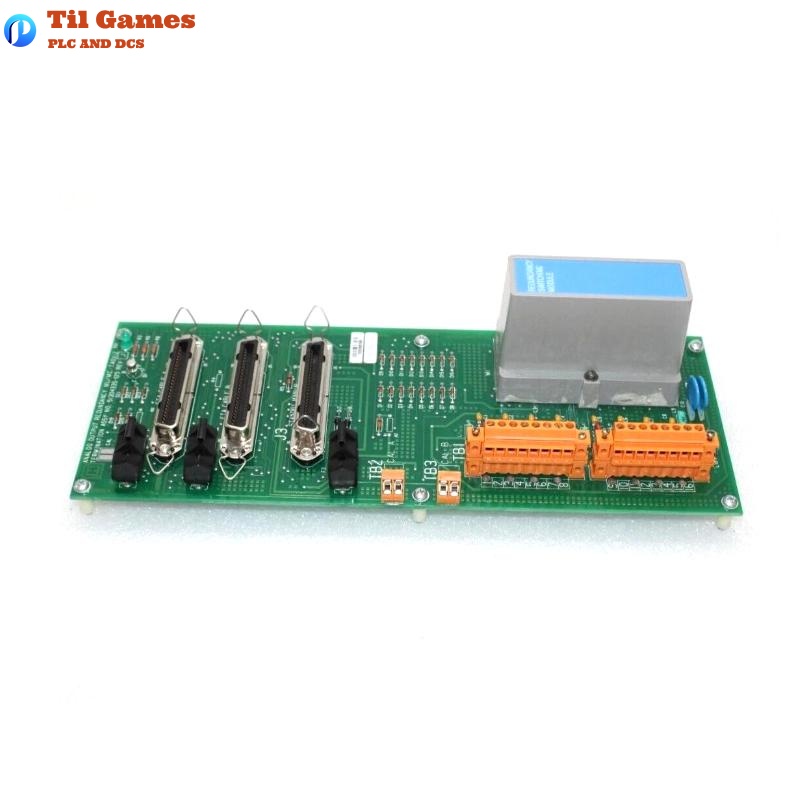

| Model | MC-TAOX12 |
| Output Type | 4-20 mA analog output |
| Output Channels | 8 channels |
| Output Current Range | 0.1 to 21.4 mA (adjustable) |
| Maximum Output Current | 26 mA |
| Max Resistive Load | 750 Ω @ 22 mA |
| Output Ripple | 100 mV peak-to-peak at power line frequency (250 Ω load) |
| Resolution | ±0.05% |
| Calibrated Accuracy | ±0.35% at 25°C (including linearity) |
| Temperature Stability | 0.02% Full Scale per °C |
| Readback Accuracy | ±4% |
| Output Settling Time | ≤4 ms (digital input code to 98% of final output) |
| Redundancy Switch Time | Normal: 1 ms (nominal), Max: 4 ms |
| Failover Disturbance | Nominal: 30 ms, Max: 125 ms |
| Diagnostic Frequency | Once per minute |
| Humidity Range | 10% – 90% non-condensing |
| Dimensions (W×H×D) | 30 × 314 × 278 mm |
| Weight | 0.52 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog output channels does the MC-TAOX12 provide?
A1: It provides 8 independent 4-20 mA analog output channels.
Q2: Does the module support output current readback checking?
A2: Yes, it supports readback checking with an accuracy of ±4%.
Q3: What is the switching time in redundant mode?
A3: Nominally 1 ms for normal switchovers and up to 125 ms during failover.
Q4: What is the maximum load resistance supported?
A4: It supports up to 750 Ω at 22 mA output.
Q5: Is software calibration supported?
A5: Yes, software calibration is supported for improved accuracy.
Q6: What is the output resolution?
A6: The output resolution is ±0.05%.
Q7: Does the MC-TAOX12 comply with surge protection standards?
A7: Yes, it complies with ANSI/IEEE C37.90.1-1978.
Q8: What is the operating humidity range of the module?
A8: 10% to 90% relative humidity, non-condensing.
