Technical Specifications
| Parameter Category | Specification |
|---|---|

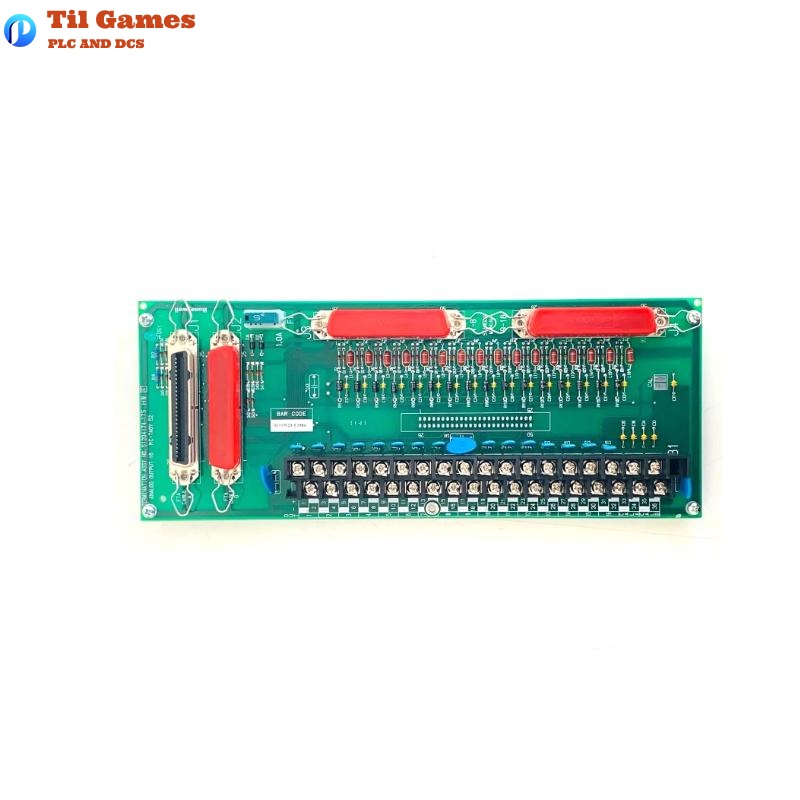

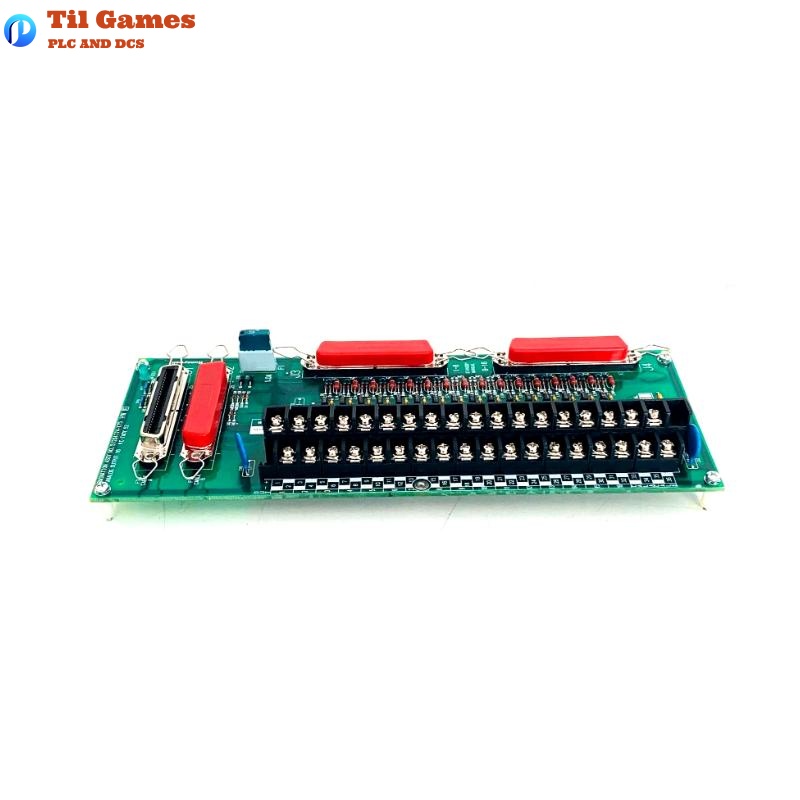

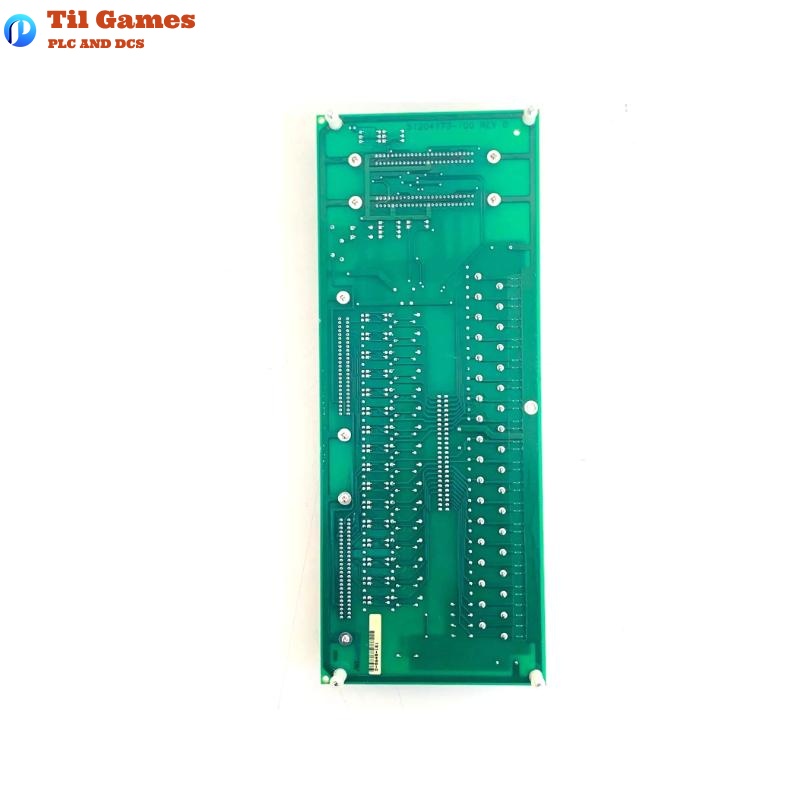

| Model | MC-TAOY52 51204174-175 |
| Module Type | Analog Output Module (16 Channels) |
| Output Type | 4-20 mA current output |
| Number of Channels | 16 analog output channels |
| Output Ripple | 100 mV peak-to-peak at power line frequency, 250 Ω load |
| Resolution | ±0.05% |
| Calibrated Accuracy | ±0.35% (at 25°C, includes linearity) |
| Output Linearity | ±0.05% of full scale |
| Temperature Stability | ±0.02% FS/°C |
| Output Readback Accuracy | ±4% |
| Output Current Range | 0 mA, 2.9 mA to 21.1 mA |
| Maximum Output Current | 24 mA |
| Max Resistive Load | 750 Ω @ 20 mA |
| Max Output Voltage | 15 V (with 24 V supply) |
| Output Settling Time | 4 ms (digital code to 98% final value) |
| Redundancy Failover | Output gap up to 20 ms |
| Dimensions | 115 x 75 x 35 mm |
| Weight | 0.4 kg |
| Surge Withstand | ANSI/IEEE C37.90.1-1978 compliant |
| Humidity Range | ±0.1% FS (50% RH ±40% RH) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output signals does the MC-TAOY52 support?
A1: It supports standard 4-20 mA analog current output signals.
Q2: What is the maximum load supported by the module?
A2: The module supports a maximum resistive load of 750 ohms.
Q3: What happens to the output during power failure or module fault?
A3: The output can be configured to either hold its last value or go unpowered.
Q4: Does it support output readback functionality?
A4: Yes, it provides output readback with ±4% accuracy.
Q5: Is hot-swapping supported for this module?
A5: No, hot-swapping is not supported. Power must be off during replacement.
Q6: Is redundancy supported?
A6: Yes, the MC-TAOY52 supports one-to-one redundancy for high availability.
Q7: How many output channels are available?
A7: It provides 16 independent analog output channels.
Q8: What kind of environment is the module suitable for?
A8: It is designed for standard industrial environments and meets ANSI/IEEE surge standards.
