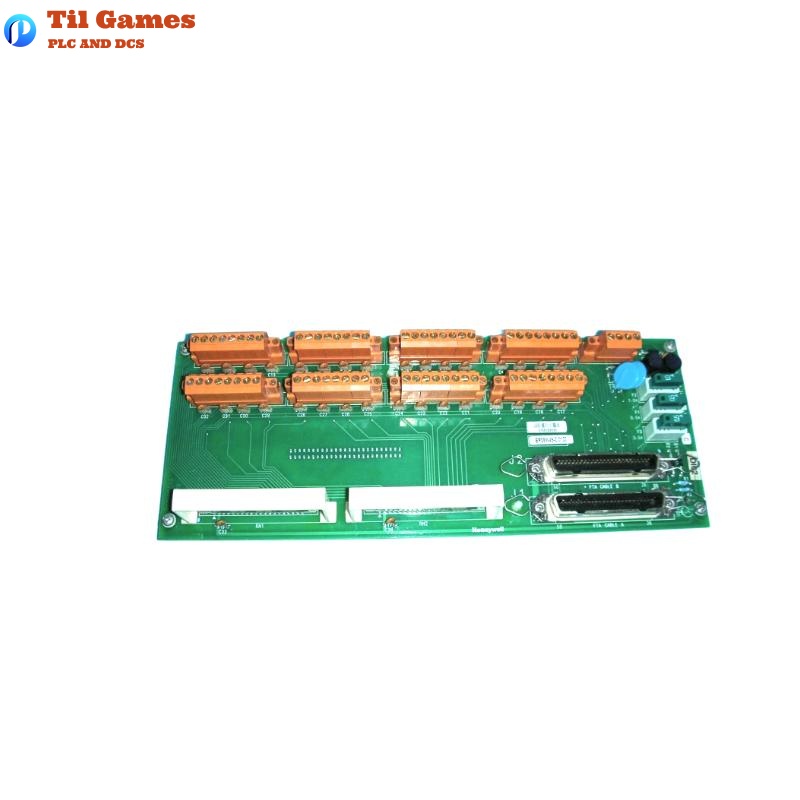

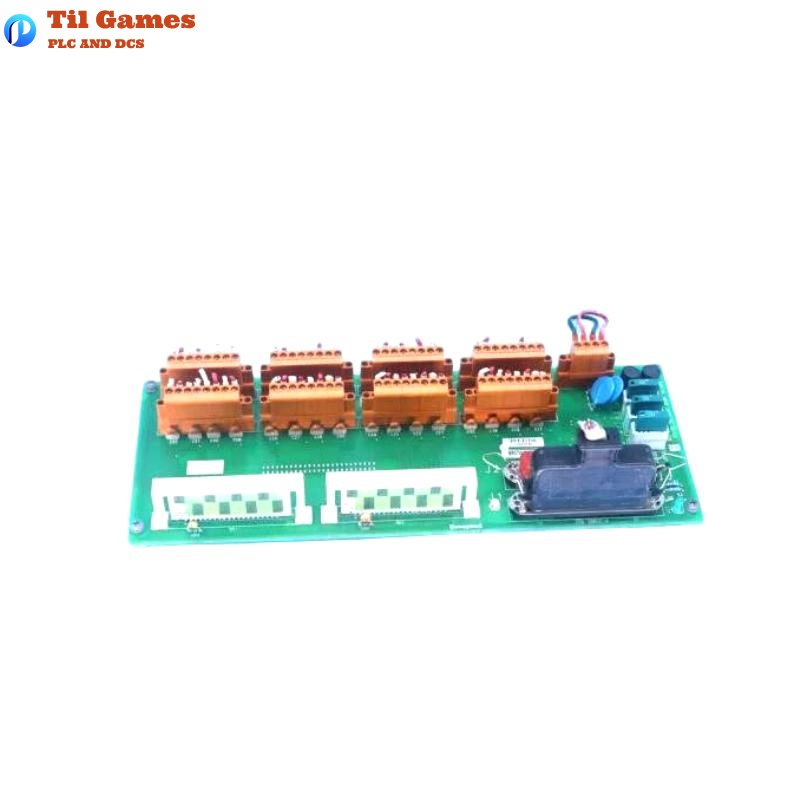

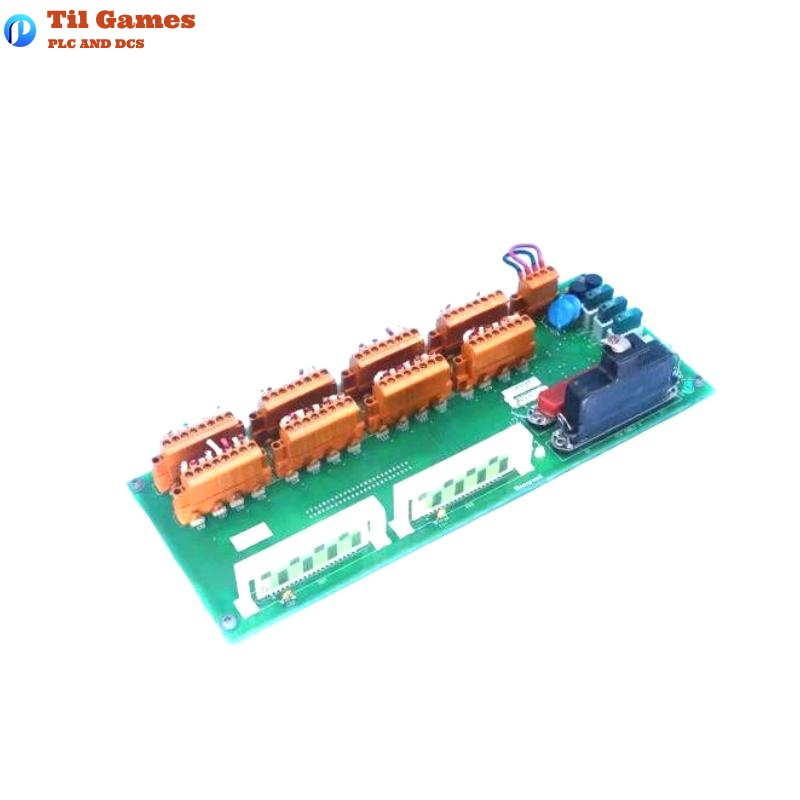

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MC-TDIY22 / 51204160-175 |
| Type | Digital Input FTA |
| Input Channels | 32 |
| Input Voltage Range | 20–30 Vdc |
| Input Type | Optical isolation |
| Sense Current (ON) | ≥ 4.5 mA |
| Sense Current (OFF) | ≤ 2.8 mA |
| Pickup Voltage | ≥ 20 Vdc |
| Dropout Voltage | ≤ 10 Vdc |
| Isolation Voltage | 1500 Vac rms or ±1500 Vdc |
| Input Frequency Range | DC to 15 Hz |
| Absolute Delay | ≤ 2.0 ms |
| Surge Protection | ANSI/IEEE C37.90.1-1978 compliant |
| Input Resistance (ON) | ≤ 100 Ω |
| Input Resistance (OFF) | ≥ 45 kΩ |
| Dimensions (L×W×H) | 160 x 100 x 30 mm |
| Weight | 0.308 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the MC-TDIY22?
A1: The module accepts input voltages between 20 Vdc and 30 Vdc.
Q2: How many input channels are available on the MC-TDIY22?
A2: This module supports 32 isolated digital input channels.
Q3: What type of isolation is used in the input circuits?
A3: Optical isolation is used to separate field inputs from system electronics.
Q4: What is the maximum isolation voltage supported?
A4: It supports 1500 Vac rms or ±1500 Vdc of galvanic isolation.
Q5: What is the typical response time of the digital input?
A5: The response time (absolute delay) is no more than 2.0 milliseconds.
Q6: What are the ON and OFF sense current requirements?
A6: The module requires at least 4.5 mA for ON state and allows up to 2.8 mA for OFF state.
Q7: Is the module compliant with surge protection standards?
A7: Yes, it complies with ANSI/IEEE C37.90.1-1978 standards for surge protection.
Q8: What are the physical dimensions and weight of this module?
A8: The module measures 160 x 100 x 30 mm and weighs 0.308 kg.
