Technical Specifications
| Parameter | Description |
|---|---|

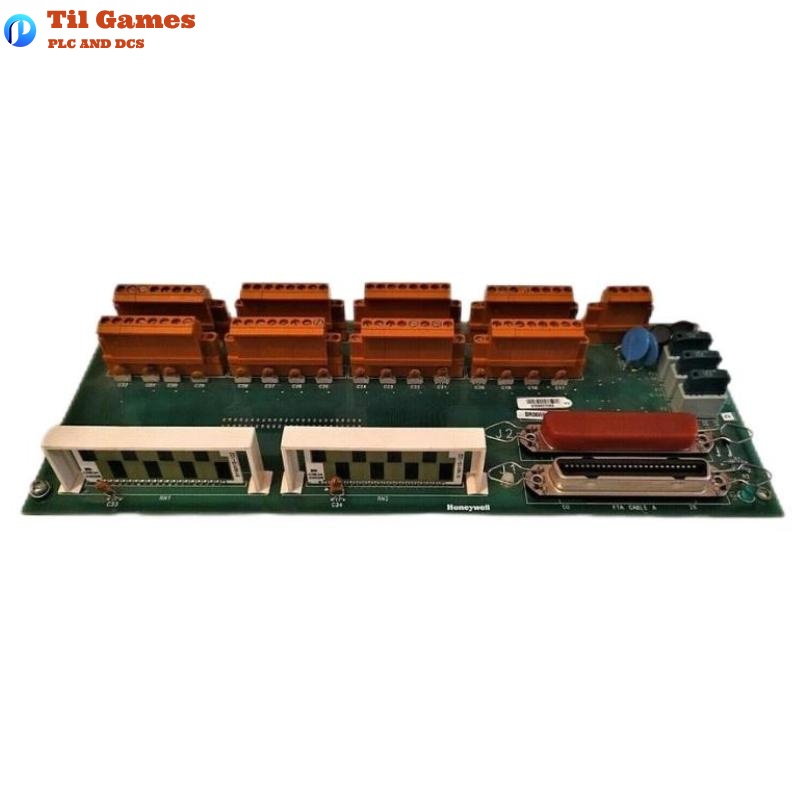

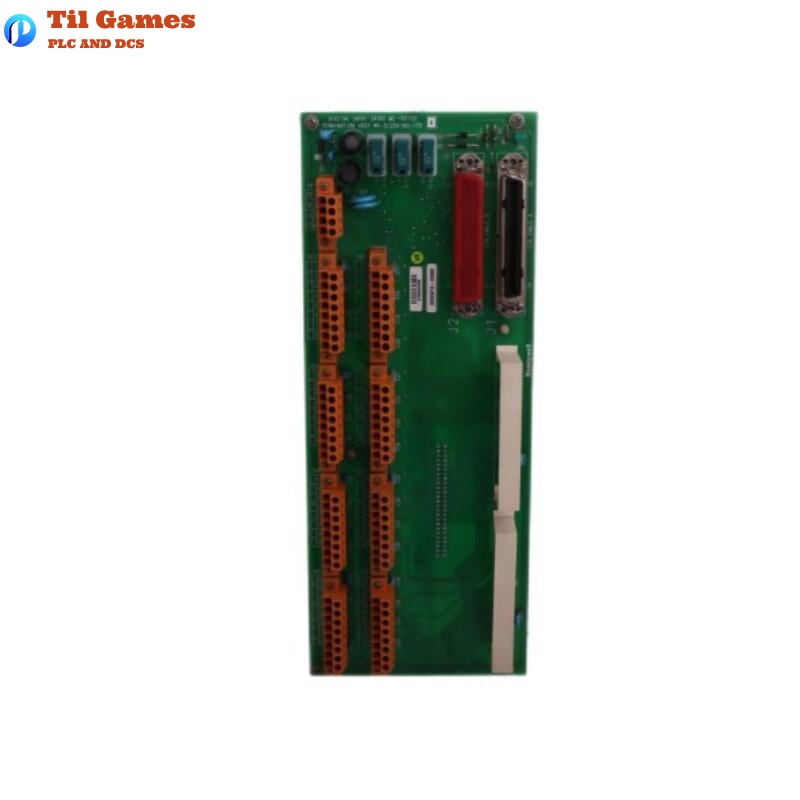

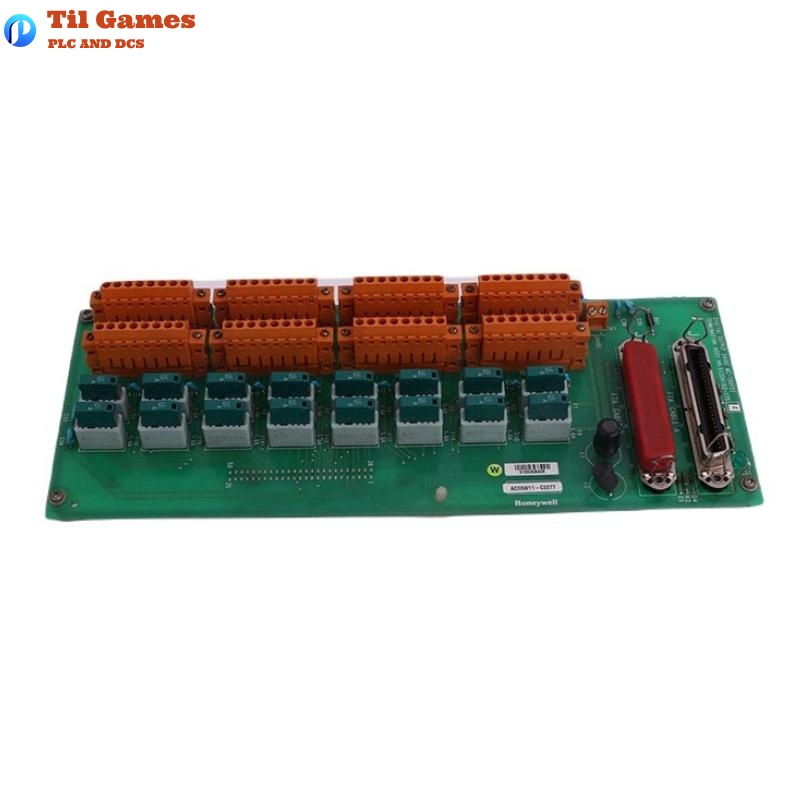

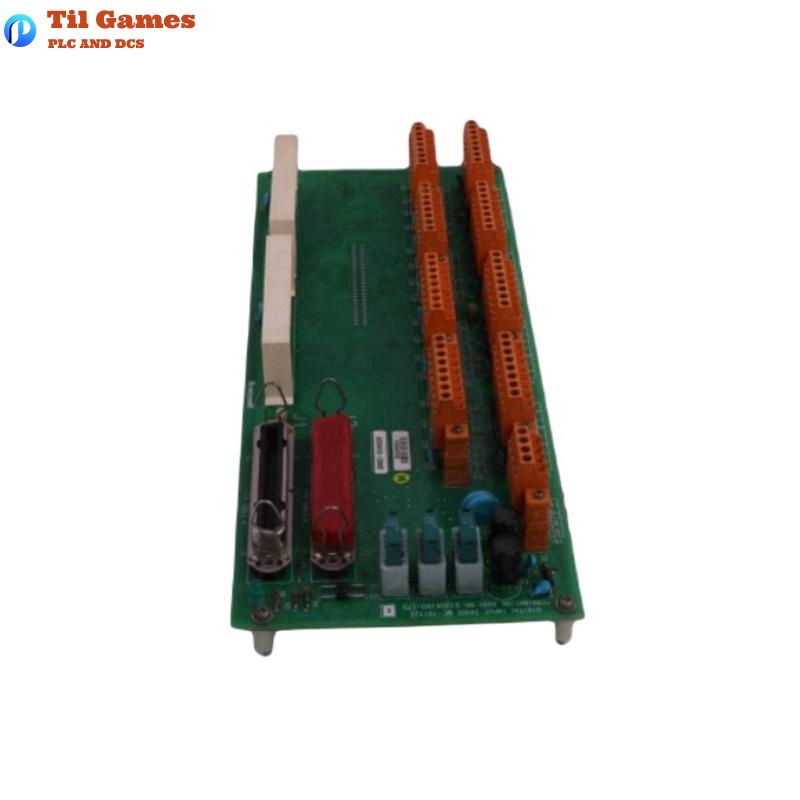

| Model | MC-TDIY22 80366180-175 |
| Product Type | Digital Input FTA Module (24V DC) |
| Input Channels | 32 channels |
| Input Voltage Range | 20–30 VDC |
| Rated Voltage | 24 VDC |
| ON-State Current | Minimum 4.5 mA |
| OFF-State Current | Maximum 2.8 mA |
| Pickup Voltage (ON) | Minimum 20 VDC |
| Dropout Voltage | Maximum 10 VDC |
| Isolation Rating | 1500 Vac RMS or ±1500 VDC |
| Isolation Type | Optical isolation |
| Input Delay | Maximum 2.0 ms |
| Input Frequency | DC to 15 Hz |
| Compliance | ANSI/IEEE C37.90.1-1978 |
| Dimensions | 160 x 100 x 30 mm |
| Weight | 0.308 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the MC-TDIY22 support?
A1: It supports 32 digital input channels at 24 VDC.
Q2: What type of input signal does this module accept?
A2: It accepts 24 VDC digital input signals.
Q3: How is electrical isolation achieved in this module?
A3: The module uses optical isolation with a rating of 1500 V RMS or ±1500 VDC.
Q4: What is the minimum on-time for an input signal?
A4: The minimum on-time is approximately 40 milliseconds.
Q5: Can this module detect changes in input states?
A5: Yes, it supports both state and change-of-state alarming.
Q6: Does the module support event counting?
A6: Yes, it supports event accumulation at up to 15 Hz.
Q7: Is redundant configuration supported?
A7: Yes, one-to-one redundancy is supported as an option.
Q8: What are the environmental requirements for operation?
A8: It is suitable for industrial environments, supports G1/G3 corrosion protection levels, and complies with CE standards.
