Technical Specifications
| Parameter Category | Technical Details |
|---|---|

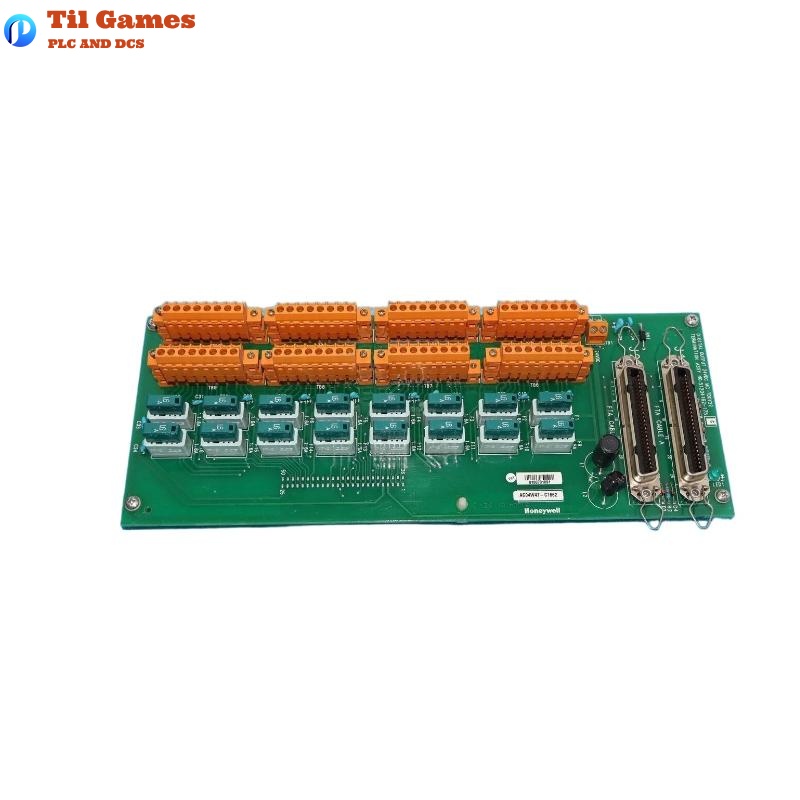

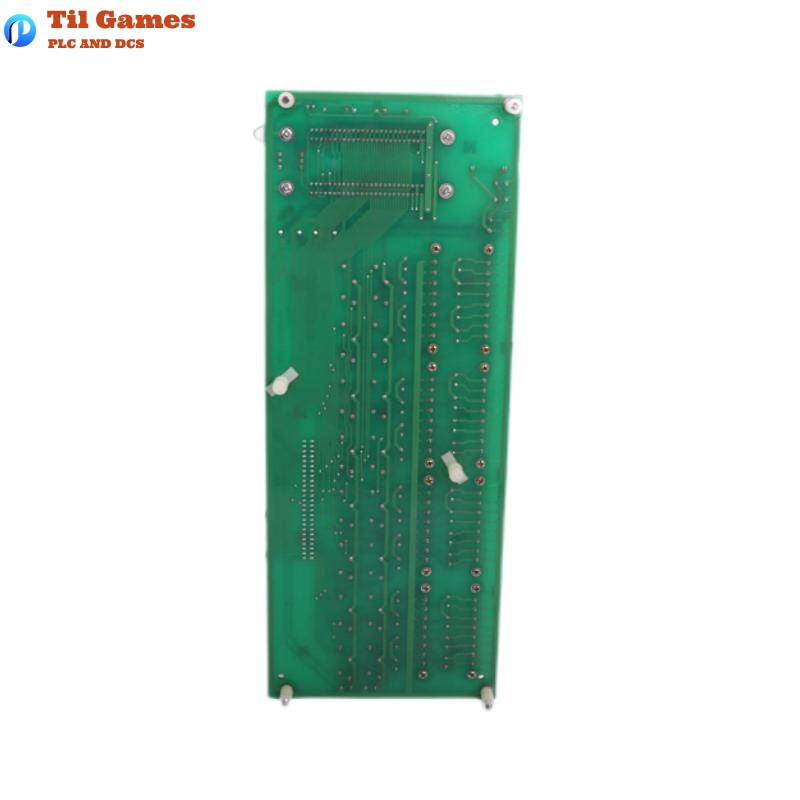

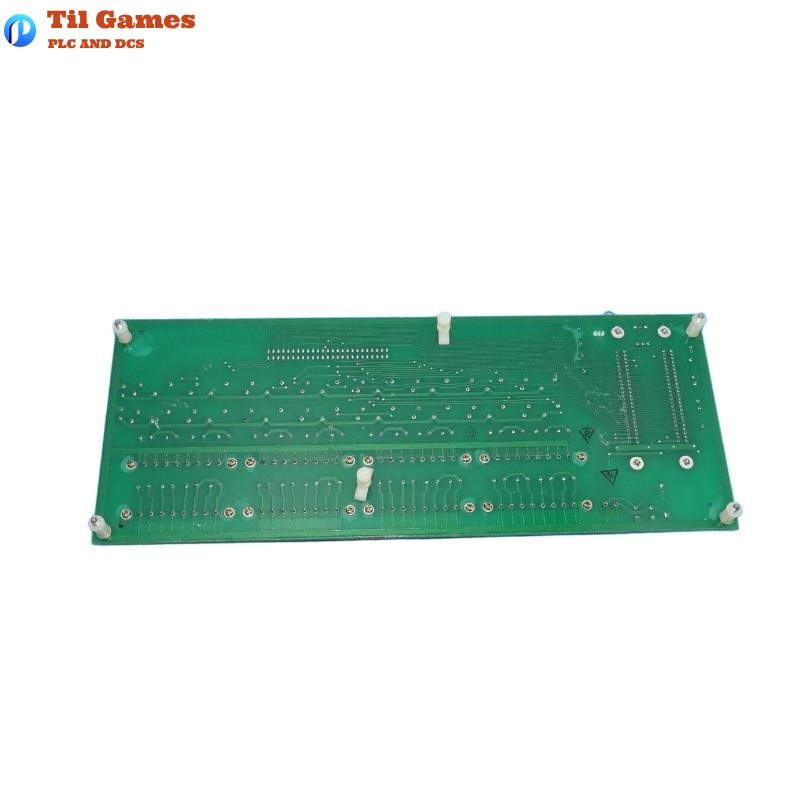

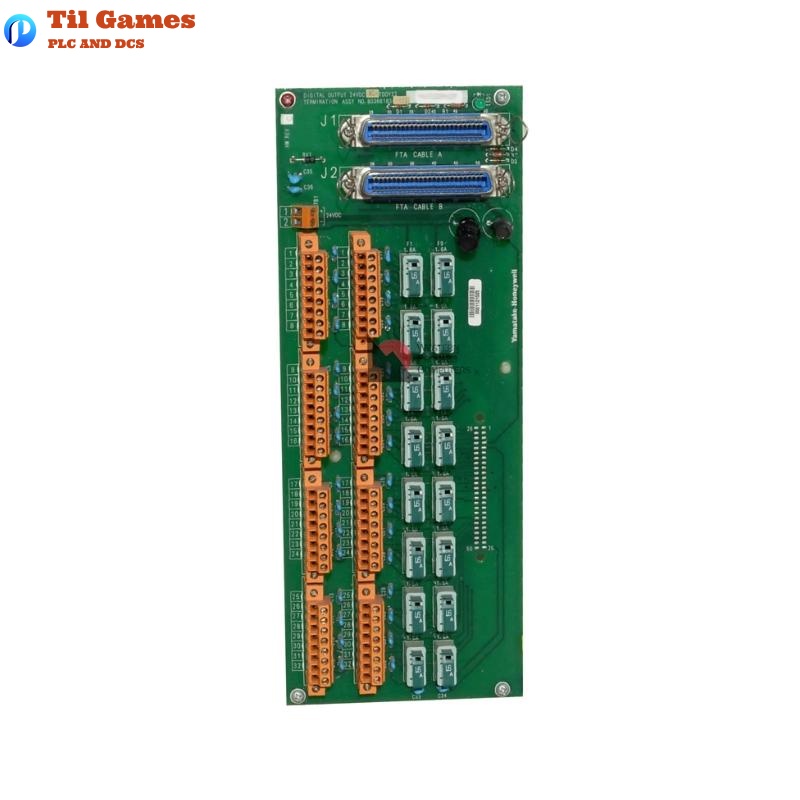

| Model Number | MC-TDOY22 / 51204162-175 |
| Output Type | Digital Output |
| Number of Channels | 32 channels |
| Voltage Type | 24 VDC |
| Output Mode | Configurable: Latched, Pulsed, PWM |
| Output Readback | Supported |
| Redundancy Support | Supports one-to-one redundancy |
| Interface Type | Connected via FTA to control systems |
| Isolation | Optical, 1500 VAC RMS or ±1500 VDC |
| Dimensions | 107 × 50 × 20 mm |
| Weight | 0.608 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the application of the MC-TDOY22 module?
A1: It is used in process control systems for digital outputs, such as controlling relays, indicators, and actuators.
Q2: How many digital outputs does the MC-TDOY22 support?
A2: The module provides 32 individually configurable digital output channels.
Q3: Does the module support output state readback?
A3: Yes, each output point supports readback to confirm execution.
Q4: Is redundancy supported?
A4: Yes, it supports one-to-one redundancy configuration for enhanced system reliability.
Q5: What is the default output action on failure?
A5: It can be configured to either hold the last state or go unpowered, depending on system settings.
Q6: What control systems is the module compatible with?
A6: It is compatible with Honeywell TPS systems, including PM, APM, and HPM controllers.
Q7: Does the module provide electrical isolation?
A7: Yes, output circuits are isolated to 1500 VAC RMS or ±1500 VDC for safety.
Q8: What are the dimensions and weight of the module?
A8: The module measures 107×50×20 mm and weighs 0.608 kg.
