Technical Specifications
| Parameter | Specification |
|---|---|

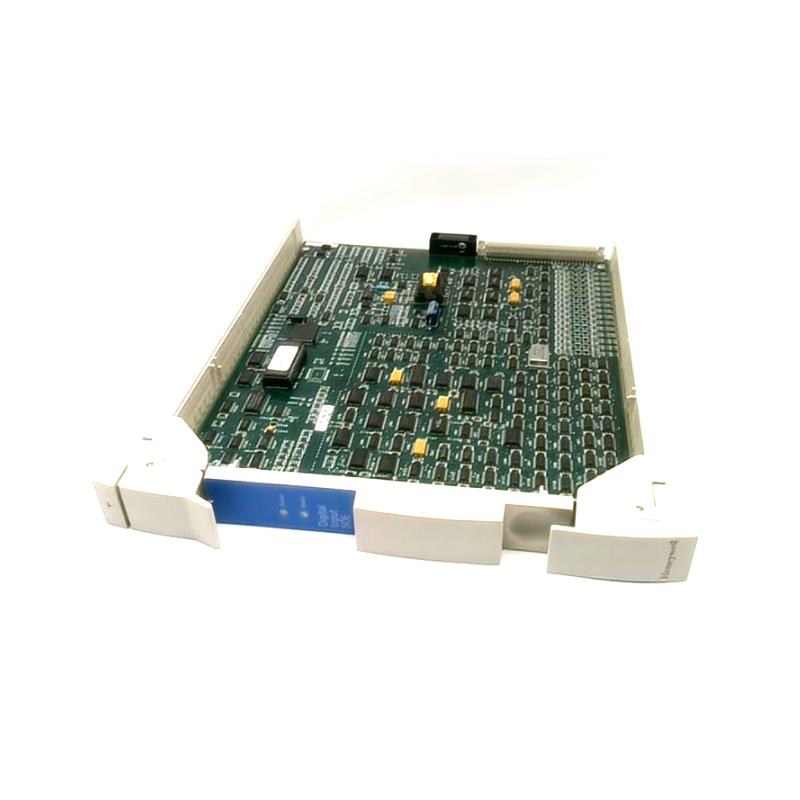

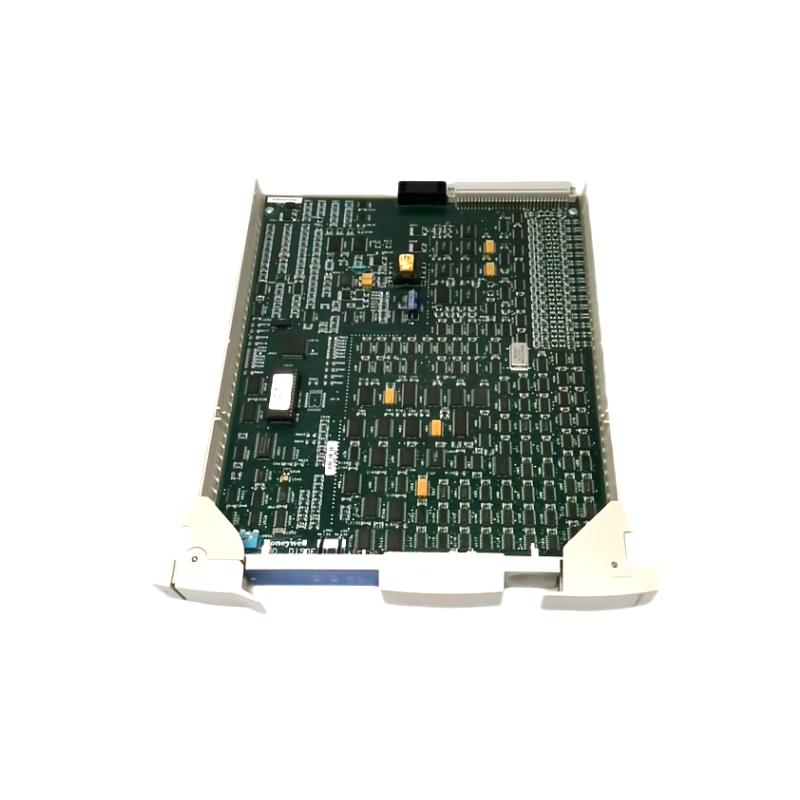

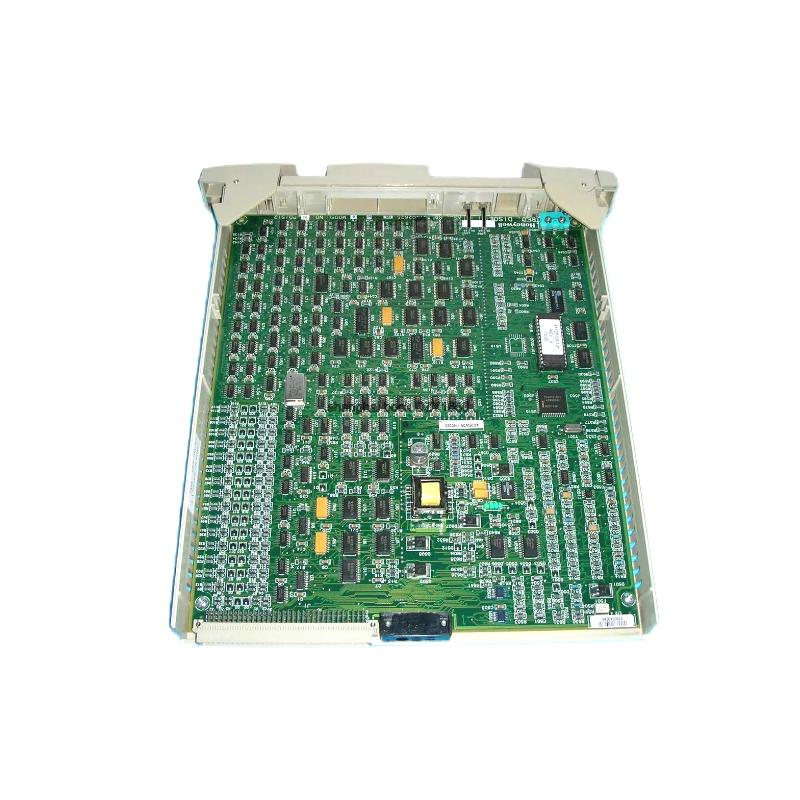

| Model | MU-PDIS12 |
| Function | Digital Input Processor for Sequence of Events (SOE) |
| Input Channels | 32 |
| Input Voltage Options | 24 Vdc, 120 Vac, 125 Vdc, 240 Vac (depends on FTA selection) |
| Galvanic Isolation | 1500 Vac rms or ±1500 Vdc |
| Isolation Method | Optical |
| Accumulated Input Frequency | DC to 15 Hz (only for DC version) |
| Sequence of Events Resolution | 1 ms |
| Input Delay Time (max) | 2.0 ms (DC), 25 ms (AC) |
| Sense Current (ON state) | Min. 4.5 mA (24 Vdc), 3.5 mA (120 Vac), 2.2 mA (240 Vac) |
| Sense Current (OFF state) | Max. 2.8 mA (24 Vdc), 1.5 mA (120 Vac), 1.0 mA (240 Vac) |
| Operating Frequency Range | 47–63 Hz (for AC inputs) |
| Dimensions (W x D x H) | 370 x 26 x 300 mm |
| Weight | 1.21 kg |
| Applicable Controllers | APM, HPM |
| Redundancy Option | Supported (1-to-1 redundant configuration) |
| Compliance | ANSI/IEEE C37.90.1-1978 (surge protection) |
FAQ
FAQ
Q1: What is the main purpose of the MU-PDIS12 module?
A1: It is used for high-speed event detection in industrial control systems with 1 ms resolution.
Q2: How many input channels does the MU-PDIS12 support?
A2: The module supports 32 digital input channels.
Q3: Is the module compatible with both AC and DC signals?
A3: Yes, the input voltage type depends on the selected FTA – available options include 24 Vdc, 120 Vac, 125 Vdc, and 240 Vac.
Q4: What is the timestamp resolution for Sequence of Events (SOE) logging?
A4: The MU-PDIS12 provides a timestamp resolution of 1 millisecond.
Q5: Can the MU-PDIS12 be configured in a redundant setup?
A5: Yes, one-on-one I/O redundancy is supported for high availability.
Q6: What is the maximum permissible input frequency?
A6: For DC inputs, the maximum frequency is 15 Hz.
Q7: What kind of isolation does the MU-PDIS12 use?
A7: It uses optical isolation with a rating of 1500 Vac rms or ±1500 Vdc.
Q8: What systems is this module intended for use with?
A8: It is designed for use with Honeywell’s Advanced Process Manager (APM) and High-Performance Process Manager (HPM).
