Technical Specifications
| Parameter | Description |
|---|---|

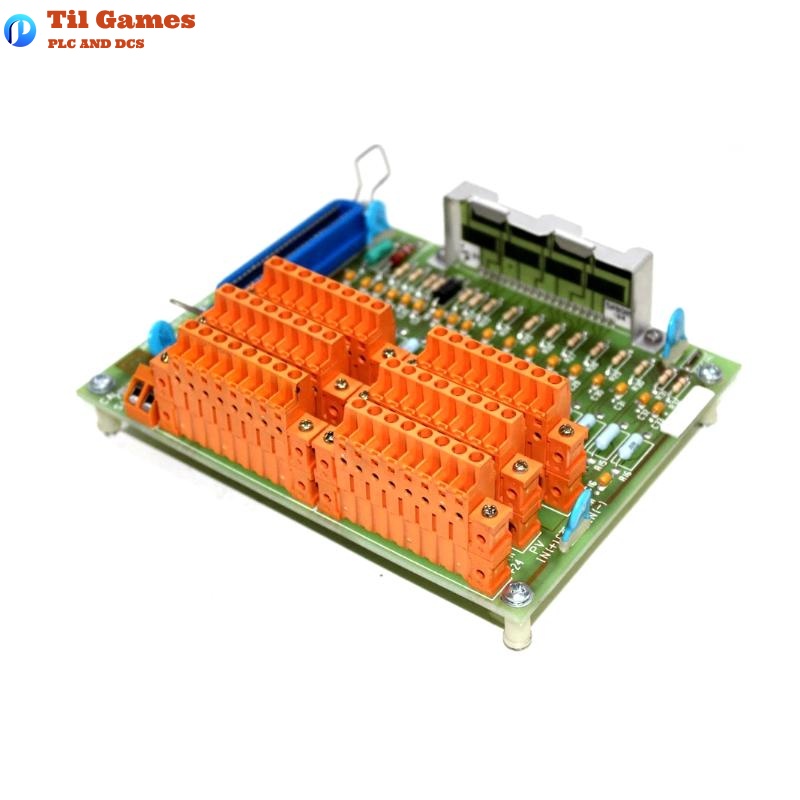

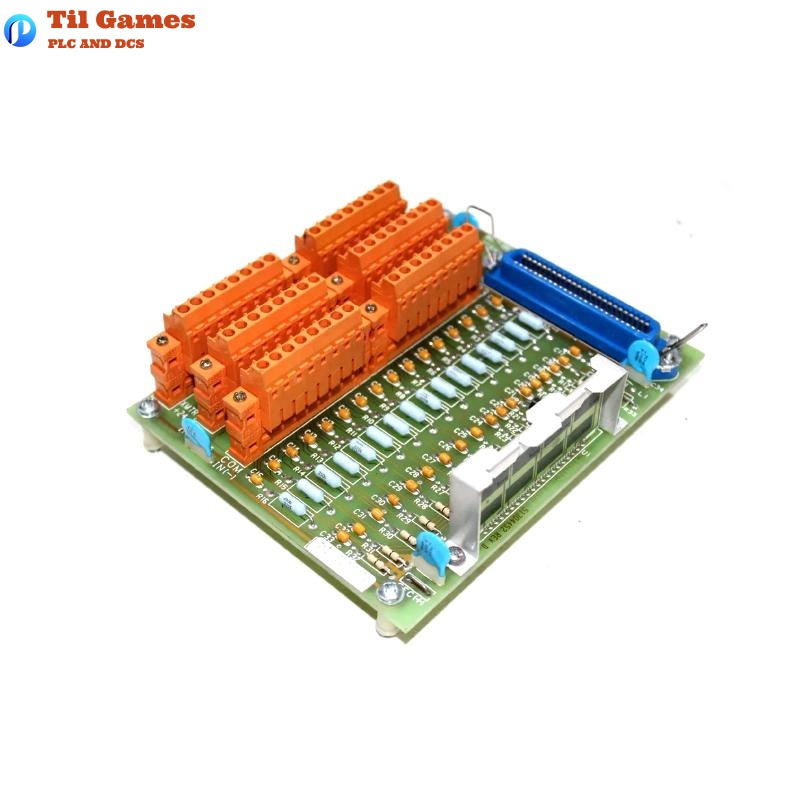

| Model | MU-TAIH02 |
| Part Number | 51304453-100 |
| Type | High Level Analog Input / Smart Transmitter Interface Terminal Assembly |
| Terminal Type | Compression terminal |
| Number of Channels | 16 channels |
| Mounting Size | Size A (for A-type mounting channel) |
| Dimensions | 26 × 242 × 175 mm |
| Weight | 0.45 kg |
| Connector | Two 50-pin IOP redundant connectors with auxiliary output |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +80°C |
| Compatible Wire | 0.3-3.5 mm² (12-22 AWG) |
| Certifications | Available for both non-CE and CE compliant types |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input signals does the MU-TAIH02 support?
A1: This terminal assembly supports 16 high-level analog input channels.
Q2: What type of terminals does it use?
A2: It uses compression-type terminals for easy field wiring and maintenance.
Q3: Does the MU-TAIH02 support IOP redundancy?
A3: Yes, it features two 50-pin IOP cable interfaces to support dual IOP modules for redundancy.
Q4: What installation environment is suitable for MU-TAIH02?
A4: It is suitable for installation in standard industrial cabinets or NEMA 12 enclosures using size A mounting channels and should be properly grounded.
Q5: What are the dimensions and weight of the product?
A5: The dimensions are 26 × 242 × 175 mm, and the weight is 0.45 kg.
Q6: What is the supported wire size?
A6: It supports wire sizes from 0.3 to 3.5 mm² (12-22 AWG).
Q7: What systems can the MU-TAIH02 be used with?
A7: It is compatible with Honeywell TPS series High-Performance Process Managers and suitable for analog input/smart transmitter applications.
Q8: Is there an option for conformal coating protection?
A8: Yes, conformal coating is optional. The availability depends on the specific ordering model.
