Technical Specifications
| Parameter | Specification |
|---|---|

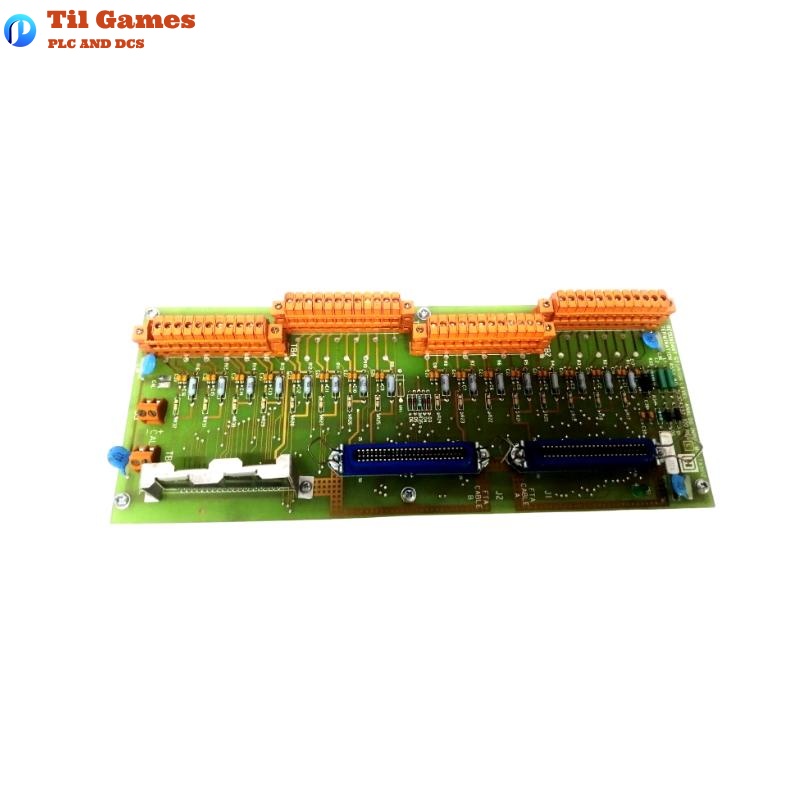

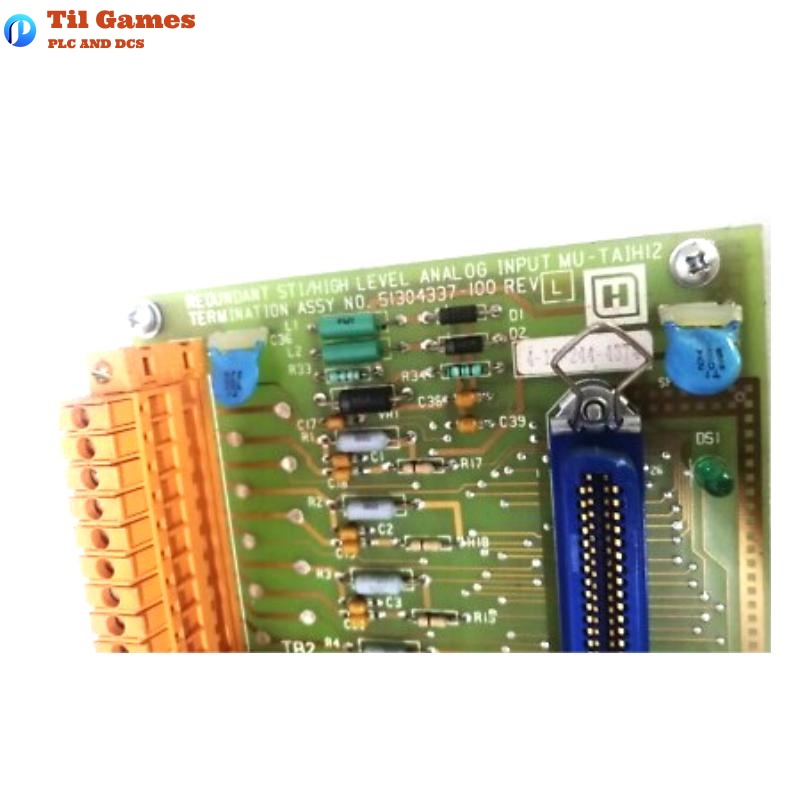

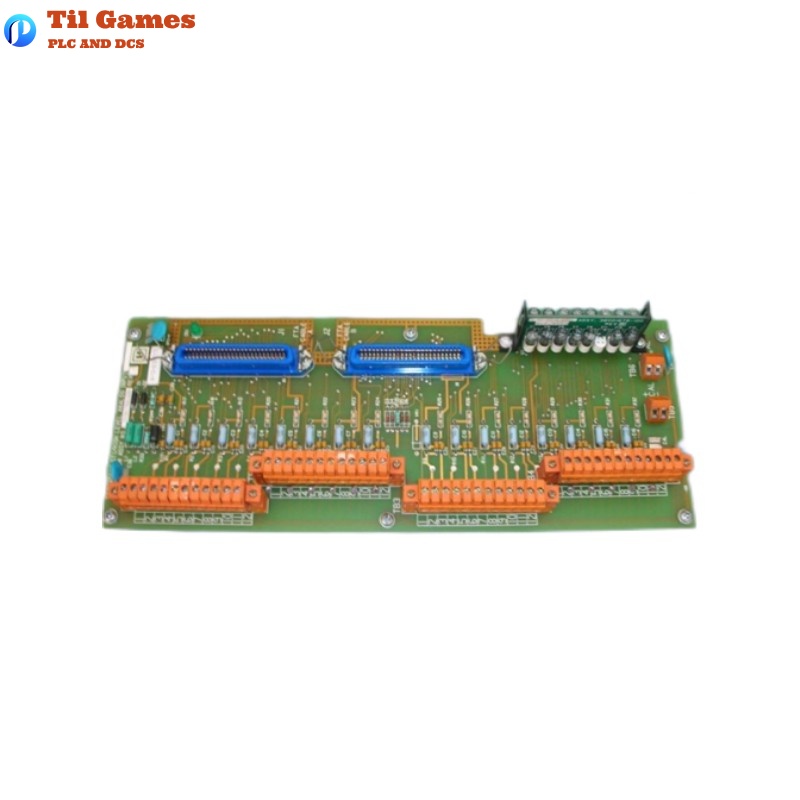

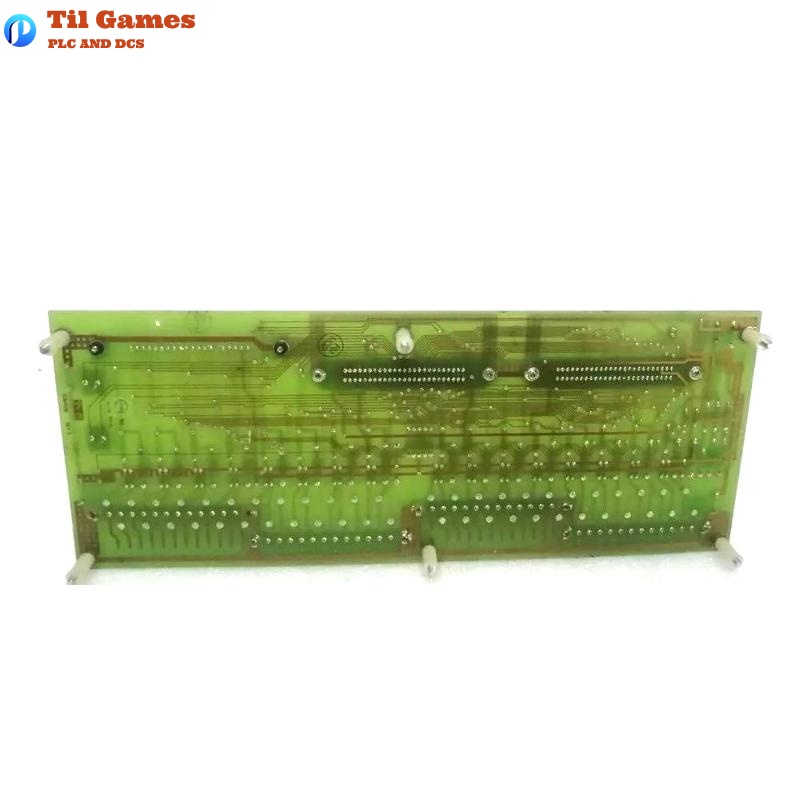

| Model | MU-TAIH12 |
| Input Channels | 16 differential input channels |
| Input Type | Voltage, current (2-wire or self-powered transmitters) |
| Input Range | 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω) |
| Input Impedance (Voltage) | >10 MΩ powered |
| Common Mode Voltage | -6 to +5 V peak (dc to 60 Hz) |
| Common Mode Rejection Ratio | 70 dB (dc to 60 Hz, 500 Ω imbalance) |
| Normal Mode Rejection Ratio | 32 dB at 60 Hz |
| Maximum Input Voltage | ±30 V (no damage, any input referenced to common) |
| A/D Converter Resolution | 16 bits (14 bits used) |
| Input Scan Rate | 4 samples per second per channel, all channels within 250 ms |
| Hardware Accuracy | ±0.075% full-scale (23.5°±2°C); ±0.15% full-scale (0–50°C) |
| Crosstalk (dc to 60 Hz) | 60 dB |
| Normal Mode Filter Response | Single-pole RC, -3 dB @ 1 Hz |
| Transmitter Power Conditioning | Resistor current limited, 145 Ω (not fused), Class 1 Div 2 |
| Redundancy | No input scan cycles missed or delayed during failover |
| Hardware Accuracy (Failover) | No effect nominally, ±2% of FS max (at 0V CMV) |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 |
| Dimensions | 120 x 80 x 50 mm |
| Weight | 0.55 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog input channels does the MU-TAIH12 support?
A1: It supports 16 differential analog input channels.
Q2: What types of input signals are supported?
A2: It supports voltage and current signal types, including 2-wire or self-powered transmitters.
Q3: What are the typical input ranges for analog signals?
A3: The typical ranges are 0–5V, 1–5V, 0.4–2V, and 4–20mA (through a 250Ω resistor).
Q4: Does the device support redundancy?
A4: Yes, it features redundancy with no missed or delayed input scan cycles during switchover.
Q5: What is the hardware accuracy of the device?
A5: The hardware accuracy is ±0.075% full-scale at 23.5±2°C, and ±0.15% full-scale from 0 to 50°C.
Q6: What is the input impedance?
A6: The voltage input impedance is greater than 10 MΩ.
Q7: What are the device’s dimensions and weight?
A7: The dimensions are 120 x 80 x 50 mm, and the weight is 0.55 kg.
Q8: What protection standards does the device meet?
A8: It features surge withstand capability compliant with ANSI/IEEE C37.90.1-1978.
