Technical Specifications
| Parameter | Specification |
|---|---|

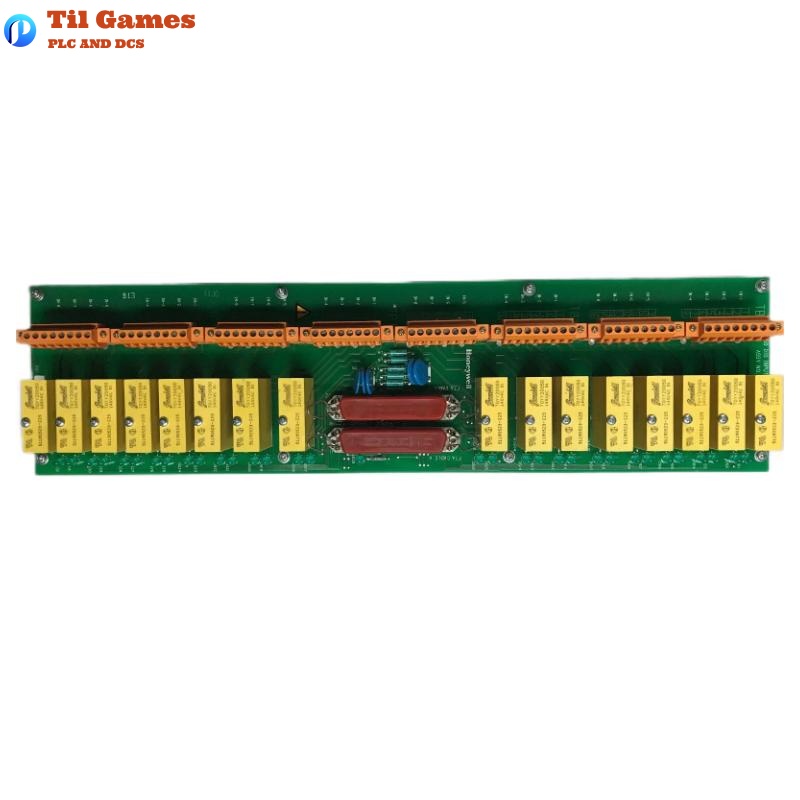

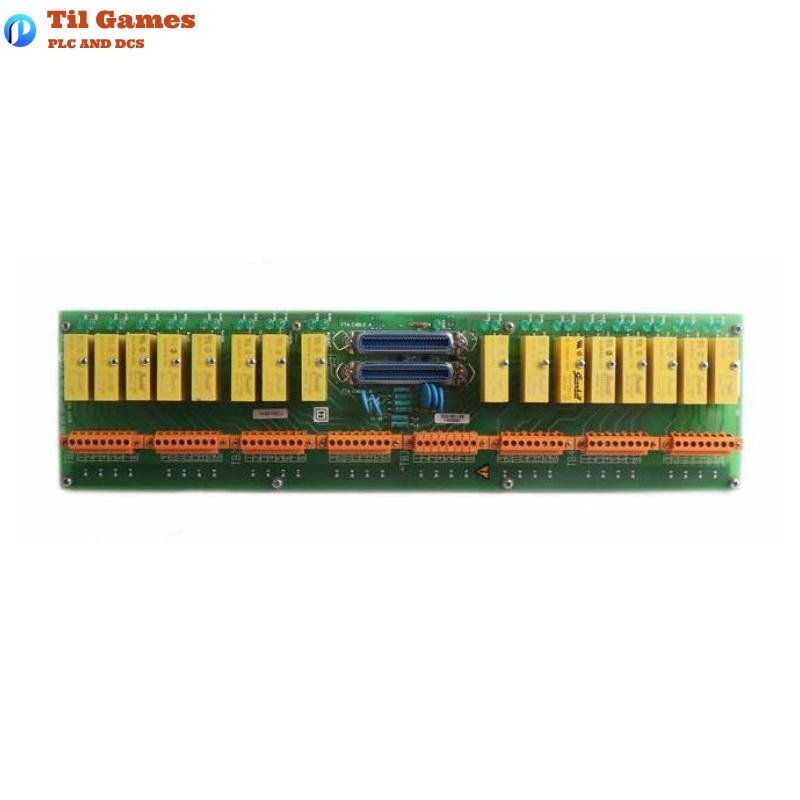

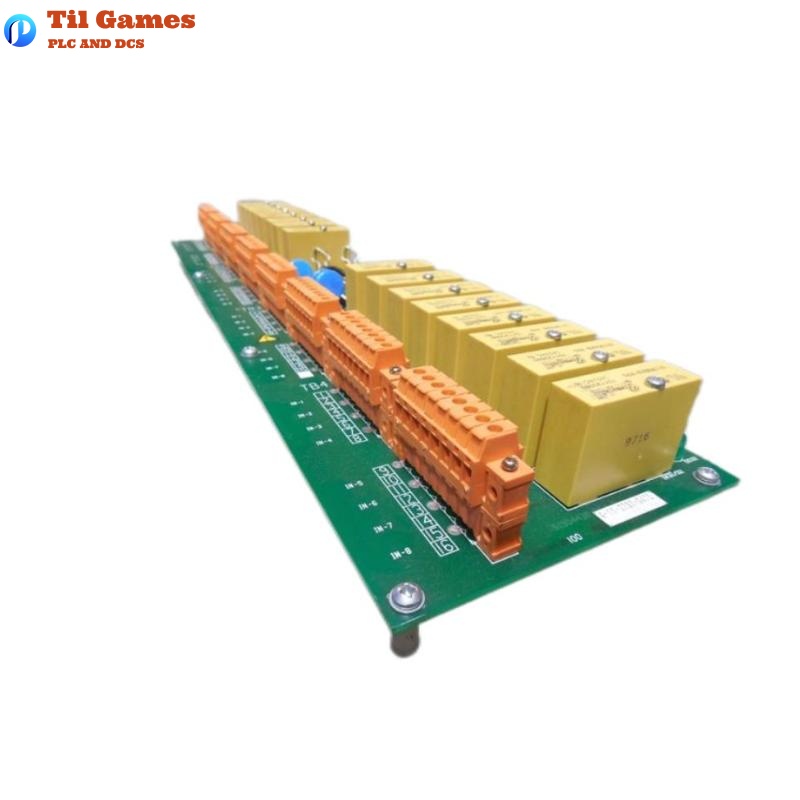

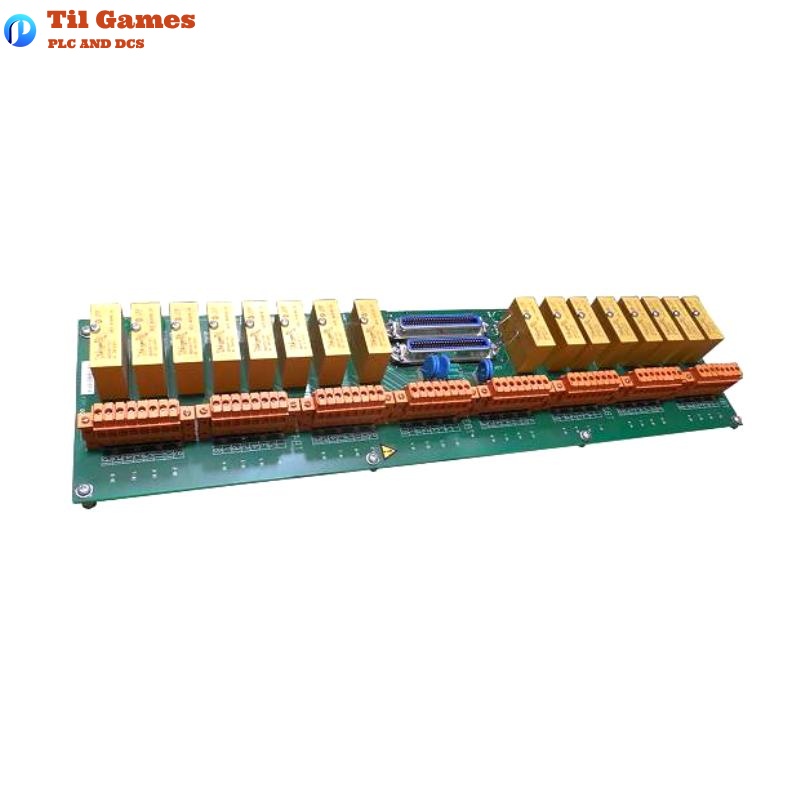

| Product Model | MU-TDIA12 51304439-125 |
| Input Channels | 32 |
| Input Voltage Range | 90–132 Vac rms |
| Input Frequency | 47–63 Hz |
| Isolation | 1500 Vac rms or ±1500 Vdc (field to system) |
| Isolation Technique | Optical |
| ON State Current | ≥ 3.5 mA |
| OFF State Current | ≤ 1.5 mA |
| Pickup Voltage (ON) | ≥ 90 Vac rms |
| Dropout Voltage (OFF) | ≤ 25 Vac rms |
| Input Delay (Filter + Isolation) | ≤ 25 ms |
| Surge Withstand | ANSI/IEEE C37.90.1-1978 |
| Dimensions | 462.3 x 120.7 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What is the input voltage range supported by MU-TDIA12?
A1: The input voltage range is 90 to 132 Vac rms.
Q2: How many input channels does the MU-TDIA12 provide?
A2: The module supports 32 input channels.
Q3: What isolation level is provided between field and system?
A3: The isolation is 1500 Vac rms or ±1500 Vdc, using optical isolation.
Q4: What is the required ON-state input current?
A4: The ON-state input current is at least 3.5 mA.
Q5: What is the input frequency range?
A5: The supported input frequency range is 47 to 63 Hz.
Q6: What is the maximum input delay time?
A6: The maximum delay through the filter and isolation is 25 milliseconds.
Q7: What are the physical dimensions and weight of the MU-TDIA12?
A7: The dimensions are 462.3 x 120.7 mm, and the weight is 0.45 kg.
Q8: What standards does the MU-TDIA12 meet for surge protection?
A8: It meets the ANSI/IEEE C37.90.1-1978 standard for surge withstand.
