Technical Specifications
| Parameter | Description |
|---|---|

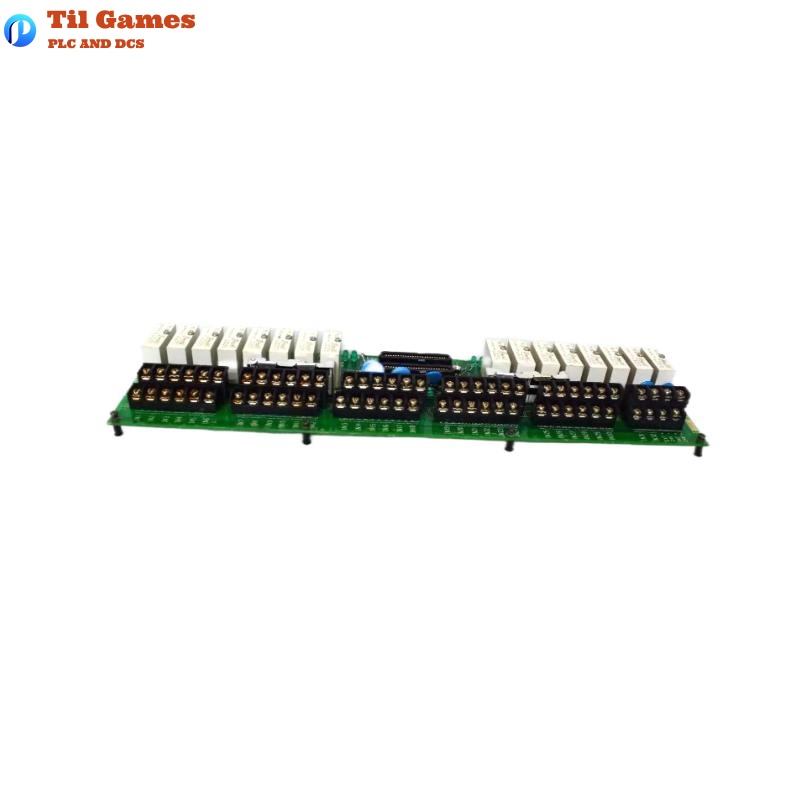

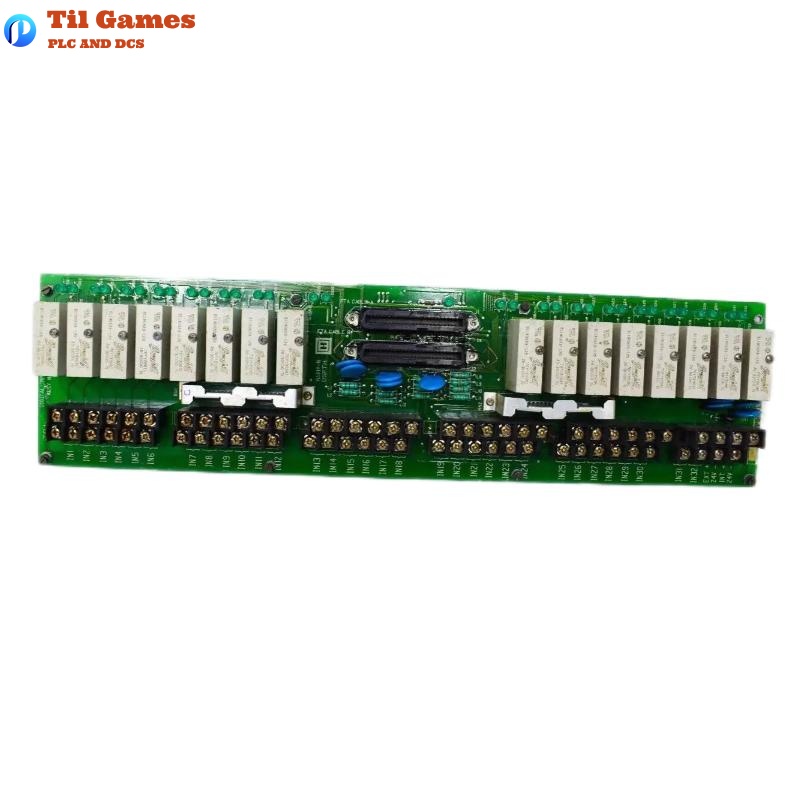

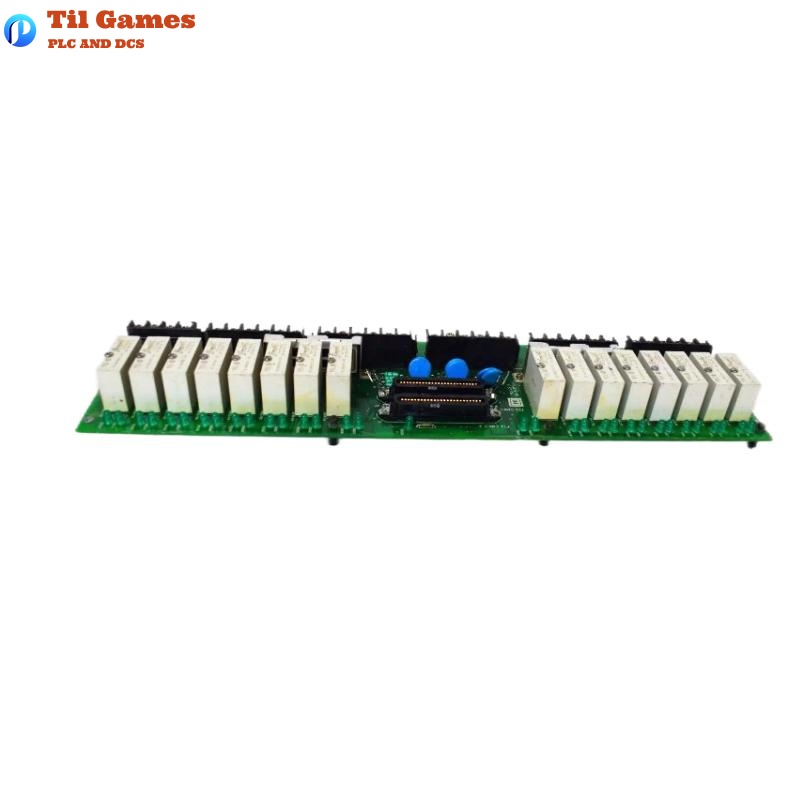

| Model | MU-TDID52 51304441-225 |
| Number of Channels | 32 channels |
| Input Type | Digital Input (24 VDC) |
| Input Voltage Range | 20-30 VDC |
| Sense Current (ON) | Minimum 4.5 mA |
| Sense Current (OFF) | Maximum 2.8 mA |
| Pickup Voltage | Minimum 20 VDC |
| Dropout Voltage | Maximum 10 VDC |
| Input Frequency | DC ~ 15 Hz |
| Isolation Method | Optical Isolation |
| Channel Isolation Voltage | 1500 Vac rms or ±1500 VDC |
| Absolute Input Delay | Maximum 2.0 ms |
| Dimensions | 462.3 x 120.7 mm |
| Weight | 0.68 kg |
| Application Environment | Industrial Control Systems |
| Certification | ANSI/IEEE C37.90.1-1978 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main application of the MU-TDID52 module?
A1: This module is used in Honeywell process control systems for 24VDC digital signal acquisition and input, suitable for a variety of industrial automation applications.
Q2: How many input channels does each module support?
A2: Each MU-TDID52 module supports 32 independent digital input channels.
Q3: How is the electrical isolation performance of the module?
A3: The module uses optical isolation with a channel-to-system isolation voltage of 1500 Vac rms or ±1500 VDC, ensuring safe and reliable signal transmission.
Q4: What is the supported input voltage range?
A4: The supported input voltage range is 20-30 VDC, suitable for standard 24VDC digital inputs.
Q5: What is the channel switching or signal response time?
A5: The maximum absolute input delay is 2.0 milliseconds, meeting the fast response requirements of industrial control.
Q6: What are the dimensions and weight of the product?
A6: The module dimensions are 462.3 x 120.7 mm, and the weight is 0.68 kg, suitable for cabinet installation.
Q7: Does the product have any certification standards?
A7: The product complies with ANSI/IEEE C37.90.1-1978, providing industrial-grade immunity.
Q8: Which control systems are compatible with this module?
A8: The module is compatible with Honeywell PM, APM, and HPM industrial process management control systems.
