Technical Specifications
| Parameter | Description |
|---|---|

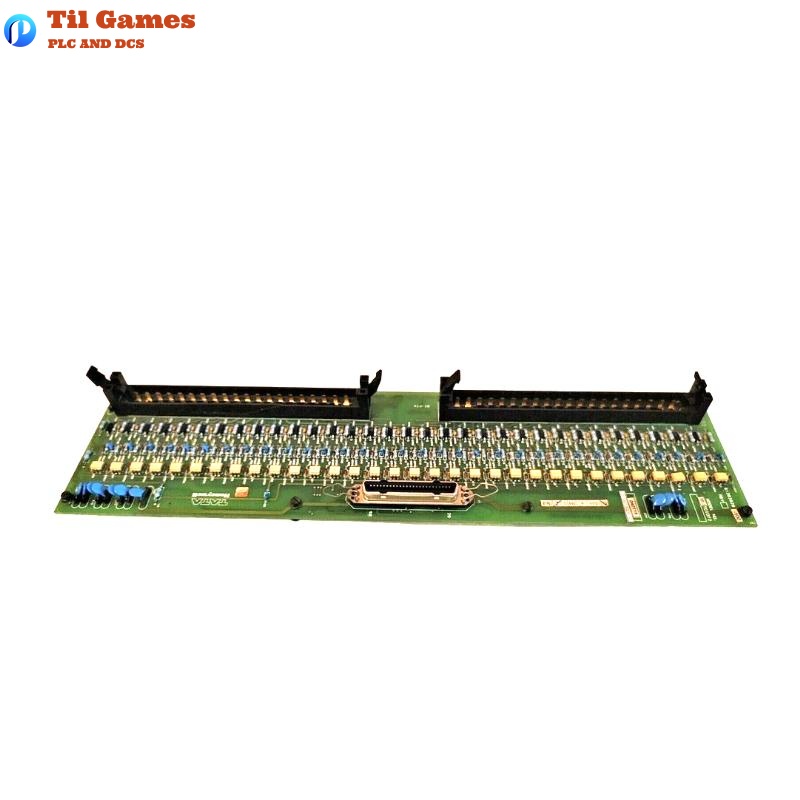

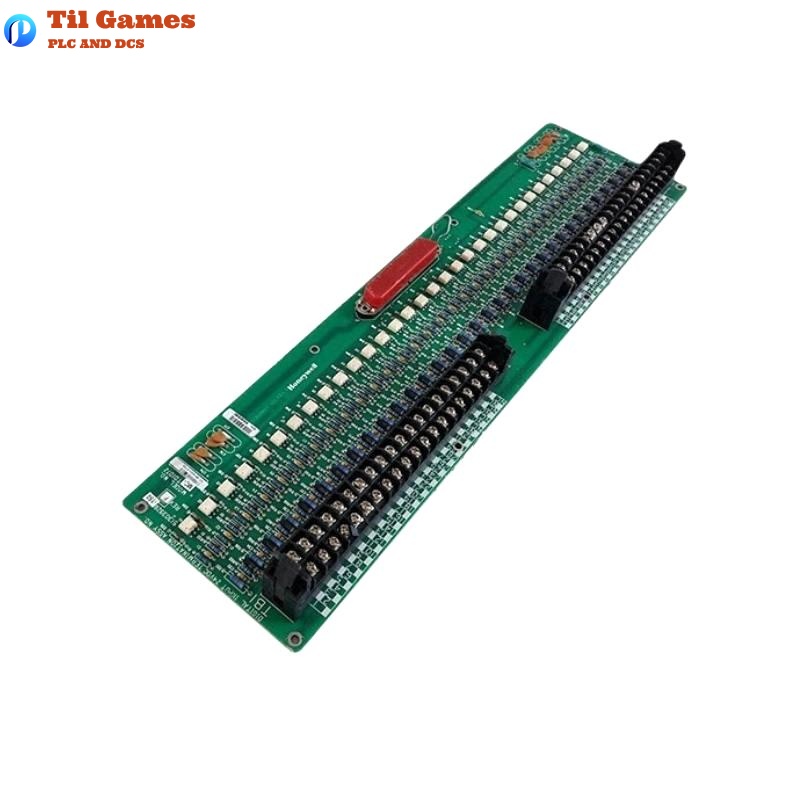

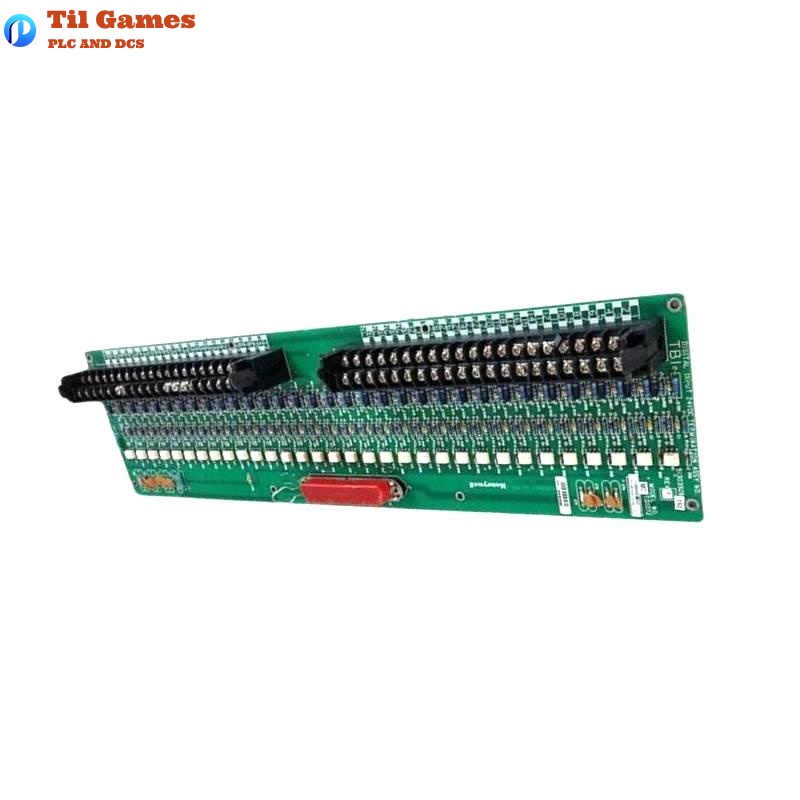

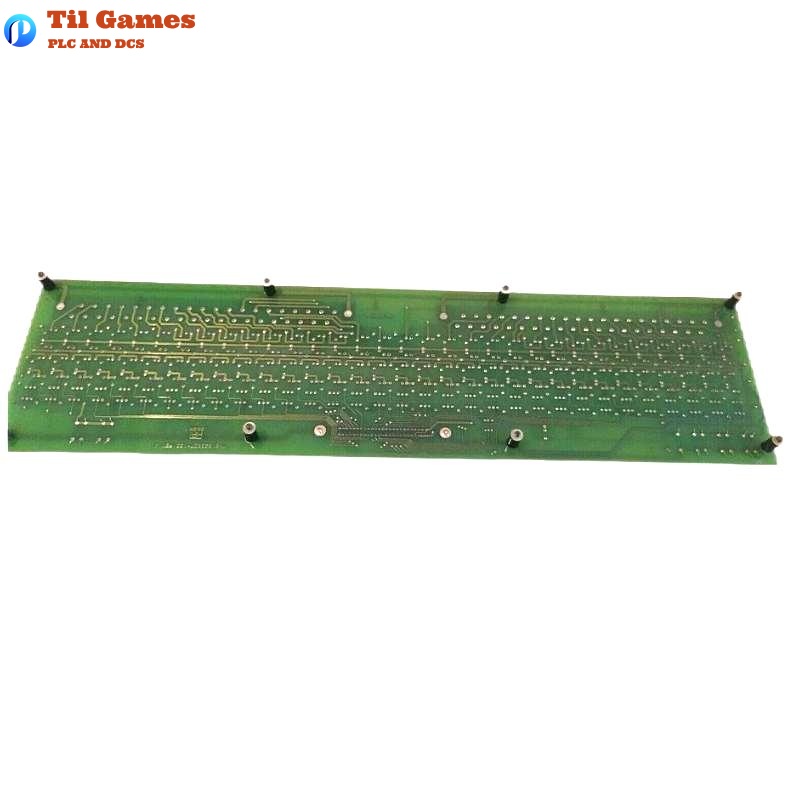

| Model Number | MU-TDID72 51303928-100 |
| Input Channels | 32 |
| Input Type | Digital Input (24 VDC) |
| Voltage Range | 18~30 VDC |
| Input Current (ON) | ≥12 mA |
| Input Current (OFF) | ≤4.3 mA |
| Isolation Method | Optical Isolation |
| Channel-to-Channel Isolation | 1500 VAC RMS or ±1500 VDC |
| Accumulated Input Frequency | DC~15 Hz |
| Input Delay | ≤3.6 ms |
| Guaranteed ON Resistance | ≤100 Ω |
| Guaranteed OFF Resistance | ≥45 kΩ |
| Dimensions | 120 × 80 × 50 mm |
| Weight | 0.5 kg |
| Operating Temperature | 0 ~ 50 ℃ |
| Storage Temperature | -40 ~ 70 ℃ |
| System Compatibility | Honeywell TPS/PM/APM/HPM |
| Mounting Method | FTA (Field Termination Assembly), DIN Rail |
| Isolation Technology | Opto-coupler |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the MU-TDID72 support?
A1: This module supports 32 digital input channels.
Q2: What is the input voltage range for the module?
A2: The input voltage range is 18~30 VDC.
Q3: What type of isolation is used for the input signals?
A3: Each channel uses optical isolation to ensure system safety.
Q4: What are the ON and OFF state input currents?
A4: ON state current is not less than 12 mA, OFF state current is not more than 4.3 mA.
Q5: Which Honeywell systems is this module compatible with?
A5: It is compatible with Honeywell TPS, PM, APM, and HPM systems.
Q6: What is the maximum supported input frequency?
A6: Supports input frequency from DC up to 15 Hz.
Q7: What are the physical dimensions and weight of the MU-TDID72?
A7: The module measures 120 × 80 × 50 mm and weighs 0.5 kg.
Q8: What are typical application scenarios for this module?
A8: It is mainly used for field digital signal acquisition in industrial automation systems, such as status input detection.
