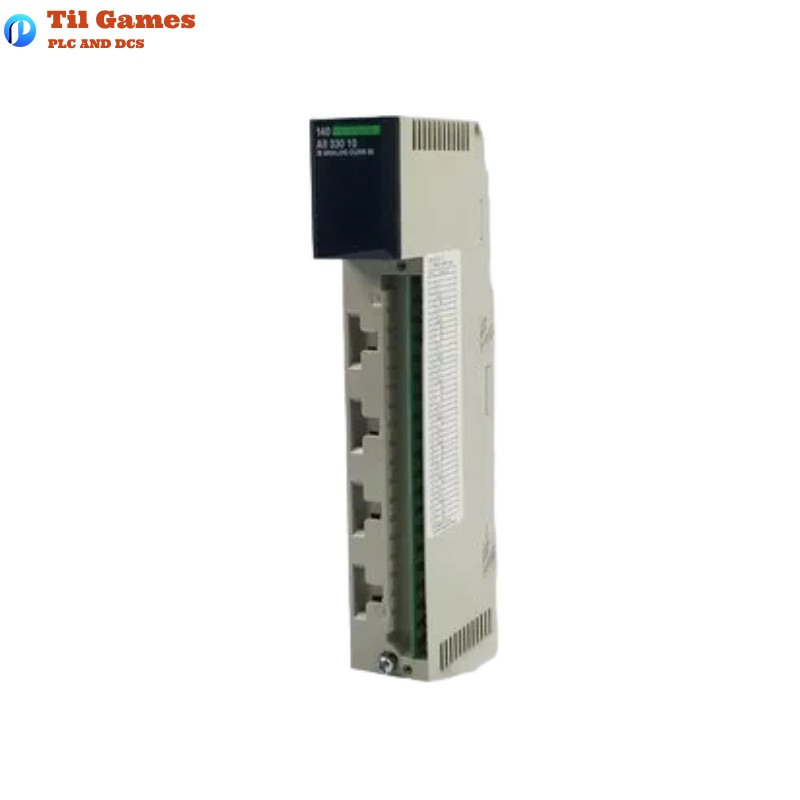

Technical Specifications – Schneider 140AII33010C
| Parameter | Specification |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product Type | Intrinsically Safe Current Input Module |
| Software Compatibility | Concept V2.2 and above, ProWORX, Unity Pro |
| Filter Type | Single low-pass input filter -3 dB at 15 Hz ±20% |
| Number of Analog Inputs | 8 |
| Analog Input Ranges | 0–25 mA, 0–20 mA, 4–20 mA |
| Input Resolution | 0–25000 counts (0–25 mA) |
| 0–20000 counts (0–20 mA) | |
| 0–16000 counts (4–20 mA) | |
| 0–4095 counts (4–20 mA alternate) | |
| Absolute Maximum Input | 25 mA internally limited |
| Input Impedance | 100 Ohm ±0.1% |
| Accuracy (at 25°C) | ±0.05% typical, ±0.1% max of full scale |
| Accuracy Drift (Temperature) | ±0.0025% typical, 0.005% max of full scale/°C |
| Linearity Error | 0.003% of full scale |
| Common Mode Rejection | > 100 dB at 50/60 Hz |
| Update Time | 750 ms |
| Channel-to-Bus Isolation | 2500 V DC for 1 minute, 1780 V AC (47–63 Hz) |
| Fault Detection | Broken wire detection (4–20 mA) |
| Power Dissipation | 7.5 W |
| Hot Swapping | Not allowed (per intrinsic safety standards) |
| Protection | Internal fuse |
| Certification Marking | CE, II1 G/D-EEx ia IIC |
| Bus Current Requirement | 1500 mA |
| Module Format | Standard |
| Dimensions | 50 x 165 x 310 mm |
| Weight | 0.8 kg (0.7 lb) |
| Protective Treatment | Conformal coating (Humiseal 1A33) |
| Environmental Standards | EN 50014, EN 50020, EN 50039, EN 50284, EN 50281-1-1, UL 508 |
| Certifications | GOST, C-Tick, SIRA 02ATEX2345X, FM Class 1 Div 2 |
| ESD Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| EMI Resistance | 9.1 V/m (10 V/m), 80–2000 MHz (IEC 801-3) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% (non-condensing) |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
FAQ – Schneider 140AII33010C
Q1: What is the primary function of the 140AII33010C module?
A1: It is used to safely receive intrinsically safe analog current signals from field devices in hazardous areas.
Q2: How many analog inputs are available on this module?
A2: The module provides 8 analog current input channels.
Q3: Can this module be hot-swapped during operation?
A3: No, hot-swapping is not permitted due to intrinsic safety regulations.
Q4: What are the supported analog input ranges?
A4: The module supports 0–25 mA, 0–20 mA, and 4–20 mA input ranges.
Q5: What is the resolution for 0–20 mA input?
A5: It offers 0 to 20000 counts resolution for 0–20 mA input.
Q6: Does the module detect broken wire conditions?
A6: Yes, it includes broken wire detection specifically for 4–20 mA inputs.
Q7: What certifications does the module carry?
A7: Certifications include CE, FM Class 1 Div 2, ATEX (SIRA 02ATEX2345X), GOST, and C-Tick.
Q8: What is the power dissipation of the module?
A8: The module dissipates 7.5 W of power during operation.
