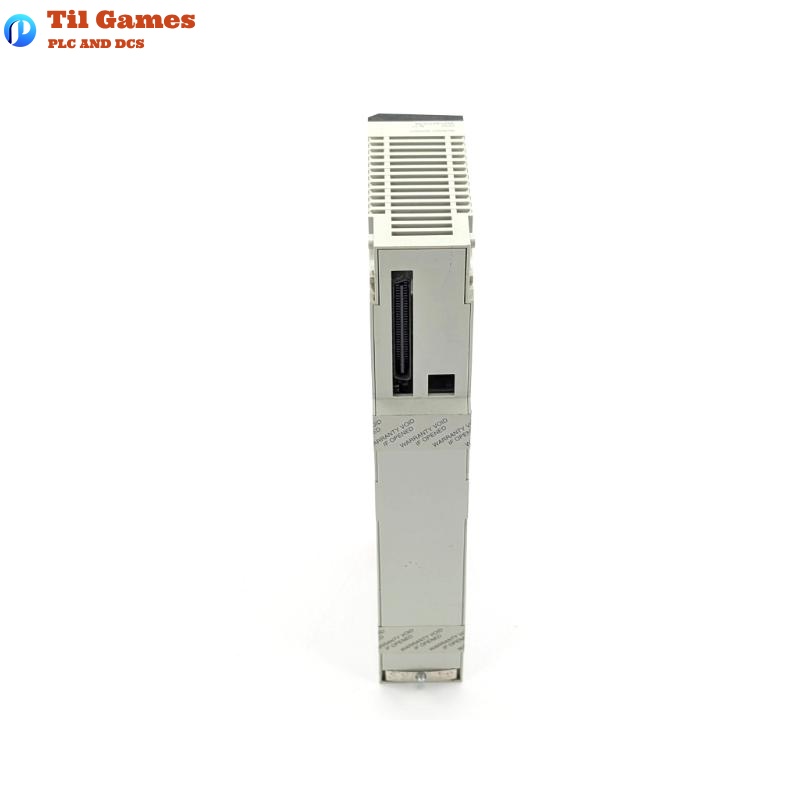

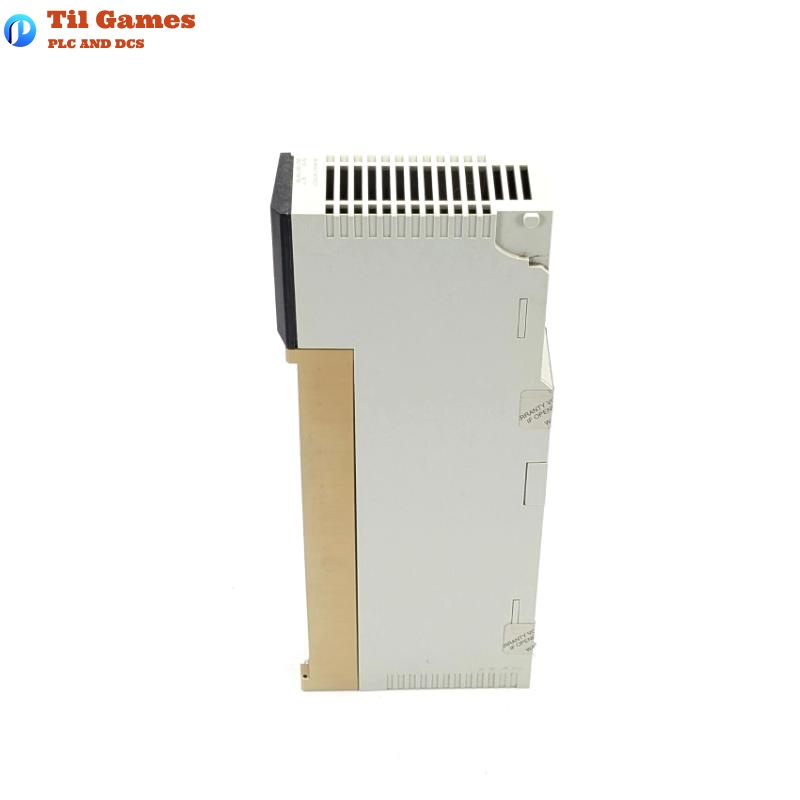

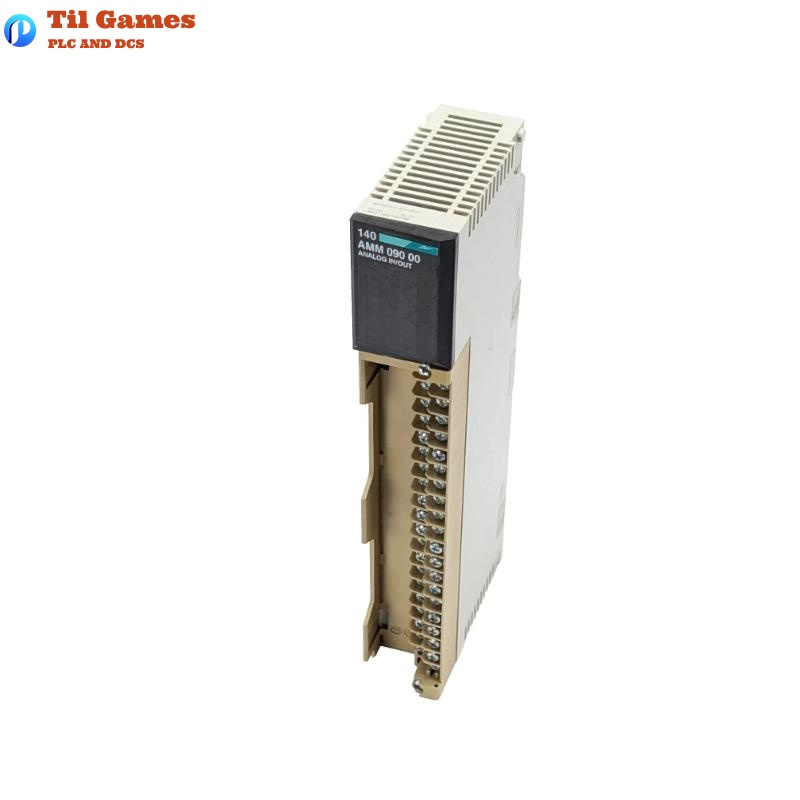

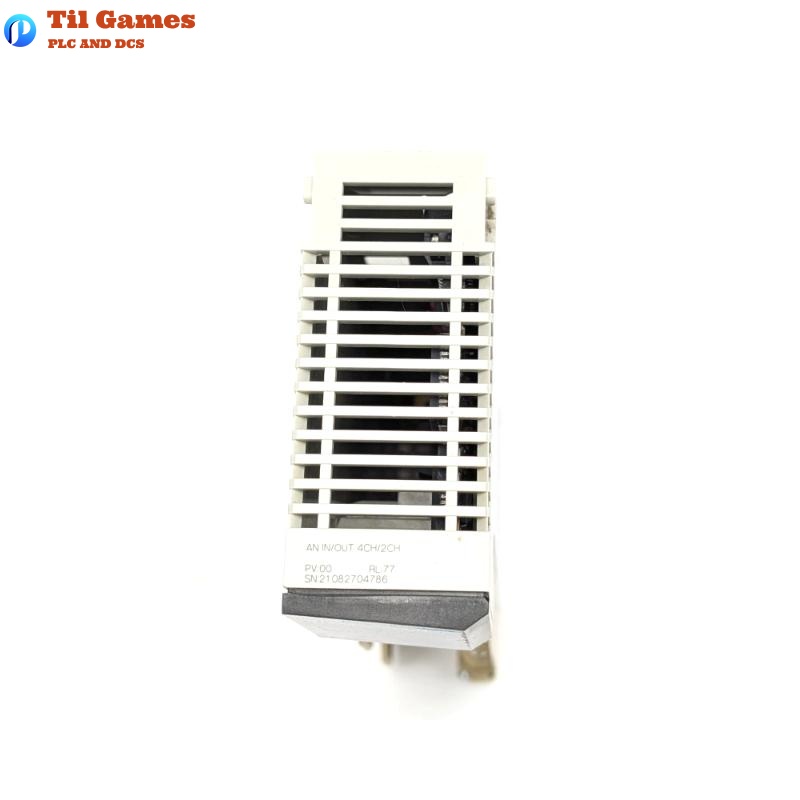

Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Product Type | Analog Input/Output Module |
| Module Format | Standard |
| Analog Input Channels | 4 channels |
| Analog Output Channels | 2 channels |
| I/O Modularity | 6 channels |
| Address Requirement | 2 output words, 5 input words |
| Input Types | Bipolar current ±20 mA (15-bit) Bipolar voltage ±10 V (16-bit) Bipolar voltage ±5 V (15-bit) Unipolar current 0–20 mA (15-bit) Unipolar offset current 4–20 mA (14-bit) Unipolar offset voltage 1–5 V (14-bit) Unipolar voltage 0–10 V (16-bit) Unipolar voltage 0–5 V (15-bit) |
| Output Range | 4–20 mA |
| Output Resolution | 12 bits |
| Input Impedance | >10 MΩ (voltage), >250 Ω (current) |
| Input Filter Type | Single-pole low pass, 21 Hz ±20% |
| Common Mode Rejection | > 80 dB (50/60 Hz) |
| Max Absolute Input | ±25 mA (current), ±50 V (voltage) |
| Offset Drift | ±0.0014% FS max/°C (input) |
| Gain Shift | ±0.002 FS max (input) |
| Loop Voltage | 0–60 V DC with external resistance, 7–30 V DC output circuit |
| Max Voltage Drop | <30 V DC at 20 mA |
| Setting Time | 900 µs ±0.1% of final value |
| Update Time | 320 ms (input), 15 ms (output) |
| Absolute Accuracy | Input: ±0.03% @ 25°C Output: ±0.20% @ 25°C |
| Linearity | Voltage: ±2.4% Current: +2.4%, -9.6% |
| Monotonicity | ±1 LSB input/output |
| Fault Detection | Open circuit, overrange, status byte |
| Channel-to-Channel Isolation | 500 V AC / 750 V DC for 1 minute |
| Bus Isolation | 500 V AC / 750 V DC for 1 minute |
| Input to Output Isolation | 500 V / 750 V for 1 minute |
| Bus Current Requirement | 350 mA |
| Local Indicators | Comm: 1 green LED Fault: 1 red LED Channel on: 6 green LEDs Channel fault: 6 red LEDs |
| Protective Coating | Humiseal 1A33 conformal coating |
| Certifications | CE, FM Class 1 Div 2, UL 508, CSA C22.2 No 142, C-Tick.1 |
| EMC Immunity | 9.1 V/m (IEC 801-3, 80–2000 MHz) |
| Operating Temperature | 0–60 °C (32–140 °F) |
| Storage Temperature | -40–85 °C (-40–185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of analog input signals does the 140AMM09000C support?
A1: It supports 8 types including bipolar and unipolar voltage and current signals, suitable for various industrial sensors.
Q2: Is electrical isolation provided between channels?
A2: Yes, there is 500 V AC or 750 V DC isolation between channels, bus, and between input and output sections.
Q3: What is the output resolution of this module?
A3: It offers 12-bit resolution for analog outputs.
Q4: How well does it resist electromagnetic interference?
A4: It meets IEC 801-3 standard with immunity up to 9.1 V/m (80–2000 MHz), suitable for industrial environments.
Q5: What power requirements does the module have?
A5: The output section requires 7–30 V DC with a maximum voltage drop of less than 30 V at 20 mA.
Q6: What is the update rate for input channels?
A6: Inputs are updated every 320 ms; outputs every 15 ms.
Q7: Does the module have diagnostic features?
A7: Yes, it includes open circuit detection, overrange protection, and output status reporting.
Q8: What environmental conditions is this module rated for?
A8: Operating temperature: 0–60 °C; storage: -40–85 °C; up to 5000 m altitude; 95% RH non-condensing.
