Technical Specifications
| Parameter | Description |
|---|---|

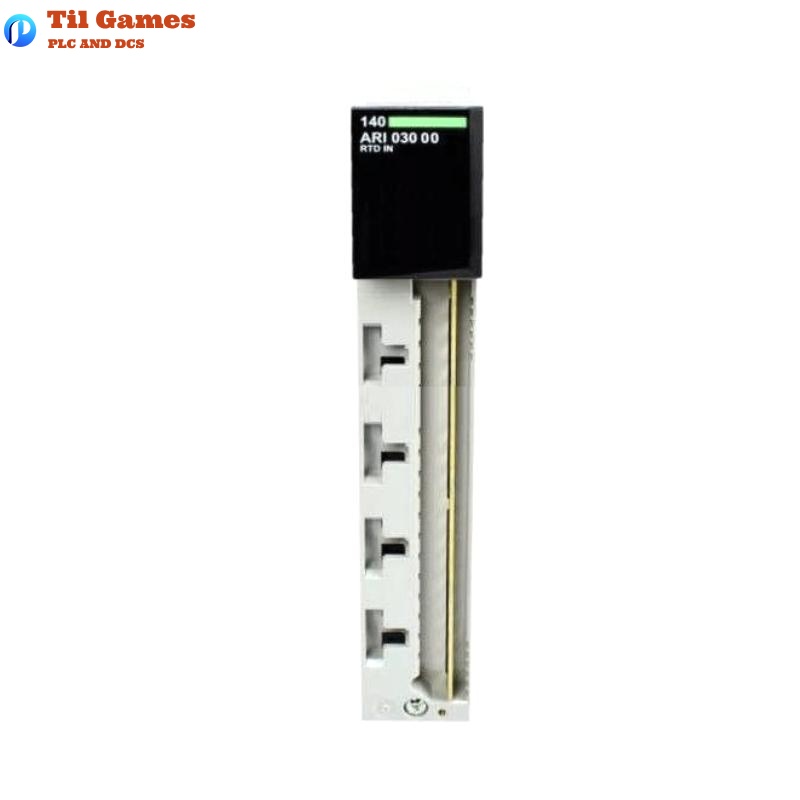

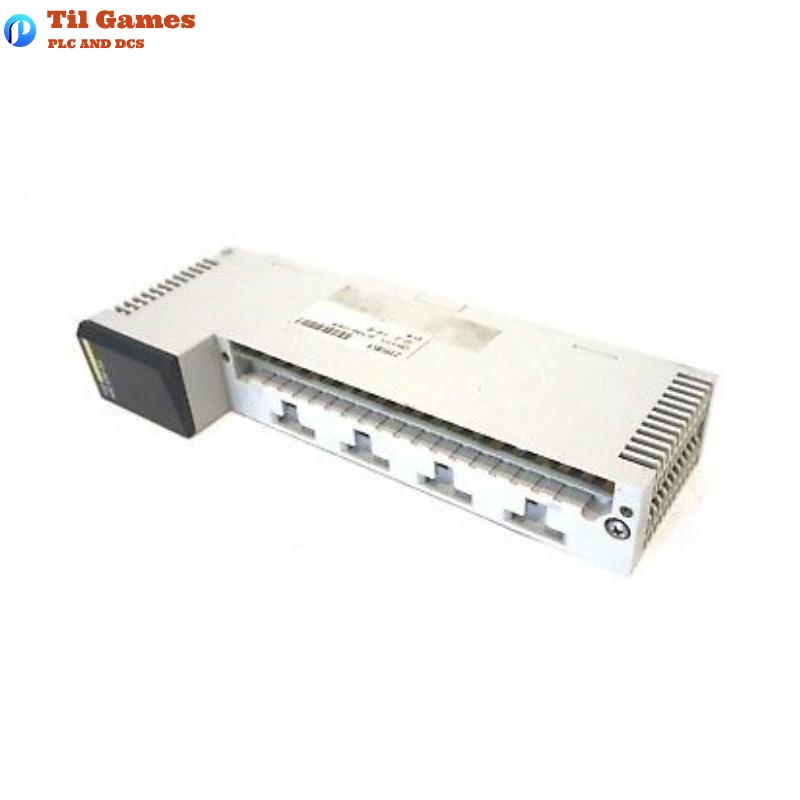

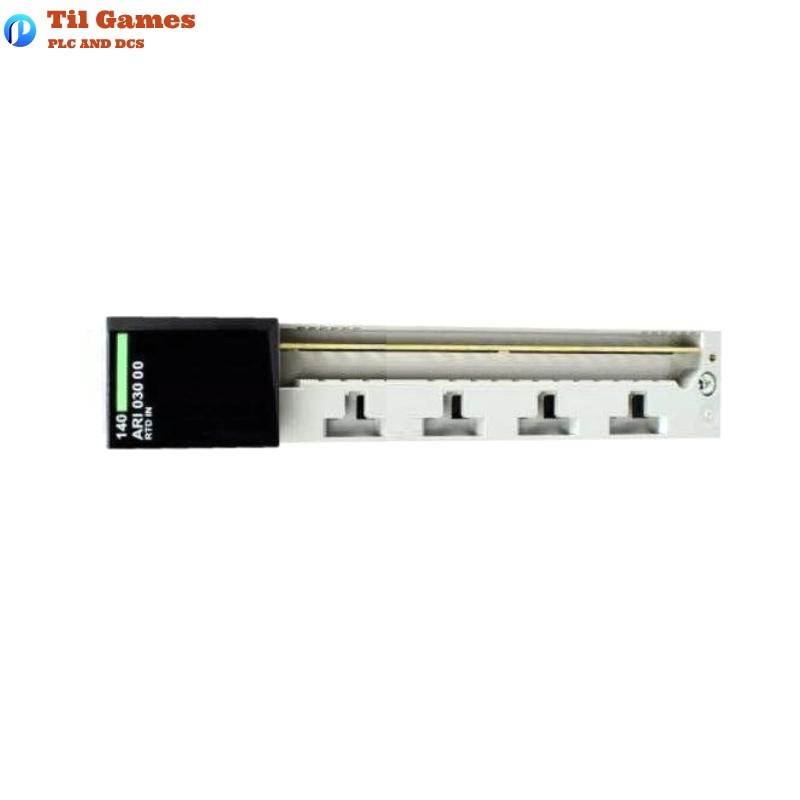

| Product Model | 140ARI03000C |
| Product Type | RTD Input Module |
| Input Type | RTD (e.g., Pt100, Pt1000) |
| Number of Channels | 8 independent channels |
| Resolution | 16-bit |
| Accuracy | ±0.1% Full Scale |
| Input Range | -200°C to +850°C (depending on sensor type) |
| Input Impedance | >1 MΩ |
| Update Rate | 250 ms per channel |
| Isolation | 500 V RMS channel-to-logic isolation |
| Power Requirement | 5V DC (supplied from rack) |
| Module Width | Single-slot |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temp. | 0°C to 60°C |
| Storage Temp. | -40°C to 85°C |
| Mounting Method | Mounted on Quantum series backplane |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of RTD sensors are supported by this module?
A1: It supports several standard RTD types including Pt100, Pt1000, and Ni100, depending on configuration.
Q2: Are the channels on this module individually configurable?
A2: Yes, all 8 channels are independently configurable and function independently.
Q3: How does the module communicate with the PLC controller?
A3: It communicates via the Quantum backplane bus directly with the PLC CPU in real-time.
Q4: Does the module require an external power supply?
A4: No, it receives power from the backplane of the Quantum rack.
Q5: Can this module be used for thermocouple inputs?
A5: No, it is specifically designed for RTD inputs. Use modules like 140ATI03000 for thermocouple applications.
Q6: What is the accuracy level of this module?
A6: It provides ±0.1% full-scale accuracy, suitable for industrial-grade temperature monitoring.
Q7: Is there electrical isolation between channels and logic?
A7: Yes, it offers 500 V RMS isolation between input channels and system logic.
Q8: How is the module maintained or replaced?
A8: The module is hot-swappable and can be replaced easily under safe conditions without shutting down the rack.
