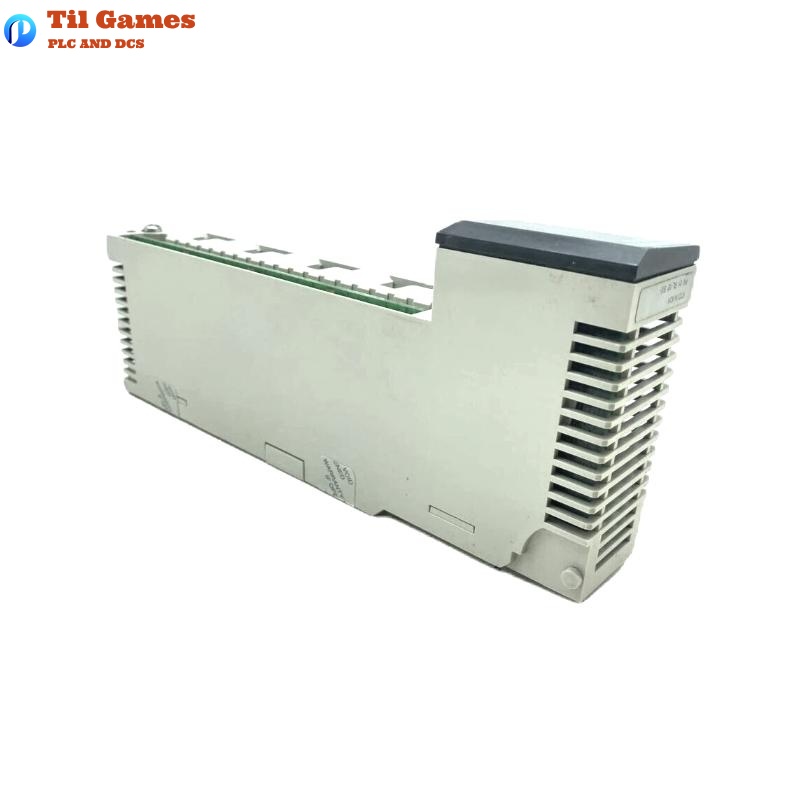

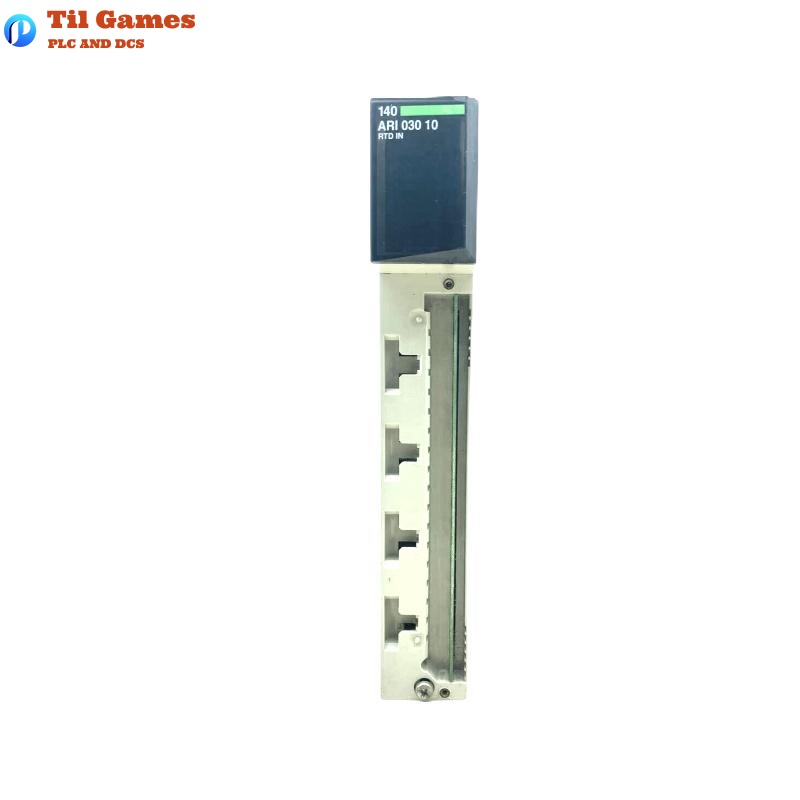

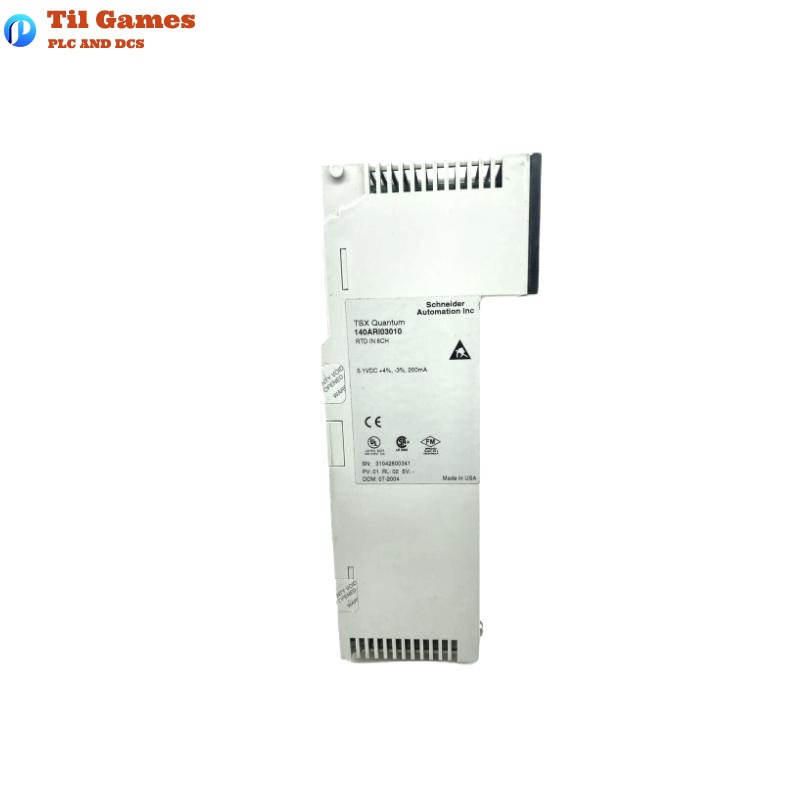

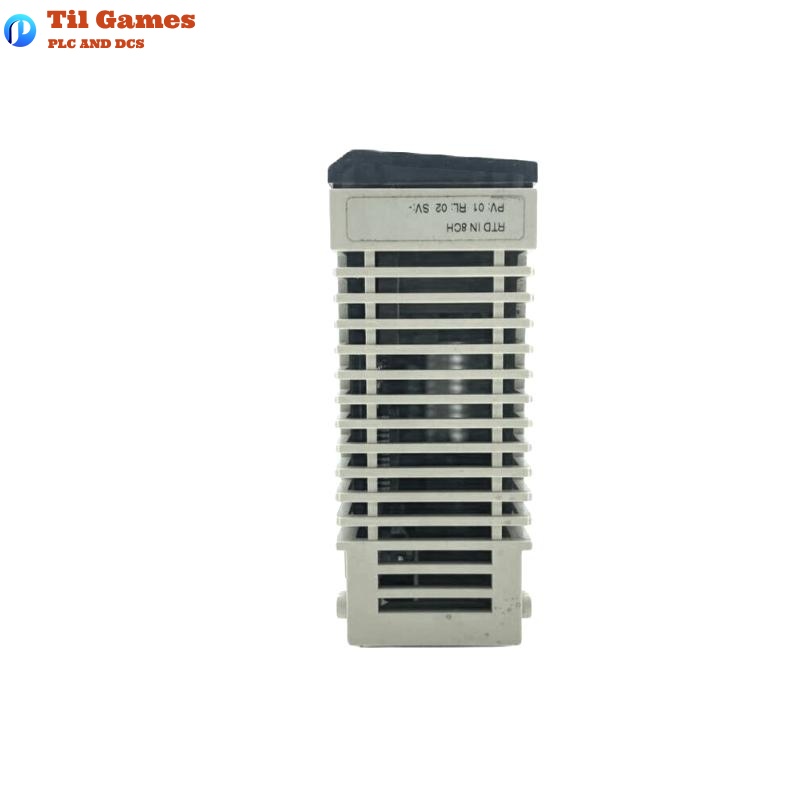

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product Type | Analog Input Module |
| Module Format | Standard |
| Number of Analog Inputs | 8 channels |
| Input Type | Differential |
| Supported Input Signals | Temperature sensors: |
| – Pt 100, Pt 200, Pt 500, Pt 1000 (100…450 °C and 200…850 °C) | |
| – Ni 100, Ni 200, Ni 500, Ni 1000 (–60…180 °C) | |
| – Excitation current 0.5 mA or 2.5 mA for Ni/Pt sensors | |
| Input Resolution | 13 bits |
| Input Impedance | ≥ 10 MΩ |
| Absolute Accuracy Error | ±0.1 °C |
| Linearity Error | ±0.01% of full scale or ±0.5 °C |
| Temperature Drift | ±0.5 °C at 25 °C; ±0.9 °C over 0–60 °C |
| Channel-to-Bus Isolation | 1780 V AC (47–63 Hz, 60s) / 2500 V DC (60s) |
| Channel-to-Channel Isolation | 300 Vrms AC |
| Update Time | 640 ms (2/4-wire), 1200 ms (3-wire) |
| Fault Detection | Broken wire, out-of-range |
| Bus Communication LED | 1 green LED (Active) |
| External Fault LED | 1 red LED |
| Channel Status LEDs | 8 green LEDs (Channel active) |
| Channel Fault LEDs | 8 red LEDs (Channel fault) |
| Bus Current Requirement | 200 mA |
| Power Dissipation | 1 W |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
| Protective Coating | Conformal coating Humiseal 1A33 |
| Certifications | CE, UL 508, CSA C22.2 No 142, FM Class 1 Div 2, cUL |
| ESD Resistance | 4 kV contact / 8 kV air discharge (IEC 801-2) |
| EMI Immunity | 10 V/m (80–1000 MHz per IEC 801-3) |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | –40 to 85 °C (–40 to 185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | Up to 5000 m (16404.2 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of temperature probes are supported by the 140ARI03010C module?
A1: It supports Pt and Ni RTDs including Pt100, Pt200, Pt500, Pt1000 and Ni100, Ni200, Ni500, Ni1000.
Q2: Are the input channels differential?
A2: Yes, all channels are differential inputs for improved noise immunity.
Q3: What is the input resolution of the module?
A3: The input resolution is 13 bits.
Q4: Is there isolation between input channels?
A4: Yes, channel-to-channel isolation is rated at 300 Vrms AC.
Q5: What fault diagnostics does the module support?
A5: The module detects broken wire and out-of-range conditions.
Q6: Does the module have status indication LEDs?
A6: Yes, it includes LEDs for bus communication, external faults, channel activation, and channel faults.
Q7: What is the operating temperature range of the module?
A7: It operates from 0 to 60 °C.
Q8: What are the dimensions and weight of the module?
A8: The dimensions are 103.9 × 40.3 × 250 mm, and the weight is 0.3 kg.
