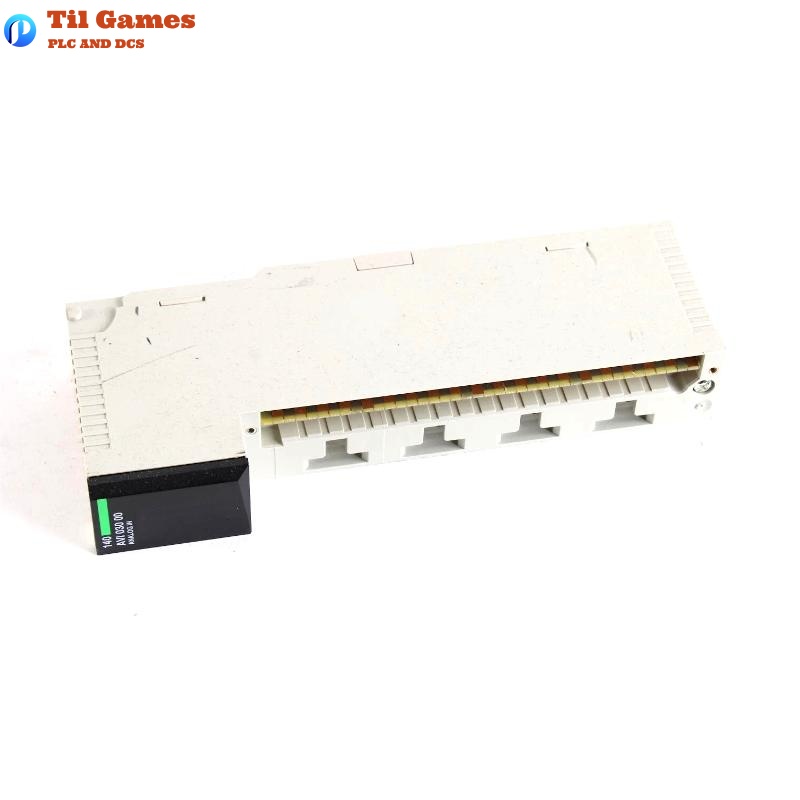

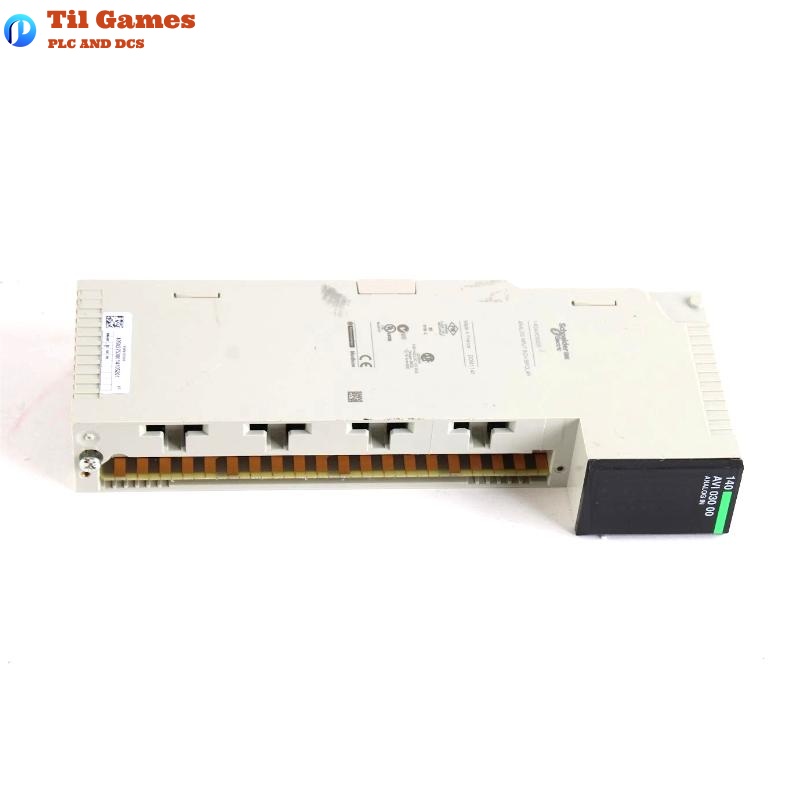

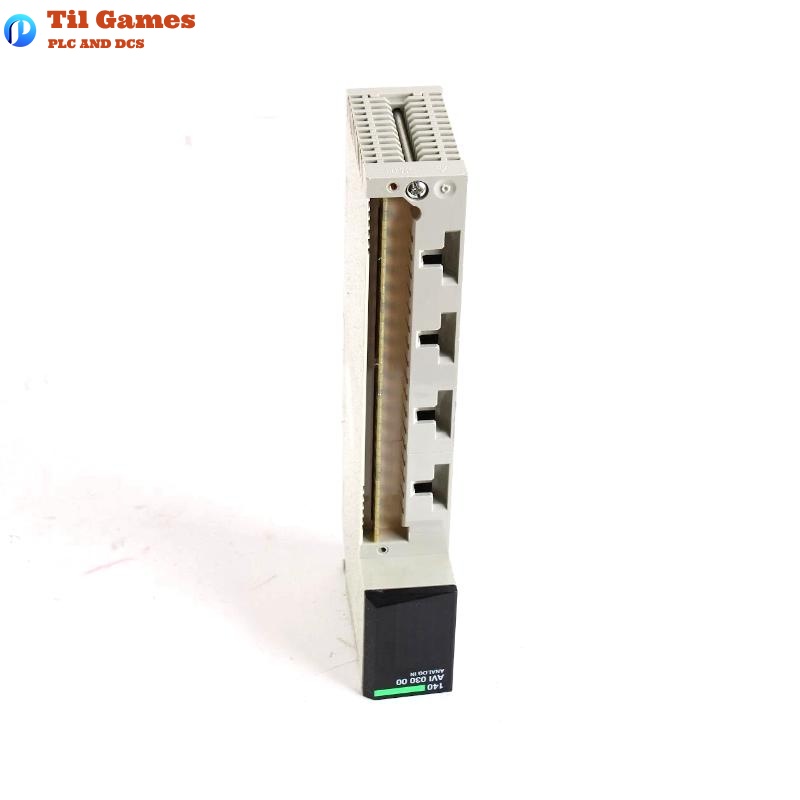

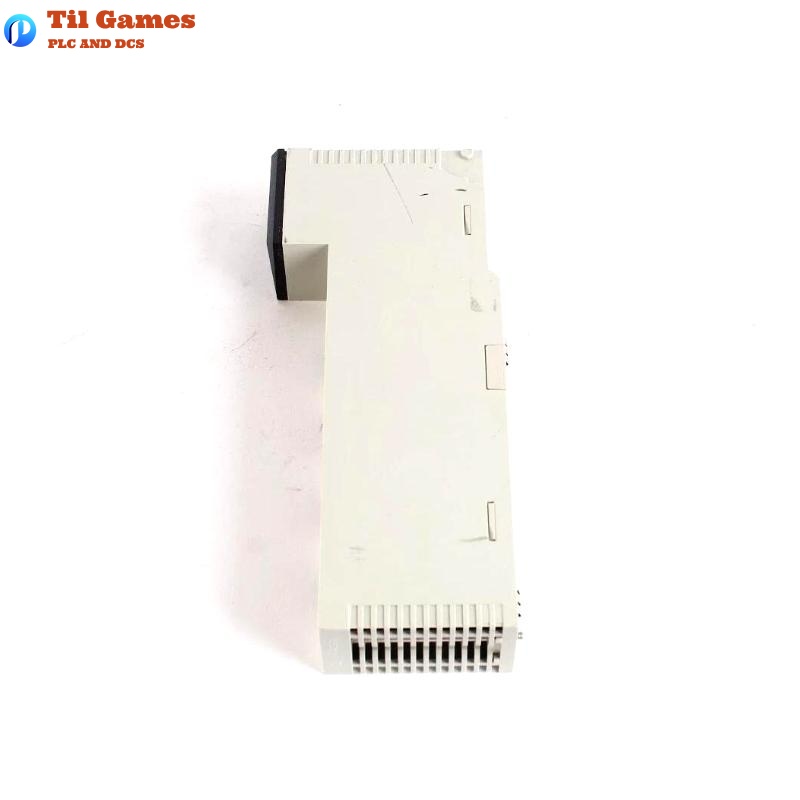

Schneider 140AVI03000C Analog Input Module

Manufacturer：Schneider

Product Number：140AVI03000C

Product Type：Analog Input Module

Origin：France

Dimensions：103.9 × 40.3 × 250 mm

Weight：0.3 kg

FAQ

Q1: What is the input type of the Schneider 140AVI03000C module?
A1: The module uses differential input for all 8 analog input channels.

Q2: What kinds of analog signals does the module support?
A2: It supports bipolar and unipolar current and voltage signals, including ±10 V, ±5 V, 0–10 V, 0–5 V, 0–20 mA, and 20 mA.

Q3: What is the resolution of the analog inputs?
A3: The module offers 16-bit resolution for all supported input ranges.

Q4: How does the module handle over-range or wiring faults?
A4: It can detect broken wire faults in 4–20 mA mode and over-range conditions in 1–5 V input mode.

Q5: What is the input impedance for voltage signals?
A5: The voltage input impedance is greater than 20 Ω, and the internal impedance is 250 MΩ ±0.03%.

Q6: Is the module electrically isolated?
A6: Yes, it provides 500 Vrms AC or 750 V DC isolation between channels and the bus, and 135 Vrms AC or 200 V DC between channels.

Q7: What are the operating environmental conditions?
A7: Operating temperature is 0–60 °C, storage temperature is –40–85 °C, and relative humidity can reach 95% without condensation.

Q8: What is the size and weight of this module?
A8: The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.
