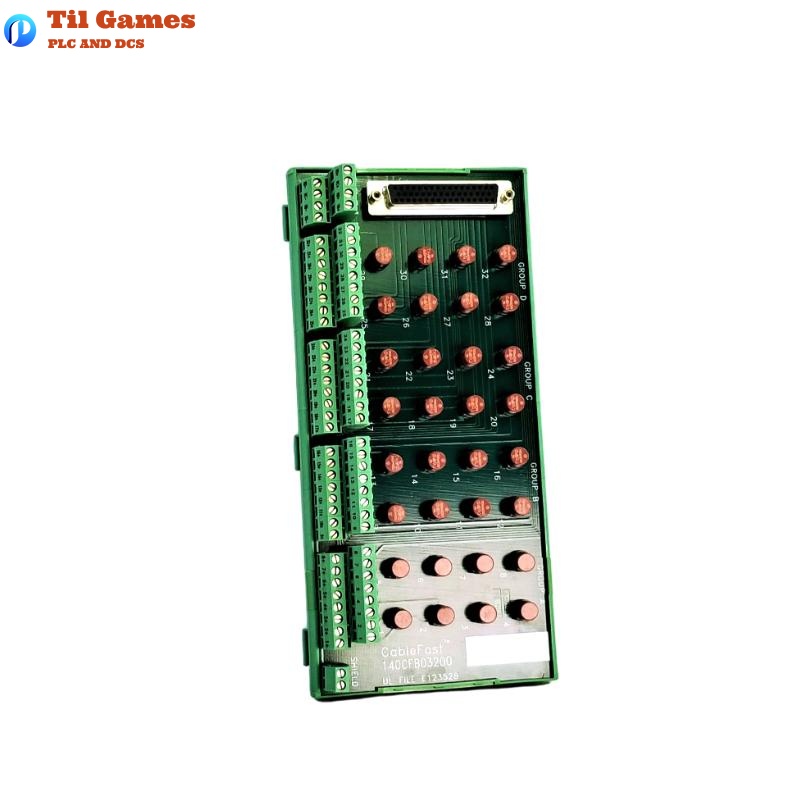

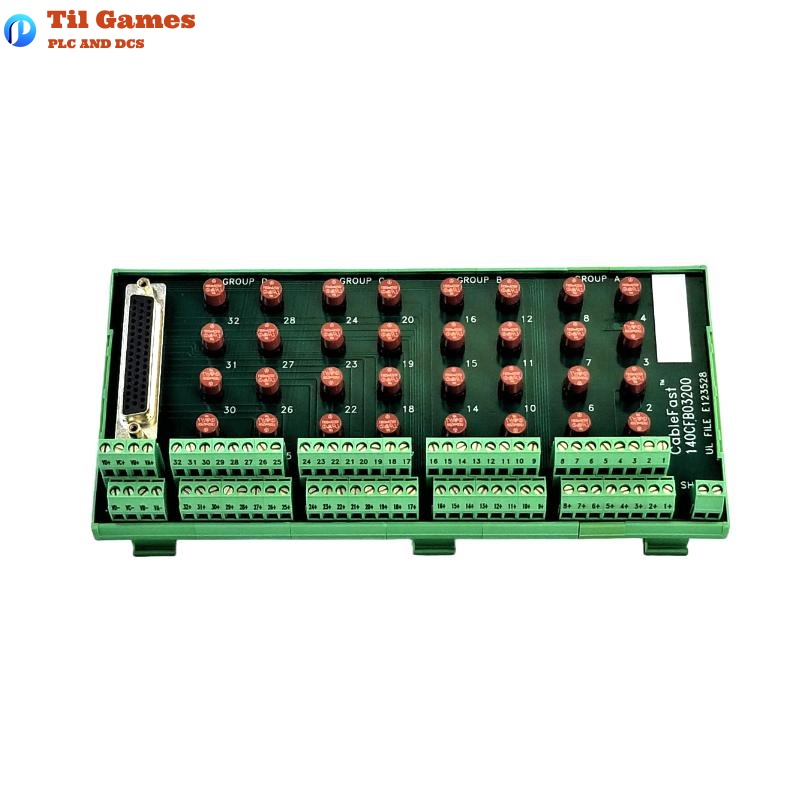

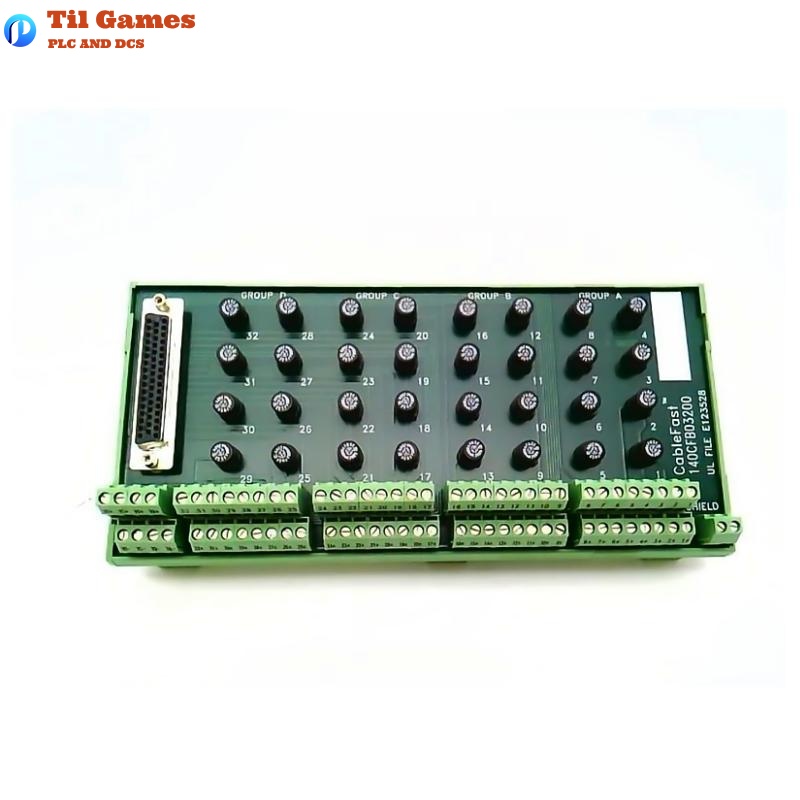

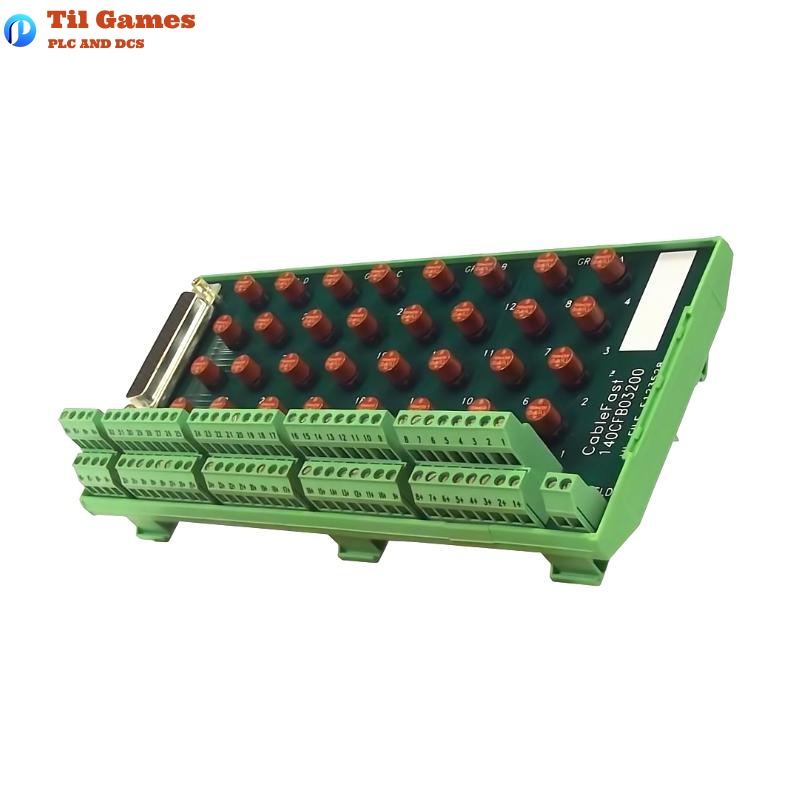

Schneider 140CFB03200 Digital Input Block

FAQ

Q1: Which modules is the 140CFB03200 compatible with?
A1: It is compatible with Modicon Quantum I/O modules such as 140DDO15310, 140DAI55300, 140DDI35300, and others.

Q2: What is the function of the fuses in this module?
A2: It provides 0.8 A group-level protection to prevent a single point failure from affecting the entire group.

Q3: How are the inputs grouped in this block?
A3: The inputs are arranged into 4 groups of 8 I/O points, totaling 32 points.

Q4: How many terminals are assigned per input point?
A4: Each input point is assigned 2 terminals for easy wiring and diagnostics.

Q5: What type of electrical connection does it use?
A5: It uses a female SUB-D 50-pin connector with captive screw terminals.

Q6: Is DIN rail mounting supported?
A6: Yes, it supports standard DIN rail mounting for easy cabinet integration.

Q7: What are the dimensions and weight of the module?
A7: The dimensions are 110 x 180 x 270 mm, and the weight is 0.454 kg.

Q8: What accessory category does 140CFB03200 fall under?
A8: It is categorized as a connection accessory, specifically a terminal block for Quantum I/O modules.
