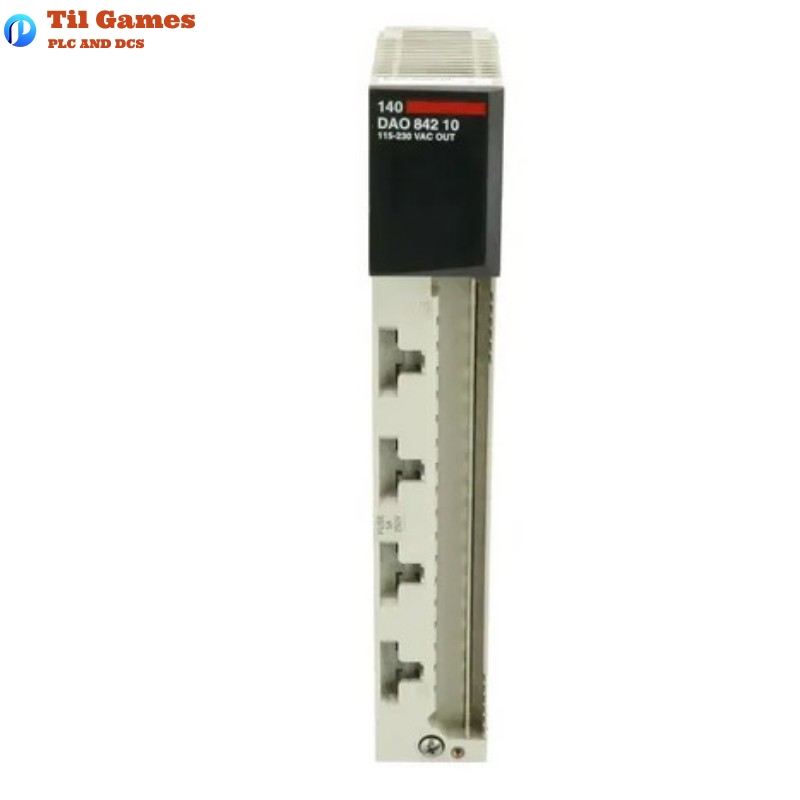

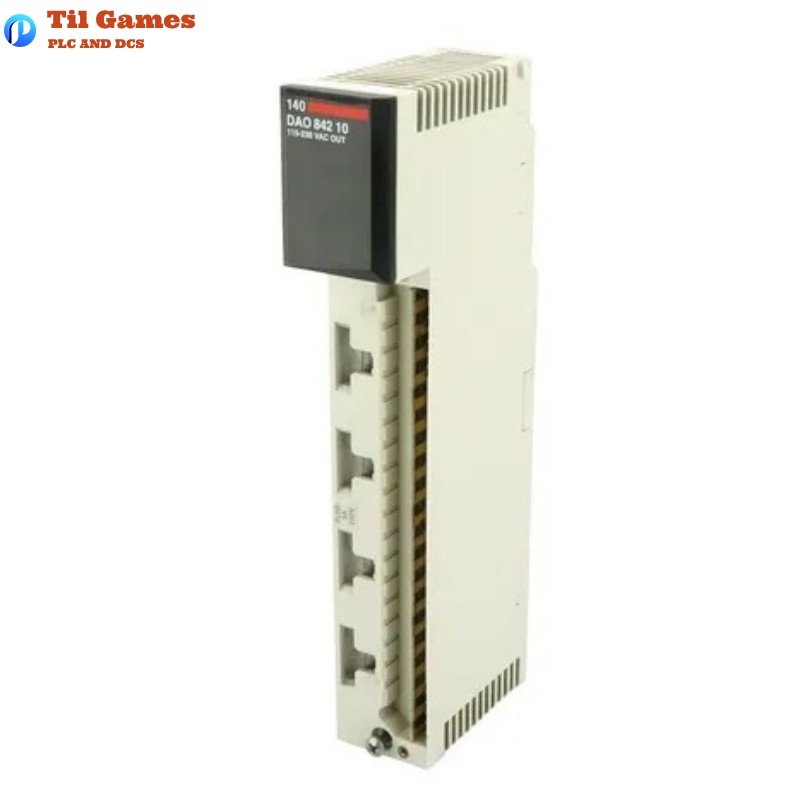

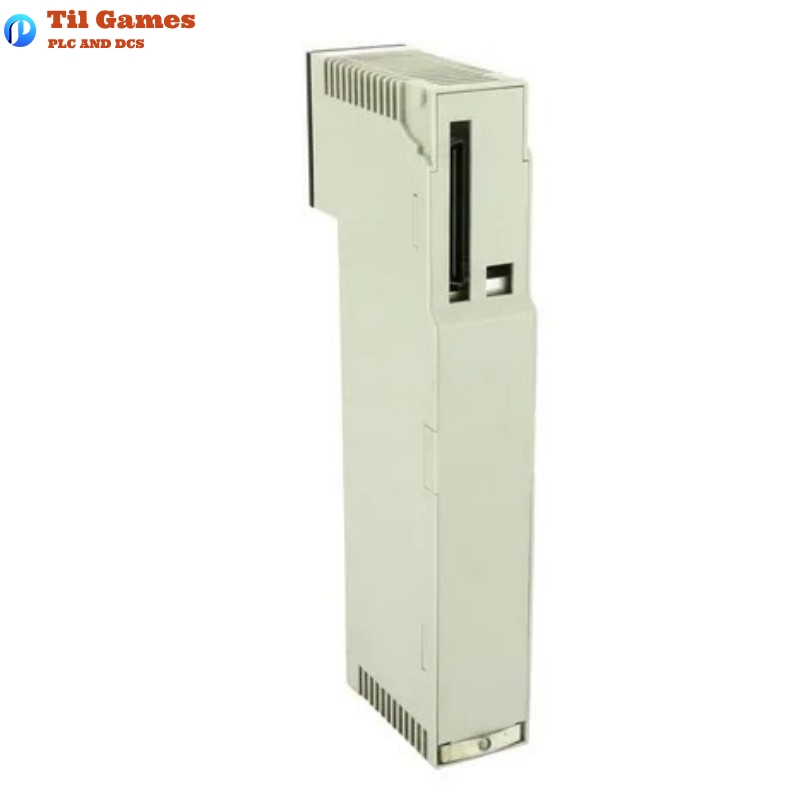

Schneider 140DAO84210 Discrete Output Module

Manufacturer：Schneider

Product Number：140DAO84210

Product Type：Discrete Output Module

Origin：France

Dimensions：103.9 × 40.3 × 250 mm

Weight：0.45 kg

FAQ

Q1: What is the number of outputs provided by the Schneider 140DAO84210 module?
A1: The Schneider 140DAO84210 module provides 16 discrete outputs.

Q2: What is the maximum surge current supported by each output point?
A2: Each output point can support a maximum surge current of 30 A during 1 cycle.

Q3: What is the response time of the Schneider 140DAO84210 module when switching between states?
A3: The response time is less than or equal to 0.5 ms when switching from state 0 to state 1, and from state 1 to state 0.

Q4: How is the Schneider 140DAO84210 module protected from faults?
A4: It has protection from faults via an internal RC filter and a 5 A fuse for output protection.

Q5: What are the environmental conditions for the Schneider 140DAO84210 module’s operation?
A5: The module operates within a temperature range of 0…60 °C (32…140 °F) and can be stored between -40…85 °C (-40…185 °F).

Q6: What certifications and standards does the Schneider 140DAO84210 module meet?
A6: It is certified with cUL, FM Class 1 Division 2, and conforms to UL 508 and CSA C22.2 No 142 standards.

Q7: What is the module’s weight and dimensions?
A7: The Schneider 140DAO84210 module weighs 0.45 kg (0.99 lb) and has dimensions of 103.9 × 40.3 × 250 mm.

Q8: How is the bus current requirement for the Schneider 140DAO84210 module specified?
A8: The module requires a bus current of 350 mA.

140DAO84210 Discrete Output Module Schneider
