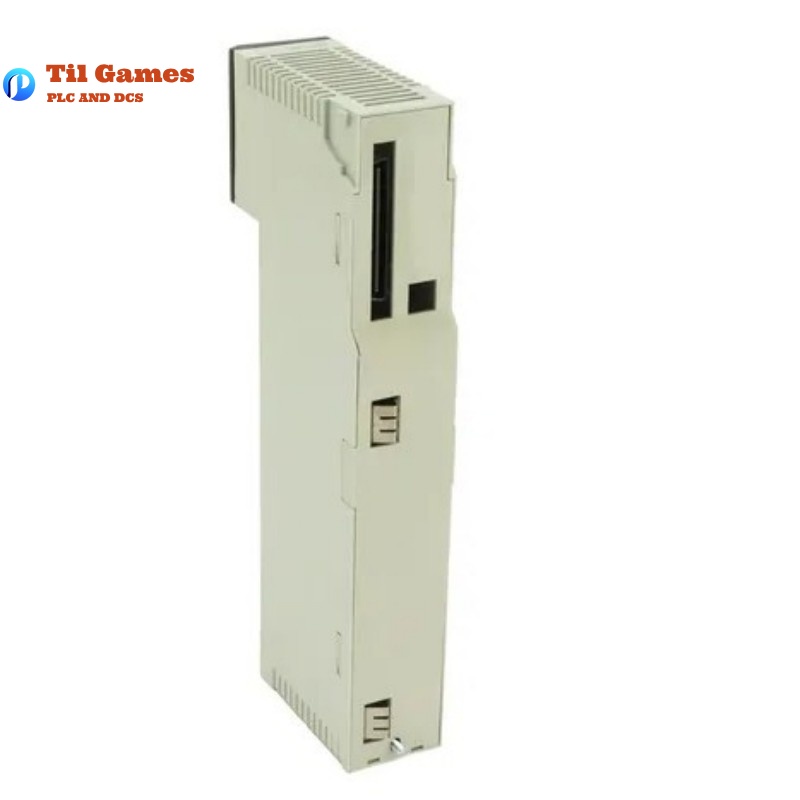

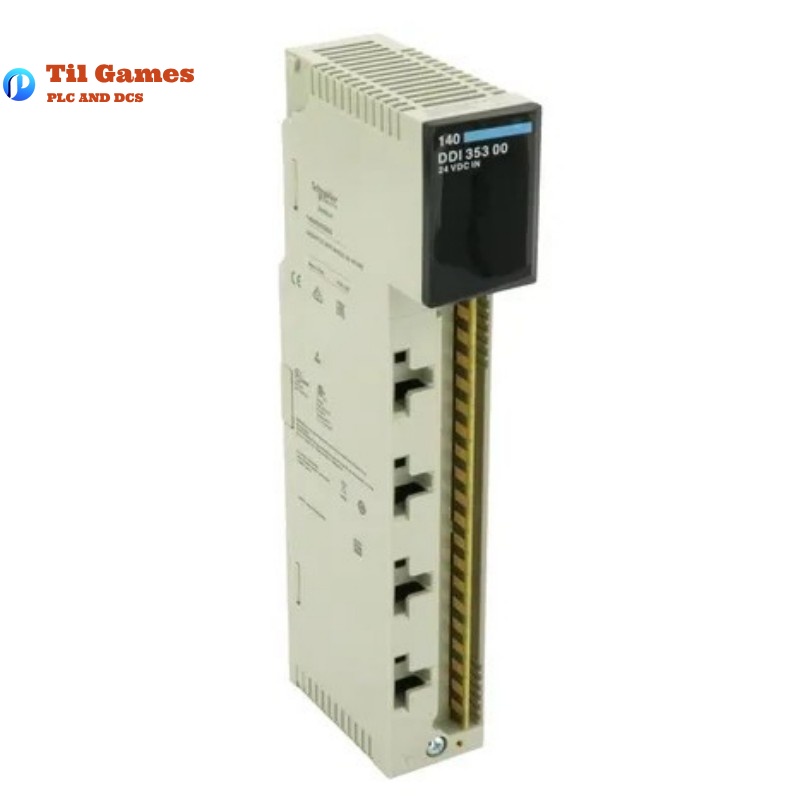

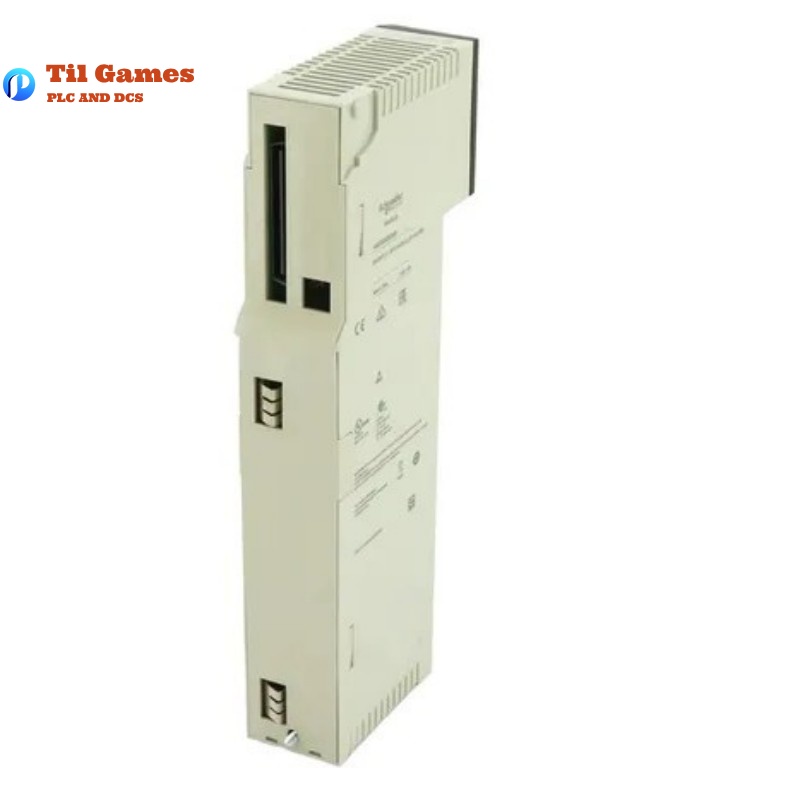

Technical Specifications
| Item | Specification |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Product Type | Low Voltage DC Discrete Input Module |
| Number of Inputs | 32 points |
| Input Logic Type | Positive Logic (Sink Type) |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 19.2…30 V DC |
| Guaranteed Voltage for State 1 | 15…30 V DC |
| Guaranteed Voltage for State 0 | -3…5 V DC |
| Guaranteed Current for State 1 | ≥ 2 mA (Us = 5.5 V, Uin = 0 V) |
| Guaranteed Current for State 0 | ≤ 0.5 mA |
| Max Leakage Current | 200 µA (Us = 5.5 V, Uin = 4 V) |
| Input Impedance | 2500 Ohm |
| Absolute Max Input Voltage | 30 V continuous / 56 V, 1.3 ms decaying pulse |
| Response Time | ≤ 1 ms (state change 0 → 1 or 1 → 0) |
| Channel Groups | 4 groups |
| Addressing Requirement | 2 input words |
| Module Format | Standard |
| Group-to-Bus Isolation | 1780 Vrms for 1 minute |
| Group-to-Group Isolation | 500 Vrms for 1 minute |
| Local Indication | 32 input status LEDs (green) Bus active (green) External fault (red) |
| Power Dissipation | 1.7 W + (0.36 × number of points ON) |
| Bus Current Requirement | 330 mA |
| Dimensions (W × D × H) | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.3 kg (0.7 lb) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Electrostatic Discharge | 4 kV contact / 8 kV air (IEC 801-2) |
| Electromagnetic Field Immunity | 10 V/m (80–2000 MHz, IEC 801-3) |
| Standards Compliance | UL 508, CSA C22.2 No 142 |
| Certifications | CE, C-Tick, DNV, RINA, RMRS, BV, GOST, ABS |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input points does the 140DDI35300 module support?
A1: The module supports 32 discrete DC input points.
Q2: What is the input logic type for this module?
A2: It uses positive logic (sink type) inputs.
Q3: What is the rated voltage for each input?
A3: Each input is rated at 24 V DC, with an acceptable range of 19.2 to 30 V.
Q4: What is the module’s input response time?
A4: The response time is less than or equal to 1 millisecond.
Q5: What are the physical dimensions of the module?
A5: The module measures 103.9 × 40.3 × 250 mm.
Q6: Does the module feature input protection?
A6: Yes, input protection is provided by a current-limiting resistor.
Q7: What is the operating temperature range?
A7: The module operates between 0 and 60 °C.
Q8: Is the module certified by international standards like CE and UL?
A8: Yes, it is certified by CE, UL, CSA, DNV, RINA, BV, GOST, and ABS.
