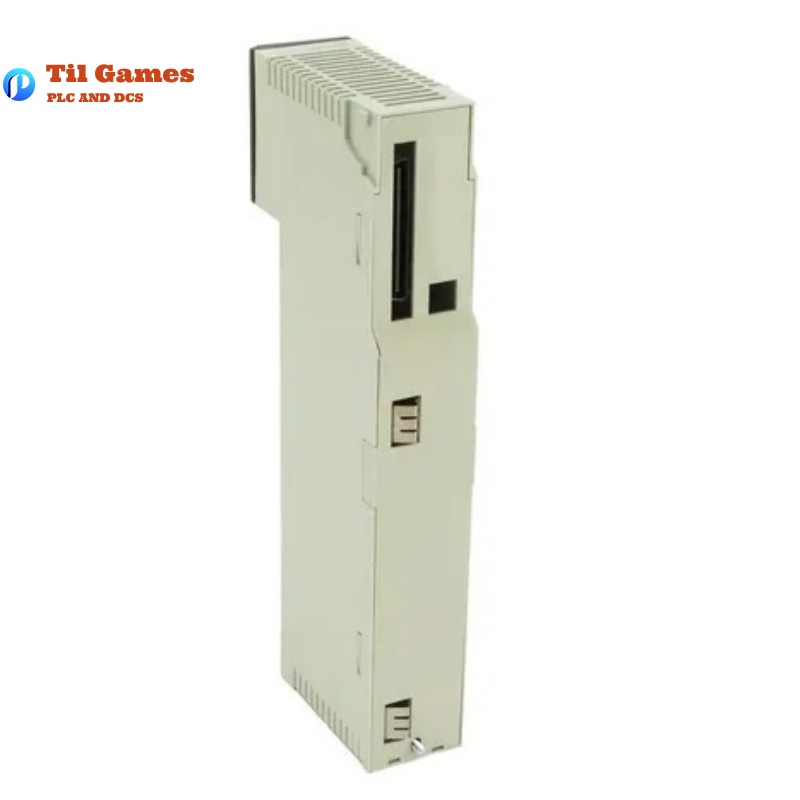

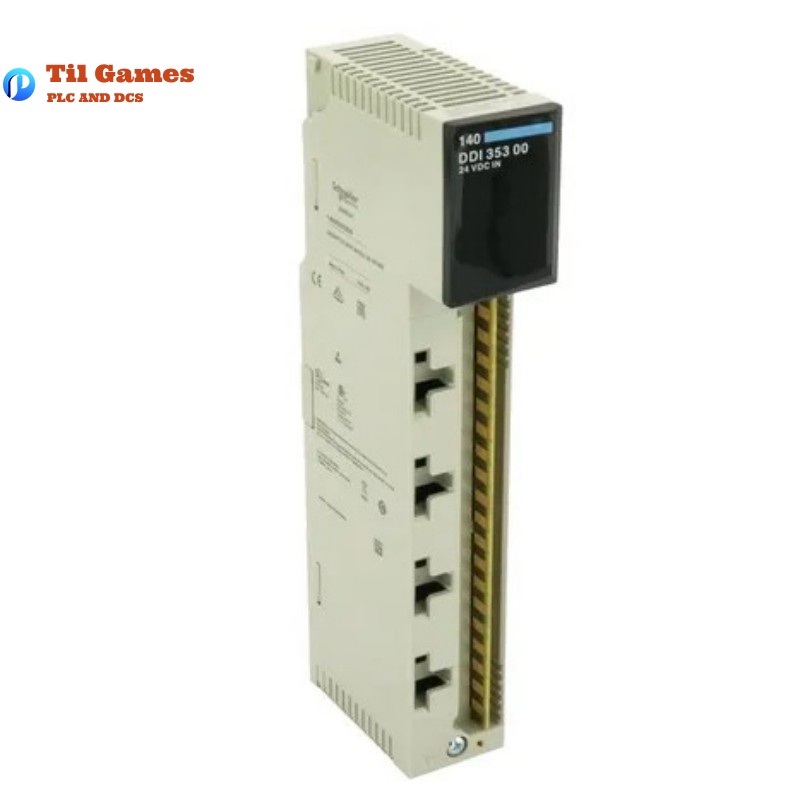

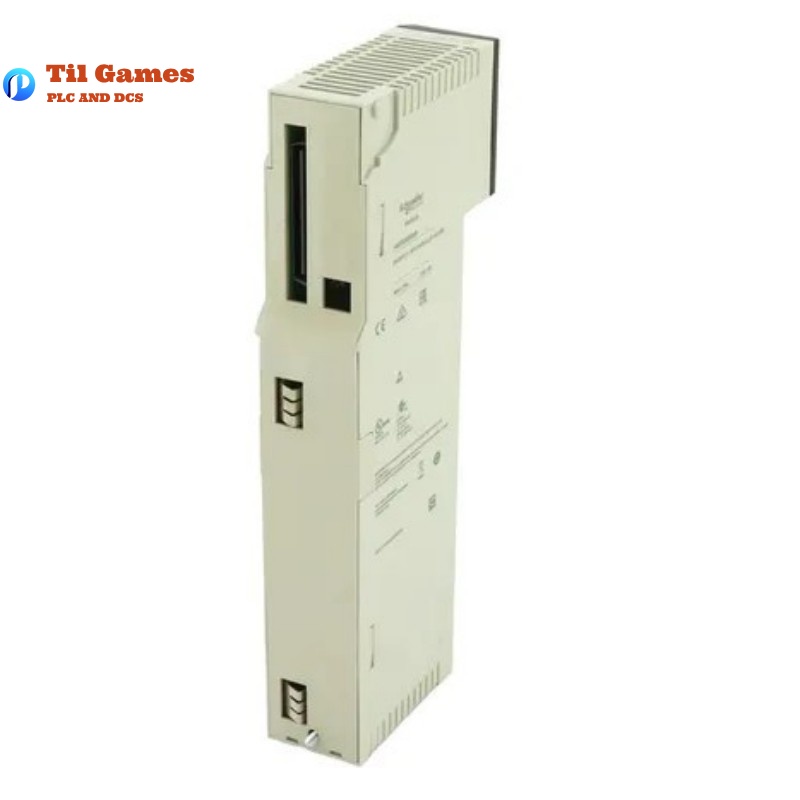

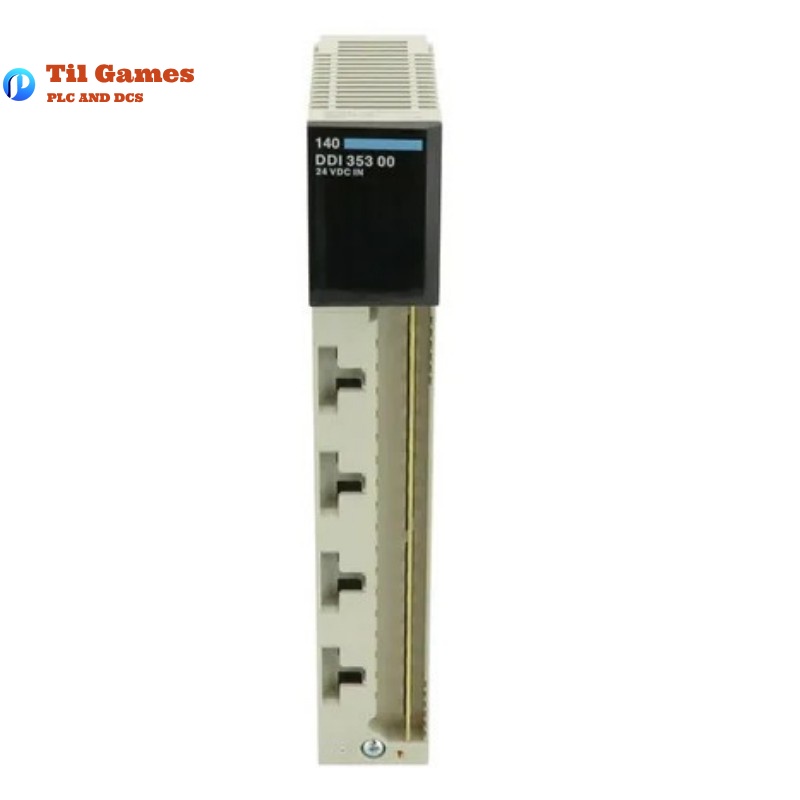

Technical Specifications
| Parameter Category | Specification |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product Type | Low voltage DC discrete input module |
| Number of Inputs | 32 |
| Channel Grouping | 4 groups |
| Logic Type | Negative (source) |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 19.2 to 30 V DC |
| Guaranteed State 1 Voltage | -30 to -15 V DC |
| Guaranteed State 0 Voltage | -5 to 0 V DC |
| Guaranteed State 1 Current | ≥ 2.5 mA at Us = -14 V |
| Guaranteed State 0 Current | ≤ 0.5 mA |
| Addressing Requirement | 2 input words |
| Input Impedance | 2400 Ω |
| Maximum Leakage Current | 200 μA at Us = 5.5 V and Uin = 4 V |
| Absolute Max Input Voltage | 30 V continuous, 50 V for 1 ms decaying pulse |
| Response Time | ≤ 1 ms (from 0 to 1 and 1 to 0) |
| Protection Type | Resistor-limited input protection |
| Power Dissipation | 1.5 W + (0.26 × number of active points) |
| Bus Current Requirement | 330 mA |
| Module Format | Standard |
| Isolation (Group/Bus) | 1780 Vrms for 1 minute |
| Isolation (Group/Group) | 500 Vrms for 1 minute |
| Local Signaling | Green LED for bus active, red LED for fault, 32 green LEDs for input status |
| Certifications | CE, UL 508, CSA C22.2 No 142, FM Class 1 Div 2, C-tick, GOST, RINA, RMRS |
| Electrostatic Discharge | 4 kV contact, 8 kV air, per IEC 801-2 |
| Electromagnetic Immunity | 9.1 V/m (10 V/m) at 80–2000 MHz per IEC 801-3 |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Dimensions (W × D × H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input voltage range does the 140DDI35310 support?
A1: It supports 24V DC with a valid input voltage range from 19.2 to 30V DC.
Q2: What logic type is used for the input channels?
A2: The module uses negative logic (source type input).
Q3: What is the response time of the module?
A3: The response time is ≤ 1 ms for both state transitions (0 to 1 and 1 to 0).
Q4: Does this module provide electrical isolation?
A4: Yes, it provides 1780 Vrms isolation between group and bus, and 500 Vrms between groups.
Q5: What is the bus current requirement for this module?
A5: The module requires 330 mA from the backplane bus.
Q6: How is input protection implemented?
A6: It uses resistor-limited input protection.
Q7: What is the operating temperature range?
A7: It can operate reliably between 0 °C and 60 °C.
Q8: Does the module provide local indication LEDs?
A8: Yes, it features a green LED for bus status, a red LED for external faults, and 32 green LEDs for input status.
