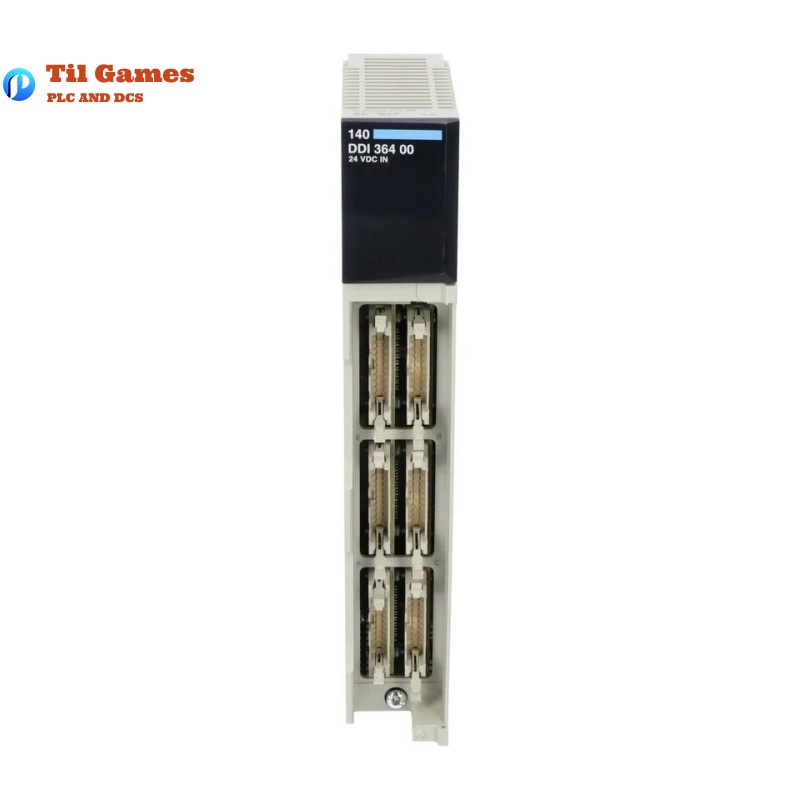

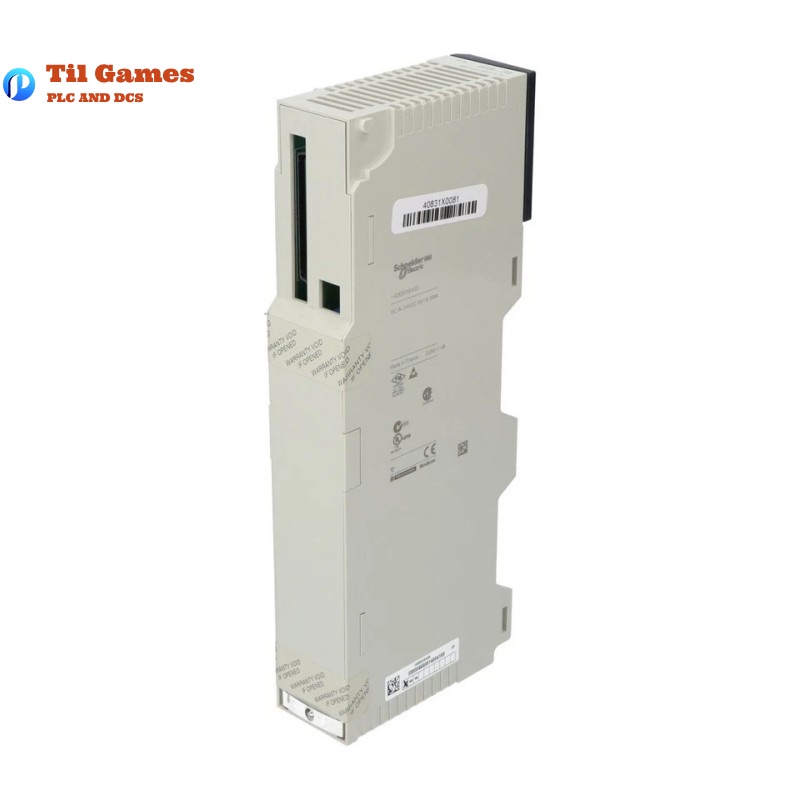

Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon Quantum automation platform |
| Product Type | Low voltage DC discrete input module |
| Discrete Input Channels | 96 points |
| Channel Grouping | 6 groups (16 points each) |
| Logic Type | Positive logic (sink type) |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 19.2 to 30 V DC |
| Voltage Guaranteed State 1 | 15 to 30 V DC |
| Voltage Guaranteed State 0 | ≤ 5 V DC |
| Current Guaranteed State 1 | ≥ 2.5 mA |
| Current Guaranteed State 0 | ≥ 0.7 mA |
| Input Impedance | 6700 Ohm |
| Absolute Max Input Voltage | 30 V continuous, 50 V decaying pulse |
| Response Time | ≤ 2 ms (0 → 1), ≤ 3 ms (1 → 0) |
| Power Dissipation | 1.35 W + (0.13 W × number of active points) |
| Addressing Requirement | 6 words |
| Group Isolation | 500 Vrms for 1 minute |
| Bus Current Requirement | 270 mA |
| Local Signalling | 1 green LED (bus active) 1 red LED (fault) 96 green LEDs (input status) |
| Module Format | Standard |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
| Compliance Standards | UL 508, CSA C22.2 No.142 |
| Certifications | CE, FM Class 1 Div 2, C-Tick |
| ESD Immunity | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Immunity | 9.1 V/m (10 V/m) from 80–2000 MHz (IEC 801-3) |
| Operating Temperature Range | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature Range | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What logic type does the 140DDI36400 module support?
A1: It supports positive logic (sink type), where current flows into the module input.
Q2: Is there electrical isolation between channel groups?
A2: Yes, each group is isolated with 500 Vrms for 1 minute.
Q3: What is the maximum allowable input voltage?
A3: The module allows 30 V continuous or 50 V decaying pulse input.
Q4: What is the input response time for state changes?
A4: The response is ≤2 ms for 0 to 1 and ≤3 ms for 1 to 0 transitions.
Q5: Does each input point have a status indicator?
A5: Yes, the module includes 96 green LEDs, one per input point.
Q6: How is the power dissipation calculated?
A6: Power dissipation is 1.35 W base plus 0.13 W per active input point.
Q7: What is the maximum supported ambient temperature?
A7: The module can operate at temperatures up to 60°C (140°F).
Q8: How much bus current does the module draw?
A8: It draws 270 mA from the backplane bus.
