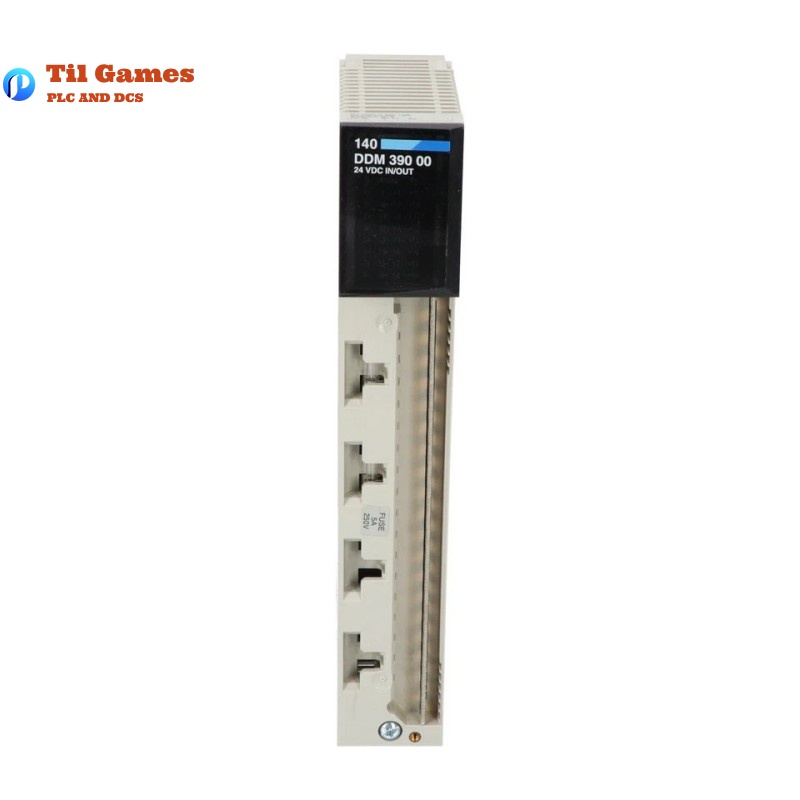

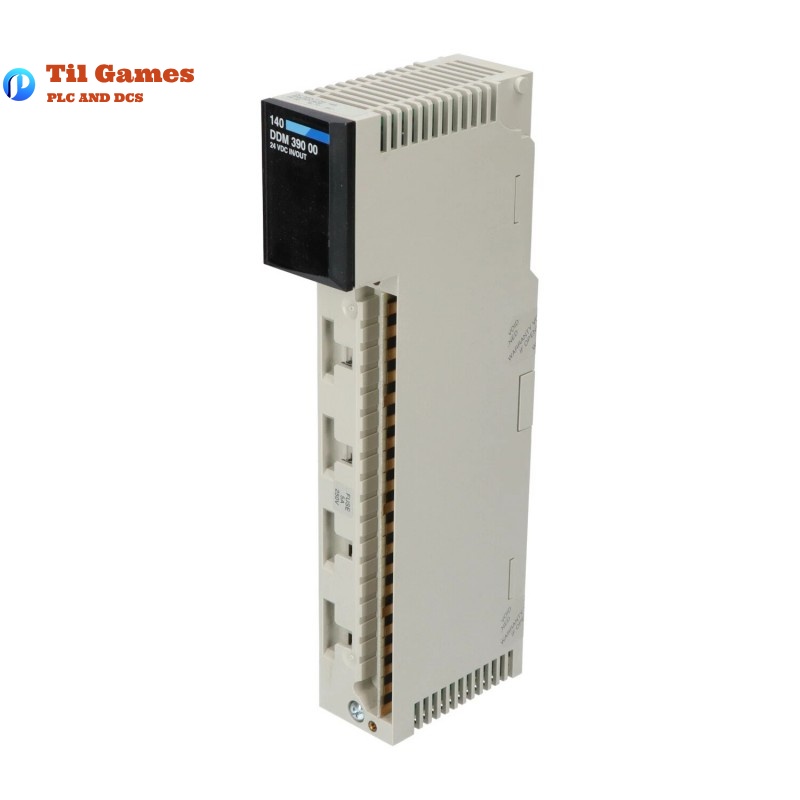

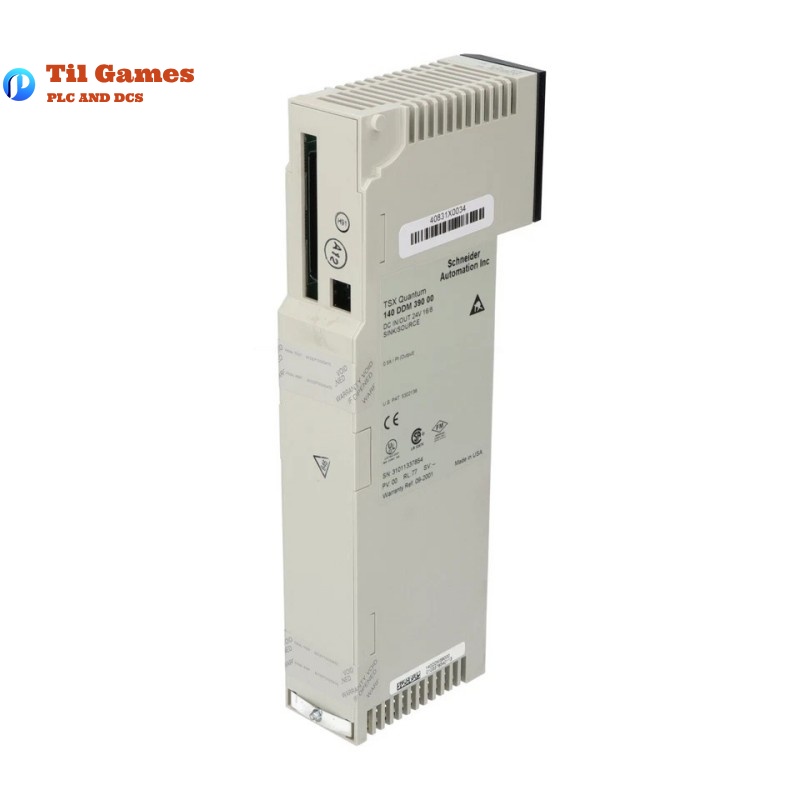

Technical Specifications
| Parameter | Value |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Product Type | Mixed Discrete I/O Module |
| Discrete I/O Number | 24 (16 inputs + 8 outputs) |
| Discrete Input Number | 16 (2 groups of 8) |
| Input Logic | Sink |
| Discrete Input Voltage | 24 V DC |
| Input Voltage Limits | Up to 30 V; 56 V during 1.3 ms; ≤ 1 V for 10 s |
| Input Voltage State 0 Guaranteed | -3…5 V |
| Input Voltage State 1 Guaranteed | 15…30 V |
| Input Current State 0 Guaranteed | ≤ 0.5 mA |
| Input Current State 1 Guaranteed | ≥ 2 mA |
| Input Impedance | 2500 Ohm |
| Addressing Requirement | 1 input word / 0.5 output word |
| Network Frequency Limits | 47…63 Hz |
| Discrete Output Number | 8 (2 groups of 4) |
| Output Type | Solid State |
| Output Logic | Sink |
| Output Voltage | 24 V DC typical |
| Output Voltage Limits | 19.2…30 V DC typical, 56 V DC for 1.3 ms |
| Max Load Current | ≤ 0.5 A/point, ≤ 2 A/group, ≤ 4 A/module |
| Max Voltage Drop | < 0.4 V @ 0.5 A |
| Max Output (Absolute) | 5 A during 500 µs per point |
| Max Load Inductance | 500 mH at 4 Hz |
| Max Load Capacitance | 50 µF |
| Leakage Current | 0.4 mA at 30 V DC |
| Output Response Time | ≤ 1 ms (state 0 → 1 and 1 → 0) |
| Output Protection | Transient voltage suppression, internal 5 A fuse per group |
| Associated Fuse Rating | 5 A per group |
| Isolation – Between Groups | 500 Vrms for 1 minute |
| Isolation – Between Group and Bus | 1780 Vrms for 1 minute |
| Fault Indication | Blown fuse, loss of field power, per-point fault detection |
| Local Signaling | Green & red LEDs for status, faults, and activity |
| Marking | CE |
| Bus Current Requirement | 330 mA |
| Power Dissipation | 1.75 W + (0.36 x input ON points) + (1.1 x total output A) |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.3 kg (0.7 lb) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95%, non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| ESD Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| EMC Resistance | 10 V/m, 80…1000 MHz (IEC 801-3) |
| Certifications | UL 508, CSA C22.2 No 142, FM Class 1 Div 2, cUL |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of logic is used for the inputs and outputs of the 140DDM39000?
A1: Both inputs and outputs use sink logic.
Q2: What is the maximum load current the module supports?
A2: The module supports up to 0.5 A per point, 2 A per group, and 4 A per module.
Q3: Is the module protected against output faults?
A3: Yes, output protection includes transient voltage suppression and a 5 A fuse per group.
Q4: How is fault indication provided?
A4: Via red LEDs for input and output faults, blown fuse, and loss of field power.
Q5: What voltage levels define logic states for inputs?
A5: Logic 0 is defined from -3 V to 5 V; logic 1 is defined from 15 V to 30 V.
Q6: How many discrete I/O points are there in total?
A6: There are 24 total discrete points – 16 inputs and 8 outputs.
Q7: What is the input impedance of the module?
A7: The input impedance is 2500 Ohms.
Q8: What environmental conditions does this module tolerate?
A8: It operates from 0 to 60 °C, up to 95% humidity, and altitudes up to 5000 meters.
