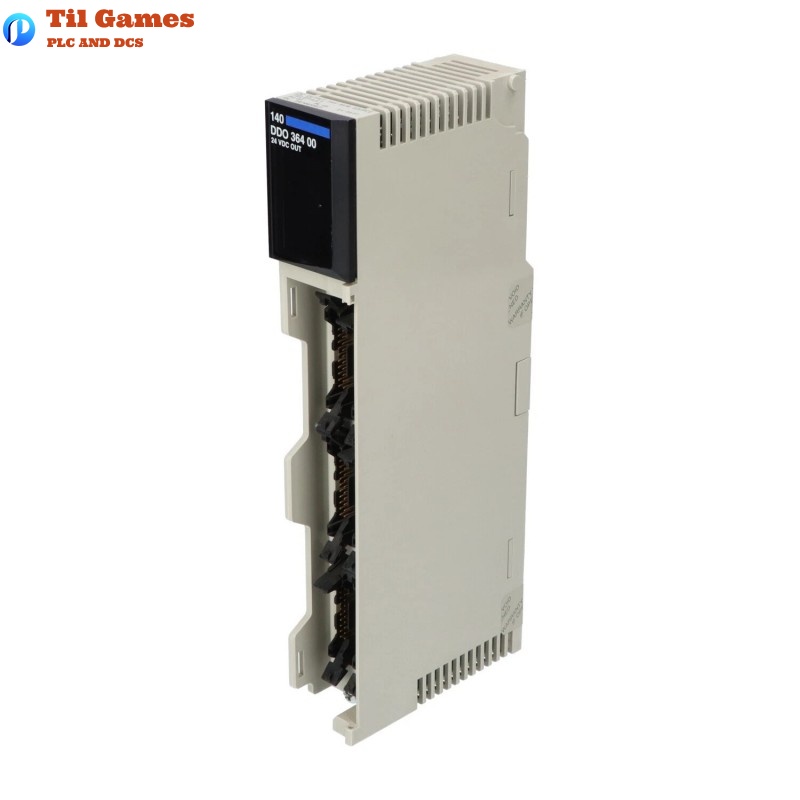

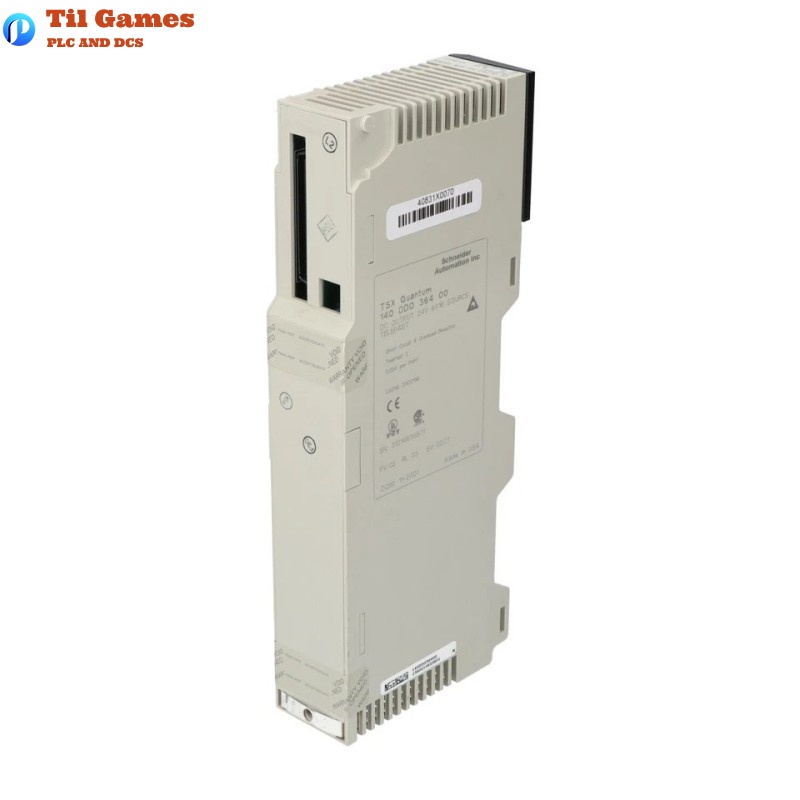

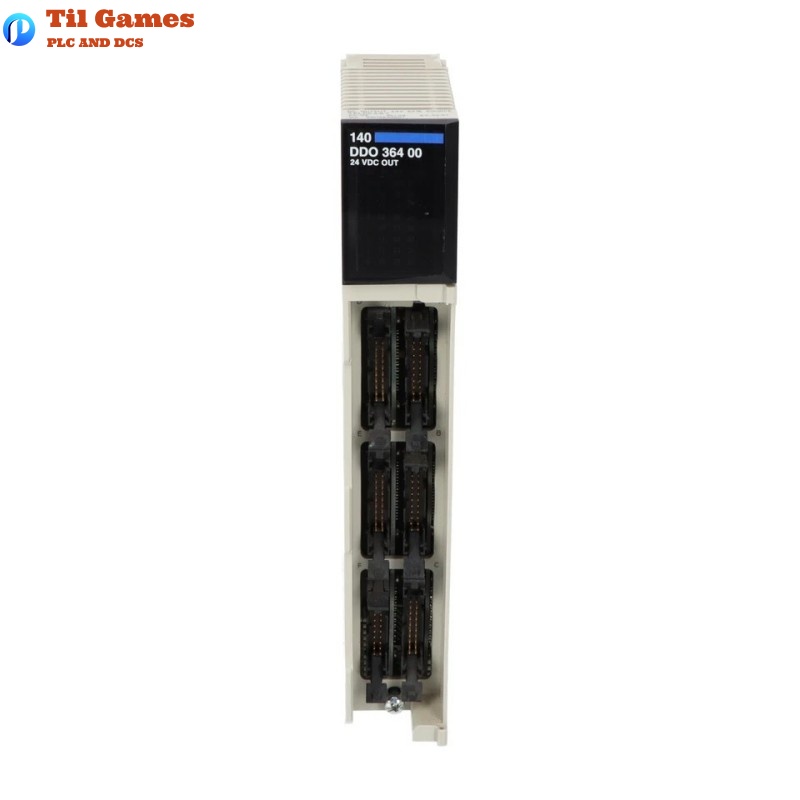

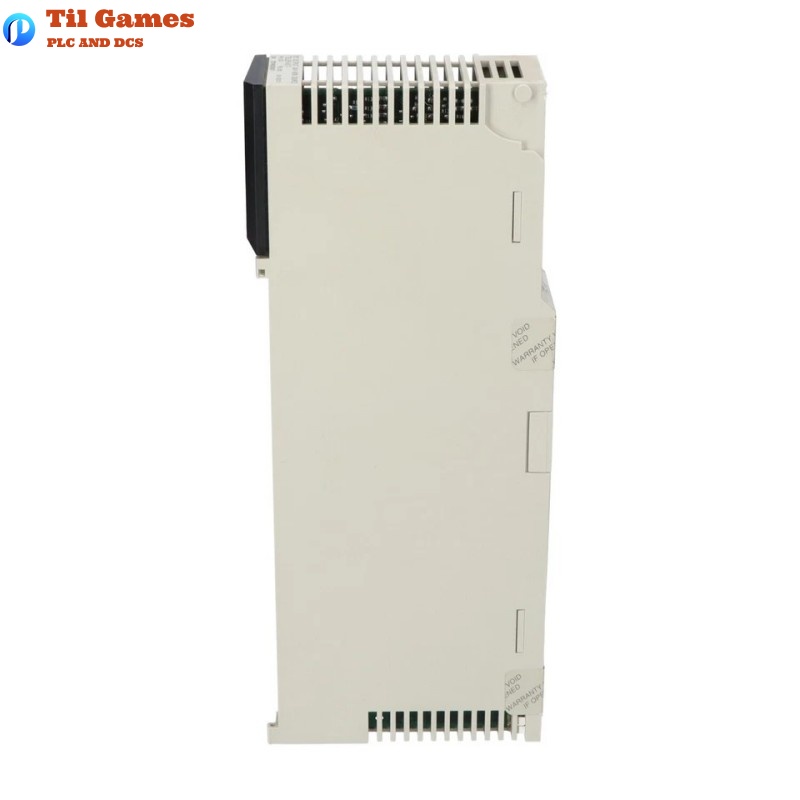

Technical Specifications
| Parameter | Value |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product Type | DC Discrete Output Module |
| Discrete Output Channels | 96 |
| Channel Grouping | 6 groups of 16 |
| Output Logic | Negative Logic (Sink) |
| Addressing Requirement | 6 Output Words |
| Output Voltage | 24 V DC |
| Output Voltage Limits | 19.2…30 V |
| Max Voltage Drop | <0.4 V at 0.5 A |
| Max Load Current | ≤ 0.5 A per point ≤ 3.2 A per group ≤ 19.2 A per module |
| Surge Current | 2 A |
| Response Time | ≤ 0.1 ms (0 → 1) ≤ 0.1 ms (1 → 0) |
| Max Leakage Current | 1 mA @ 24 V |
| Short-circuit Protection | Yes |
| Output Overload Protection | Yes |
| Load Inductance | L = 0.5 / (I² × f), f = 0.5…4 Hz |
| Fault Indication | Fault Sensing, Fault Point, Field Power Loss |
| Fault Reporting | Supported |
| Channel/Bus Isolation | 500 Vrms DC for 1 minute |
| Power Dissipation | 7 W |
| Module Format | Standard |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.45 kg (0.99 lb US) |
| Local Signalling | Bus active (green LED) Fault detected (red LED) Output status (96 green LEDs) |
| Bus Current Requirement | 250 mA |
| Marking | CE |
| Product Certifications | C-Tick, RMRS, GOST, FM Class 1 Div 2 |
| Standards Compliance | CSA C22.2 No 142, UL 508 |
| ESD Immunity | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Immunity | 9.1 V/m (10 V/m) from 80–2000 MHz (IEC 801-3) |
| Operating Temperature | 0…60°C (32…140°F) |
| Storage Temperature | -40…85°C (-40…185°F) |
| Relative Humidity | 95%, non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the supported output voltage range of the 140DDO36400 module?
A1: The module supports a voltage range of 19.2 to 30 V DC.
Q2: What is the maximum current per output point?
A2: Each output point supports up to 0.5 A.
Q3: Does the module provide short-circuit and overload protection?
A3: Yes, both protections are built in.
Q4: What is the module’s response time?
A4: The response time is ≤ 0.1 ms for both transitions (0→1 and 1→0).
Q5: Is the output logic source-type or sink-type?
A5: The module uses negative logic (sink type).
Q6: Are there individual point status indicators?
A6: Yes, each of the 96 points has its own green LED status indicator.
Q7: What are the dimensions of the module?
A7: The dimensions are 103.9 × 40.3 × 250 mm.
Q8: What is the maximum altitude for operation?
A8: The module can operate at altitudes up to 5000 meters (16404.2 ft).
