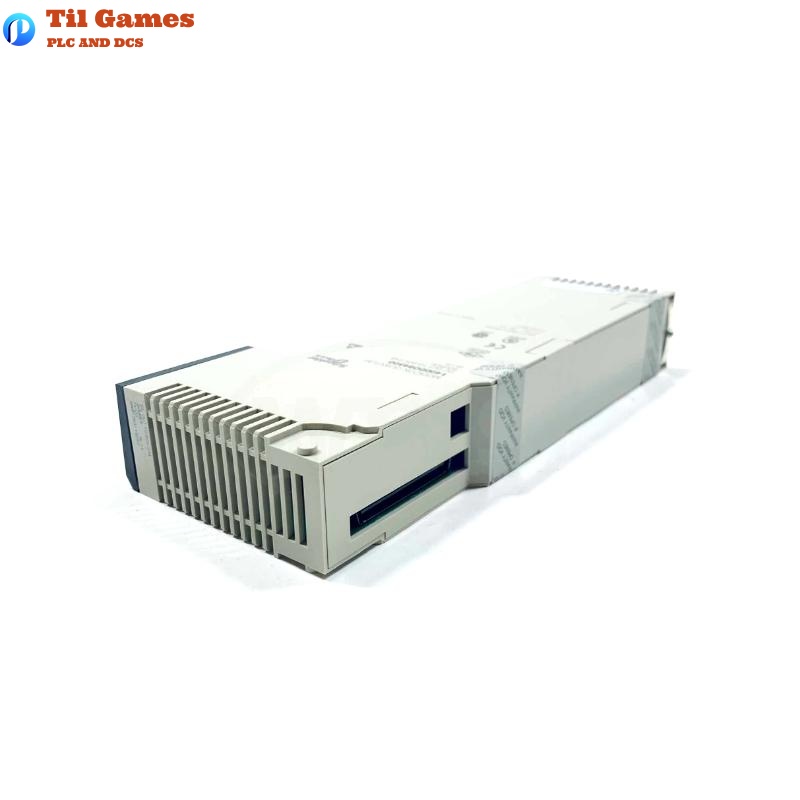

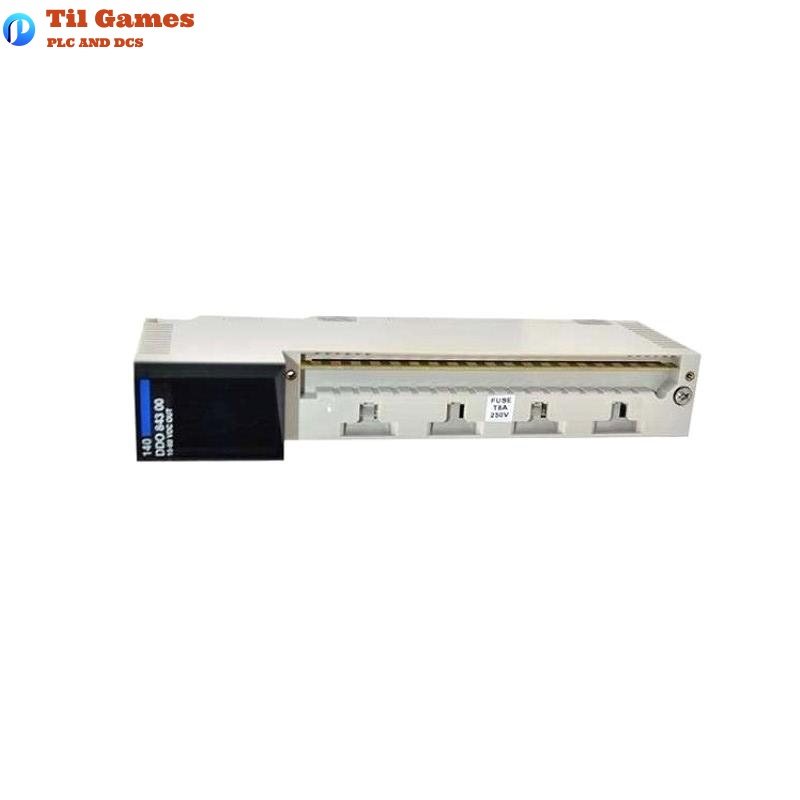

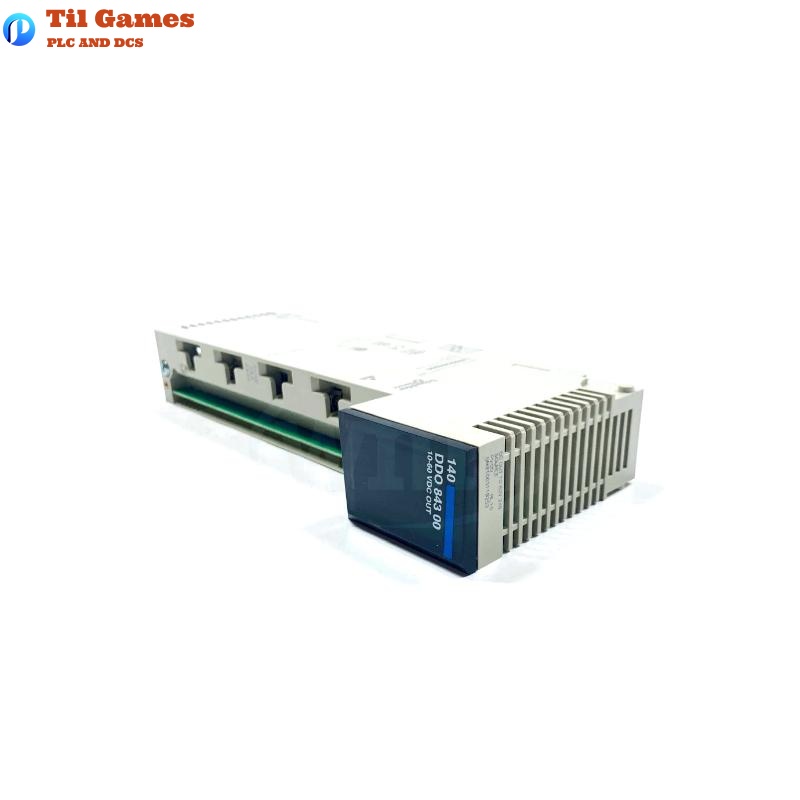

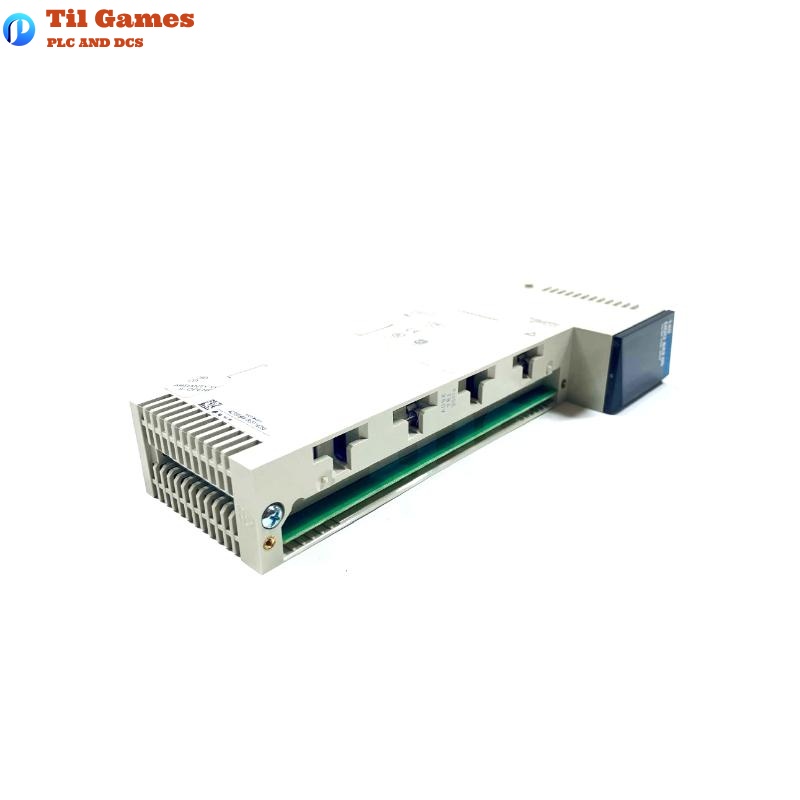

Technical Specifications — Schneider 140DDO84300 Discrete Output Module
| Parameter | Details |
|---|---|
| Product Range | Modicon Quantum automation platform |
| Type | DC discrete output module |
| Number of Outputs | 16 |
| Grouping | 2 groups of 8 |
| Output Logic | Positive logic (source) |
| Addressing Requirement | 1 output word |
| Discrete Output Voltage | 10…60 V DC |
| Output Voltage Limits | 10.2…72 V |
| Absolute Max Output | 72 V (continuous) |
| Max Voltage Drop | <1 V at 2 A |
| Max Load Current | 12 A per module |
| Max Current per Group | 6 A |
| Surge Current | 7.5 A for 50 ms |
| Response Time | ≤ 1 ms (0 to 1 or 1 to 0) |
| Max Leakage Current | 1 mA at 60 V |
| Load Inductance Formula | Inductance(H) = 0.5 / ((Current²) × Frequency) |
| Fuse Rating per Point | 2 A |
| Fuse Rating per Group | 8 A |
| Channel-to-Bus Isolation | 2500 Vrms DC for 1 minute |
| Group-to-Group Isolation | 700 Vrms DC for 1 minute |
| Protection Type | Internal 8 A fuse per group |
| Power Dissipation | 1 W + (1 V × total module load current) |
| Local Signaling | Bus active (1 green LED), Fault (1 red LED), Channel status (16 green LEDs) |
| Bus Current Requirement | 160 mA |
| Module Format | Standard |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg (0.99 lb) |
| Certifications | GOST, RMRS, FM Class 1 Division 2, C-tick |
| Standards Compliance | CSA C22.2 No 142, UL 508 |
| ESD Immunity | 4 kV contact, 8 kV air (IEC 801-2) |
| EMC Immunity | 10 V/m, 80–2000 MHz (IEC 801-3) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the 140DDO84300 module support?
A1: It supports 16 discrete outputs, organized into two groups of 8 channels.
Q2: Is the output logic sourcing or sinking?
A2: The module uses sourcing (positive logic) output.
Q3: What is the supported output voltage range?
A3: The operating voltage range is 10 to 60 V DC, with an absolute maximum of 72 V.
Q4: What is the maximum load current per group?
A4: Each group supports up to 6 A, with a module total of 12 A.
Q5: Does the module include output protection?
A5: Yes, it includes internal fuses rated at 8 A per group.
Q6: What is the response time for output switching?
A6: It is ≤ 1 millisecond for both OFF-to-ON and ON-to-OFF transitions.
Q7: What level of ESD protection does the module provide?
A7: It withstands 4 kV contact discharge and 8 kV air discharge per IEC 801-2.
Q8: What is the maximum operating altitude?
A8: The module is rated to operate at altitudes up to 5000 meters.
