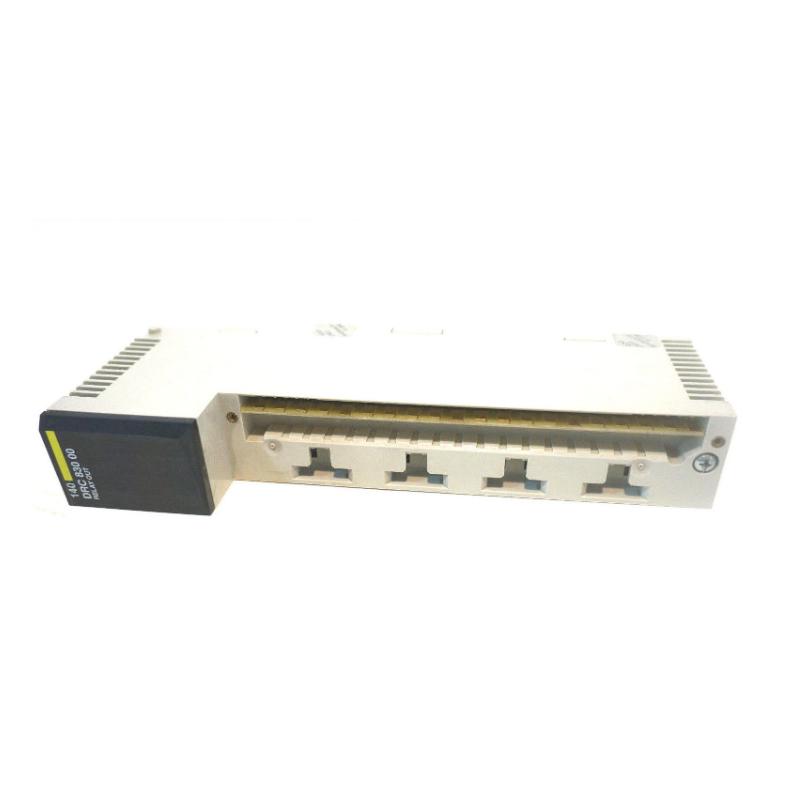

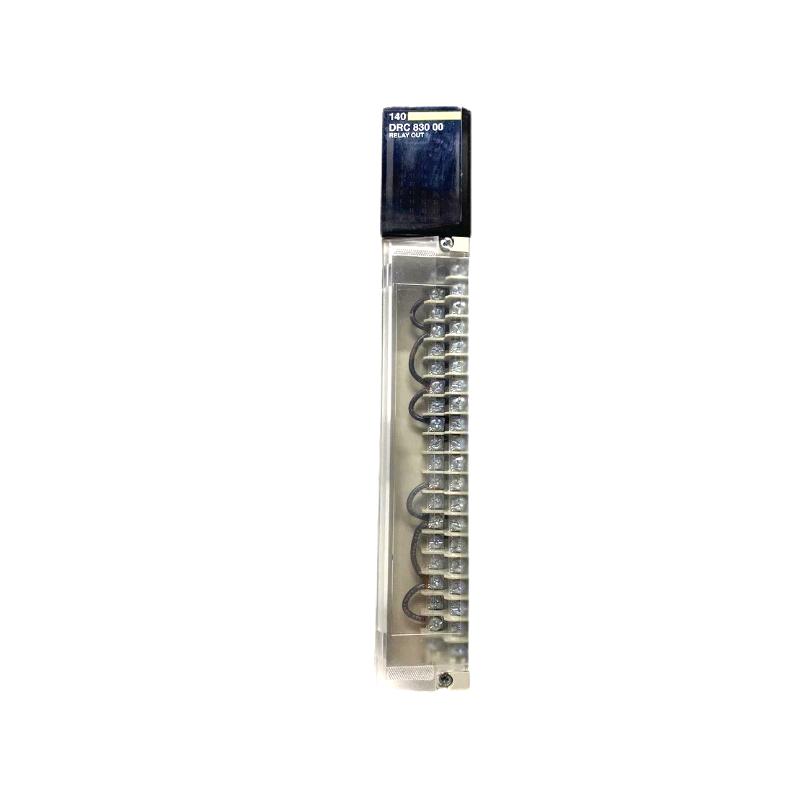

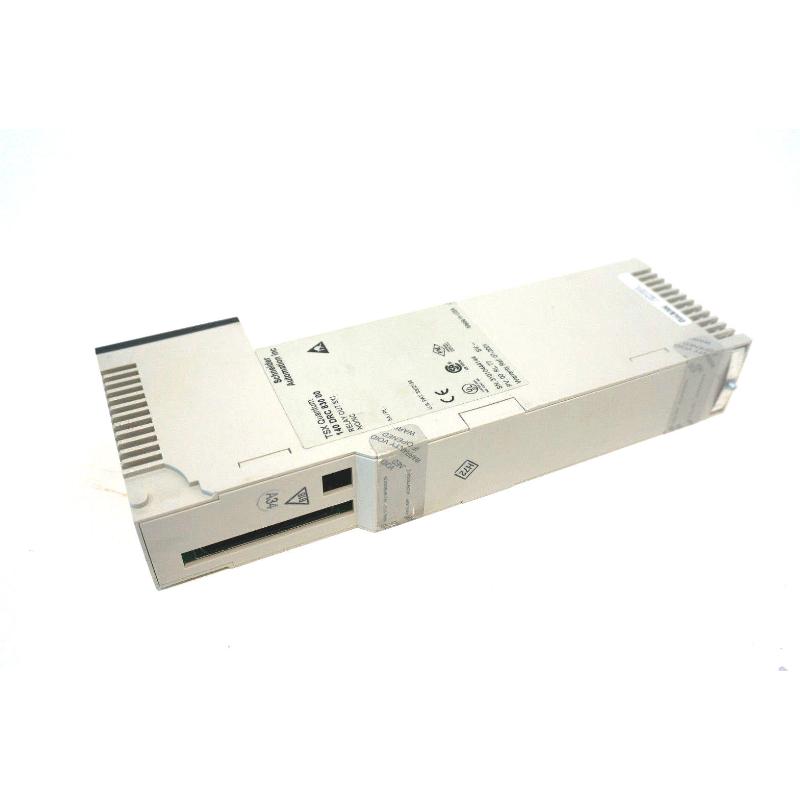

Technical Specifications
| Parameter | Details |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Relay discrete output module |
| Number of Discrete Outputs | 8 |
| Contacts Type and Composition | 1 NO/NC |
| Contact Form | Form C |
| Discrete Output Voltage | 20–250 V AC 30–150 V DC 5–30 V DC |
| Addressing Requirement | 0.5 output word |
| Maximum Load Current | 100 mA (30–50 V DC, L/R = 10 ms) 300 mA (30–50 V DC resistive) 2 A (250/30 V AC/DC tungsten, cos φ = 0.4) 3 A (250/30 V AC/DC) 5 A (250/30 V AC/DC resistive at 60 °C) |
| Surge Current | 20 A for 10 ms (capacitive) |
| Switching Frequency | 30 Hz (resistive) F = 0.5/I²L (inductive) |
| Switching Capacity | 1250 VA (resistive) |
| Maximum Response Time | 10 ms (state 0 to 1) 20 ms (state 1 to 0) |
| Mechanical Durability | 10,000,000 cycles |
| Electrical Durability | 100,000 cycles (various loads) 200,000 cycles (5 A 250 V AC resistive) 50,000 cycles (500 mA 30–150 V DC resistive) |
| Output Overvoltage Protection | Internal varistor, 275 V |
| Isolation Between Channels | 1780 Vrms AC (1 min) 2500 V DC |
| Isolation: Channels to Bus | 1780 Vrms AC (1 min) 2500 V DC (1 min) |
| Power Dissipation | 2.75 W + (0.5 × number of active points) |
| Local Signalling | 1 green LED (bus active) 1 red LED (external fault) 8 green LEDs (output status) |
| Bus Current Requirement | 560 mA |
| Module Format | Standard |
| Dimensions (W × D × H) | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.3 kg (0.7 lb) |
| Certifications | CE, C-tick, GOST, GL, RMRS, FM Class 1 Div 2, ABS, DNV, RINA |
| Standards | UL 508, CSA C22.2 No. 142 |
| ESD Immunity | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Field Immunity | 9.1 V/m (80–2000 MHz, IEC 801-3) |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of contacts does the 140DRC83000 module use?
A1: It uses Form C contacts with 1 NO/NC configuration.
Q2: What is the maximum load current the module can handle?
A2: It supports up to 5 A for resistive loads at 250 V AC or DC.
Q3: How is overvoltage protection implemented?
A3: The module uses an internal 275 V varistor for overvoltage protection.
Q4: What is the switching capacity of the module?
A4: It has a maximum resistive switching capacity of 1250 VA.
Q5: What kind of isolation does this module provide?
A5: It provides 1780 Vrms AC or 2500 V DC isolation between channels and between channels and the bus.
Q6: How many discrete outputs does the module support?
A6: The module supports 8 discrete relay outputs.
Q7: What are the dimensions and weight of the module?
A7: The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.
Q8: What environmental standards does this module comply with?
A8: It meets UL 508, CSA C22.2 No. 142, FM Class 1 Div 2, and several marine certifications like ABS, DNV, and RINA.
