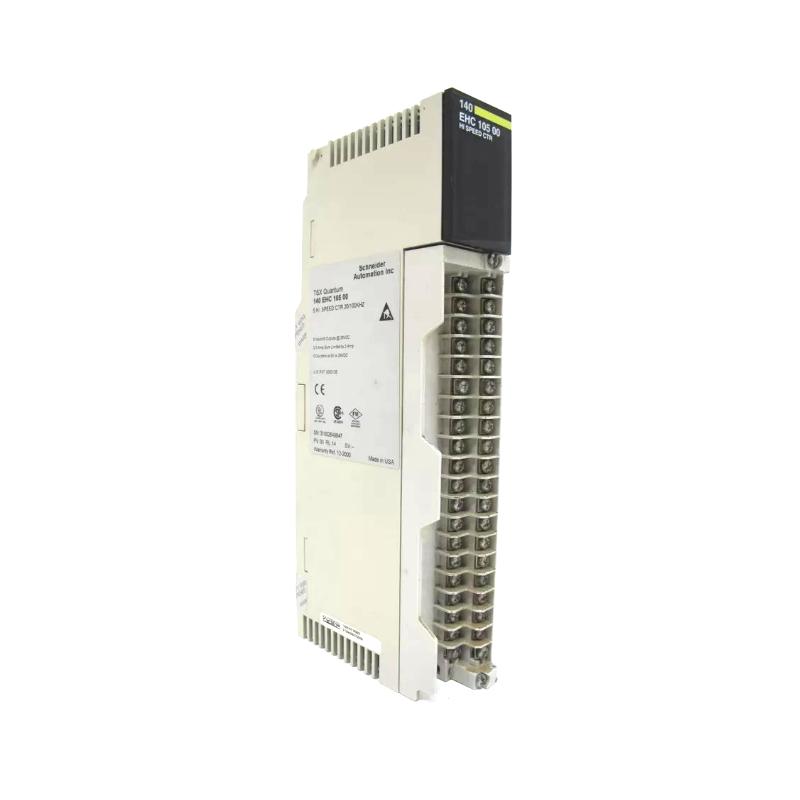

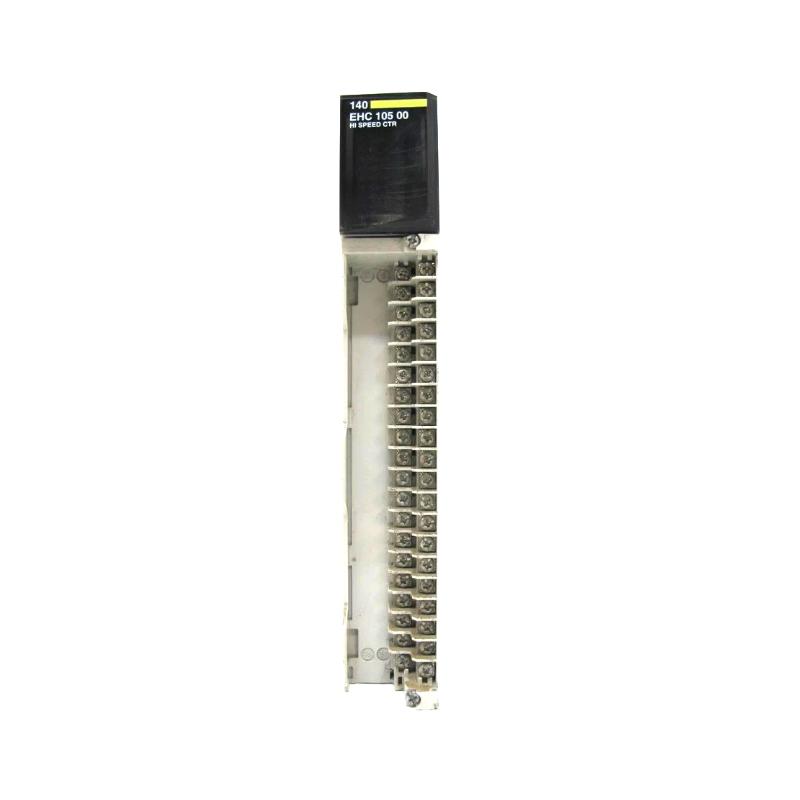

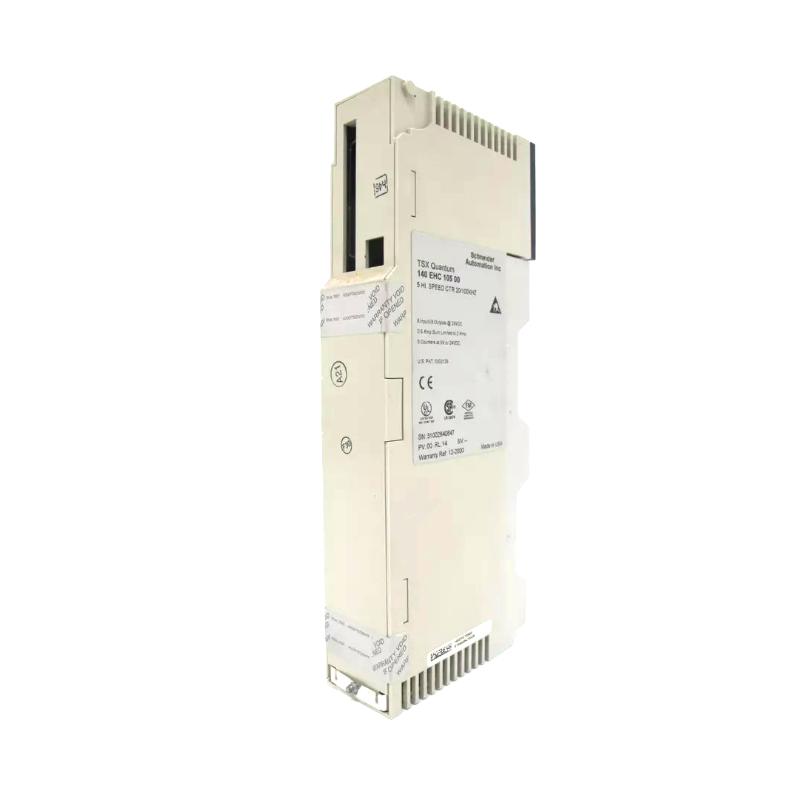

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product Type | High-speed counter module |
| Number of Channels | 5 |
| Number of Inputs | 8 |
| Addressing Requirement | 12 output words / 12 input words |
| Data Format | 2147483647 decimal (32-bit), 65535 decimal (16-bit) |
| Counting Input Voltage | 30 V DC max |
| Counting Input Current | 7 mA |
| Counting Input Type | Discrete incremental counter |
| Counting Frequency | 100,000 Hz |
| Duty Cycle | 1/1 counter input |
| Discrete Input Current | 5 mA |
| Operating Threshold | 15…30 V (ON), 3…5 V (OFF) with 24 V REF DC |
| Number of Discrete Outputs | 8 |
| Discrete Output Type | Field Effect Transistor (FET) |
| Discrete Output Voltage | 0 V (OFF), 20…30 V (ON) DC |
| Load Current | 0.21 A |
| Max Leakage Current | 0.1 mA (state OFF) |
| Max Voltage Drop | <1.25 V (state ON) |
| Isolation (Channel-Bus) | 500 Vrms for 60 seconds |
| Fault Detection | Loss of output field power |
| Output Short-Circuit Protection | Internal |
| Power Dissipation | ≥ 6 W |
| Bus Current Requirement | 250 mA |
| External Power Supply Requirement | 19.2…30 V DC |
| Rack Type | Local / Distributed / Remote |
| Local Signaling | 5 LEDs (channel status) |
| Marking | CE |
| Current Consumption | ≤ 1140 mA at 24 V DC external power |
| Module Format | Standard |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.35 kg |
| Electrostatic Discharge Immunity | 4 kV contact, 8 kV air (IEC 801-2) |
| EMI Immunity | 9.1 V/m (IEC 801-3, 80…1000 MHz) |
| Operating Temperature | 32…140 °F (0…60 °C) |
| Storage Temperature | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Standards | UL 508 |
| Certifications | RINA, UL, GOST, LR, CSA Class 1 Div 2, RRS, ABS, GL, DNV, C-tick |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many counters does the 140EHC10500 module support?
A1: The module supports five independent high-speed counters.
Q2: What is the maximum frequency it can count?
A2: It can count up to 100 kHz (100,000 Hz).
Q3: What type of outputs are used in this module?
A3: The outputs are Field Effect Transistors (FETs), suitable for fast switching.
Q4: Can the module detect loss of field power?
A4: Yes, it features fault detection for loss of output field power.
Q5: Is the module protected against short circuits on the output?
A5: Yes, it includes internal short-circuit protection.
Q6: What is the required external power supply voltage?
A6: It requires an external power supply of 19.2 to 30 V DC.
Q7: What standards and certifications does this module comply with?
A7: It complies with UL 508, CSA Class 1 Div 2, CE, and various marine certifications.
Q8: What is the typical power dissipation of this module?
A8: Power dissipation is equal to or greater than 6 W.
