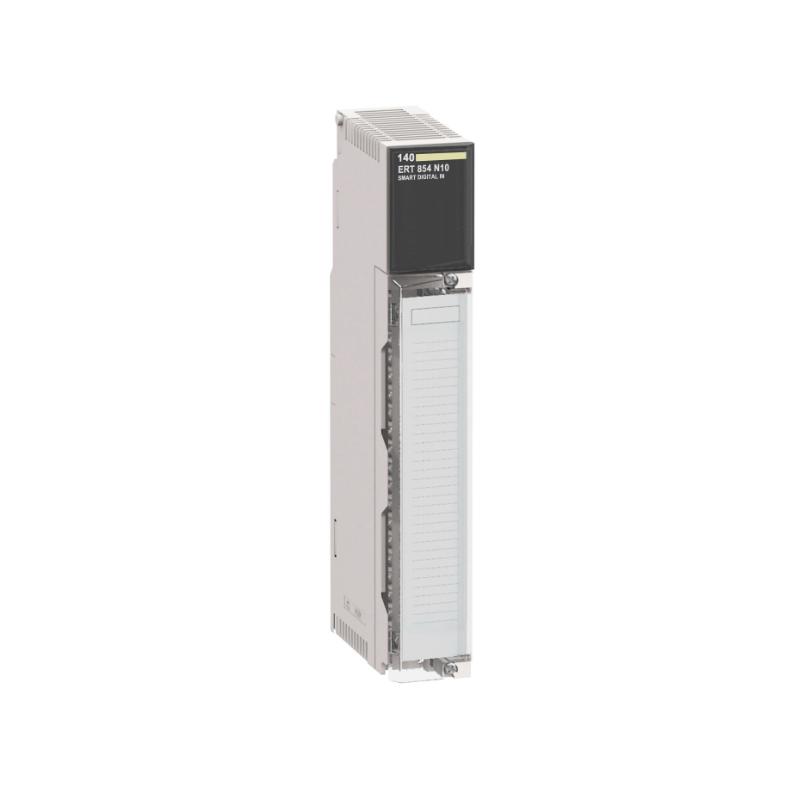

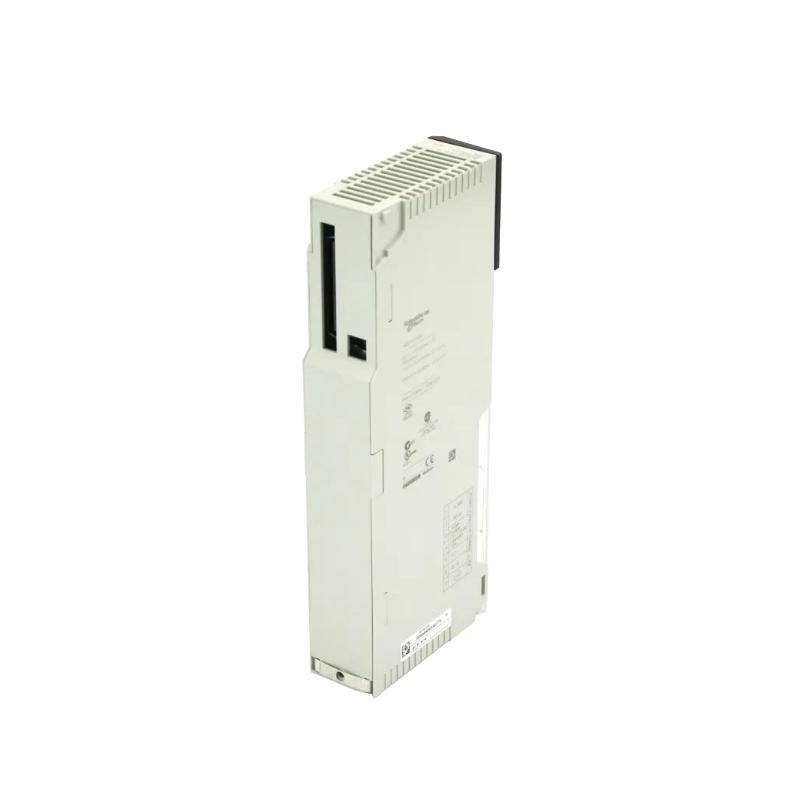

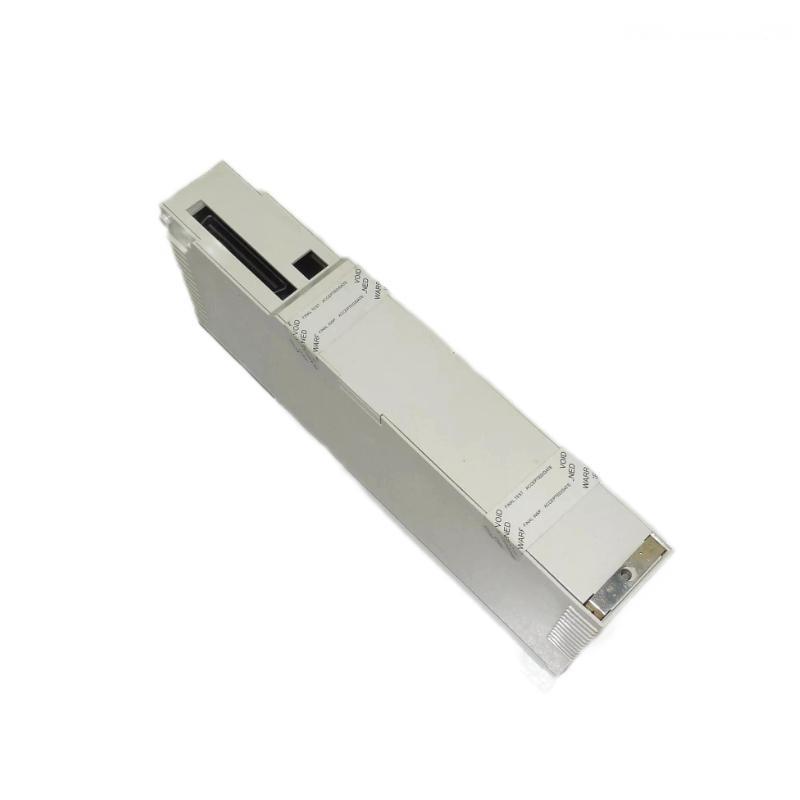

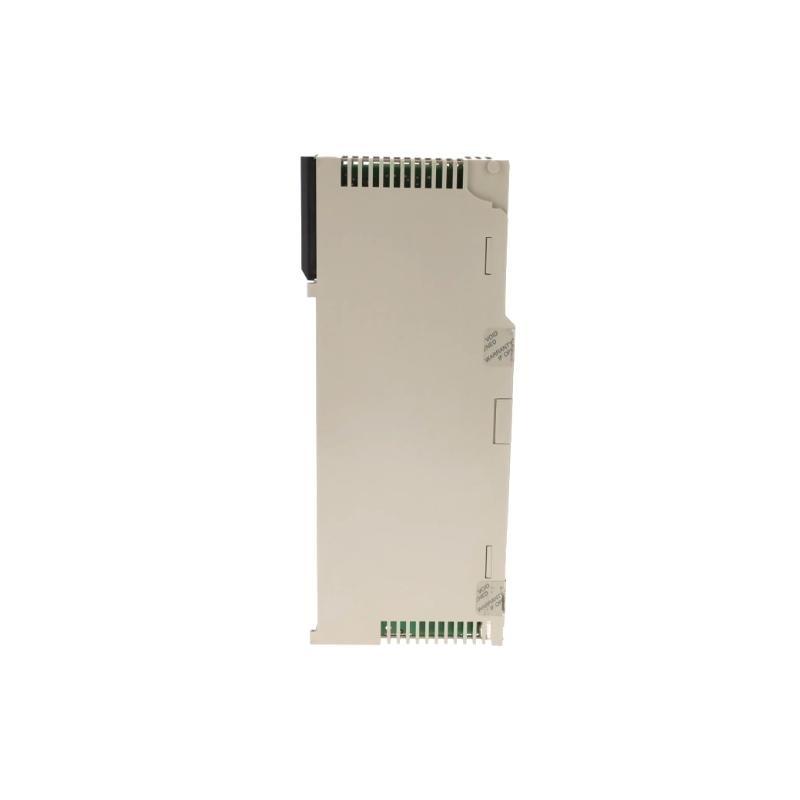

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product or Component Type | Multifunction Input Module |
| Number of Terminals | 40 |
| Function of Module | Status logging and counting (500 Hz), status monitoring, event logging |
| Time Synchronisation Protocol | DCF77 |
| Compatible Software | Concept, Unity Pro |
| Channel Groups | 2 groups of 16 discrete process inputs |
| Discrete Inputs | 1 clock input (24 V), 32 process inputs (24…125 V) |
| Switching Voltage | 24 V @ 6 mA, 48 V @ 2.5 mA, 60 V @ 2.5 mA, 125 V @ 1 mA |
| Max Power Consumption | 7.5 W (process input) |
| Insulation Method | Optocoupler (clock input and between groups) |
| Anti-Bounce Filtering | Configurable from 0 to 255 ms |
| Input State Configuration | Input inversion configurable |
| Acquisition Time | 1 ms (clock input) |
| Clock Input Current | 5 mA |
| Electrical Connection | Shielded cable <600 m, unshielded cable <400 m (process input) |
| Terminal Type | Screw terminal block |
| Local Signaling | – 1 green LED: bus communication active – 1 green LED: module ready (R) – 1 red LED: fault (F) – 32 LEDs for input status (1 to 32) |
| Current Consumption | – 0.07 mA @ 24 VDC (140XCP90000 module) – 3 mA @ 24…125 VDC per input group – 300 mA @ 5 VDC (bus) |
| Module Format | Standard |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.45 kg |
| Electrostatic Discharge | 4 kV (contact), 8 kV (air) per IEC 801-2 |
| Electromagnetic Field Resistance | 10 V/m (80–2000 MHz) per IEC 801-3 |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m |
| Protective Treatment | TC |
| Standards | HazLoc, UL 508 |
| Certifications | CSA Class 1 Div 2, UL, LR, C-Tick, GOST, Merchant Navy |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the 140ERT85410 module?
A1: It performs discrete input monitoring, event logging with time stamping, and high-speed counting up to 500 Hz.
Q2: How many discrete inputs are supported?
A2: The module supports 32 discrete process inputs and 1 clock input.
Q3: What type of input signal is supported?
A3: It supports 24 to 125 VDC discrete signals for process inputs and a 24 VDC clock signal.
Q4: What is the filtering capability for signal debouncing?
A4: The anti-bounce filtering is configurable from 0 to 255 ms.
Q5: Can this module operate in high-altitude environments?
A5: Yes, it operates up to 5000 meters above sea level.
Q6: What are the electrical insulation methods used?
A6: It uses optocoupler insulation for both the clock input and between input groups.
Q7: What certifications does the 140ERT85410 module hold?
A7: It holds CSA Class 1 Div 2, UL, LR, C-Tick, GOST, and Merchant Navy certifications.
Q8: What is the physical size and weight of the module?
A8: The dimensions are 103.9 × 40.3 × 250 mm, and the weight is 0.45 kg.
