Technical Specifications
| Parameter | Description |
|---|---|
| Product Range | Modicon Quantum automation platform |
| Product Type | Ethernet network TCP/IP module |
| Concept | Transparent Ready, Web Server, Class B20, Web Services |
| Functions | Rack viewer, diagnostics via predefined web pages, data editor via PC |
| Communication Services | Modbus TCP messaging, I/O scanning |
| Protocol | Ethernet Modbus TCP/IP |
| Physical Interfaces | MT/RJ (100BASE-FX fiber optic), RJ45 (10BASE-T/100BASE-TX twisted pair) |
| Transmission Rate | 10/100 Mbit/s |
| Redundancy Support | Yes, hot standby redundant architecture |
| Power Supply | Supplied via rack’s power supply |
| Current Consumption | 750 mA at 5 V DC |
| Module Format | Standard |
| Local Signaling LEDs | Data rate (10/100 Mbps), Collision (Coll), Download (Kernel), Fault, Run, Full Duplex (Fduplex), Ready, Link, Active, Tx/Rx Activity |
| Marking | CE |
| Certifications | UL 508, cUL, FM Class 1 Division 2, CSA C22.2 No 142 |
| Protection Rating | IP20 |
| ESD Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| EMC Resistance | 10 V/m (80…1000 MHz) IEC 801-3 |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% without condensation |
| Maximum Operating Altitude | ≤ 4500 m (14763.78 ft) |
| Dimensions (W × D × H) | 103.9 × 40.3 × 250 mm |
| Net Weight | 0.345 kg (0.761 lb) |
FAQ
FAQ (Q&A Format)
Q1: What is the primary function of the 140NOE77100 module?
A1: It enables Ethernet TCP/IP communication for the Modicon Quantum platform, supporting Modbus TCP messaging and I/O scanning.
Q2: Does the 140NOE77100 support redundancy?
A2: Yes, it supports hot standby redundant architecture.

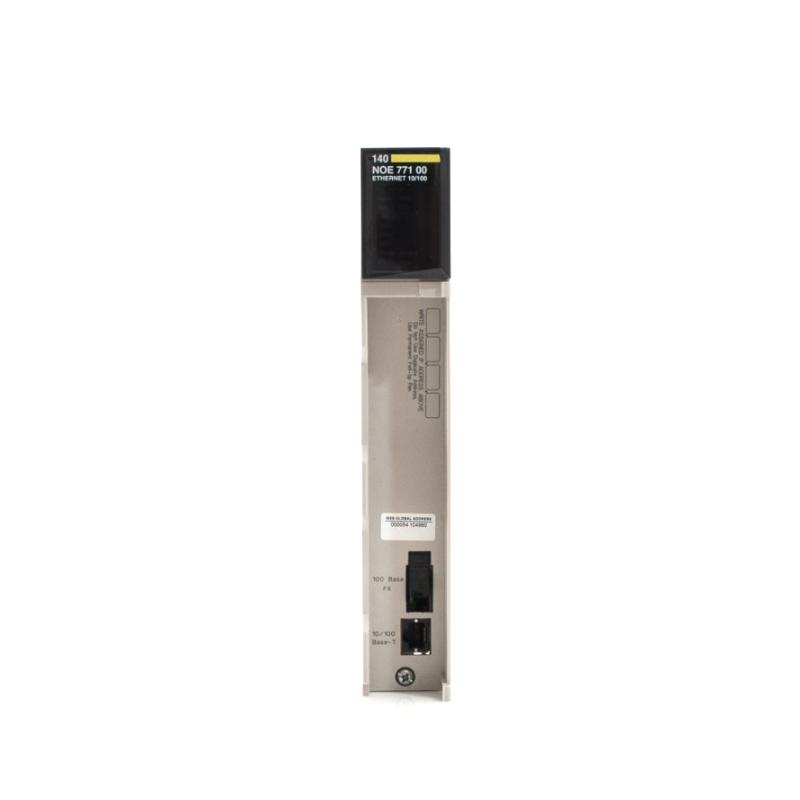

Q3: What types of physical interfaces are available on this module?
A3: It includes MT/RJ for 100BASE-FX fiber optic and RJ45 for 10/100BASE-TX twisted pair.
Q4: How is the module powered?
A4: It is powered through the rack’s power supply.
Q5: What is the transmission speed of the Ethernet ports?
A5: It supports both 10 Mbit/s and 100 Mbit/s.
Q6: What is the IP rating of the 140NOE77100?
A6: The module is rated IP20, suitable for use in control cabinets.
Q7: What certifications does this module have?
A7: UL 508, cUL, FM Class 1 Division 2, CSA C22.2 No 142.
Q8: What diagnostic features are available?
A8: It provides diagnostics via predefined web pages and includes multiple LED indicators for link, activity, errors, and status.
