Technical Specifications
| Parameter | Description |
|---|---|

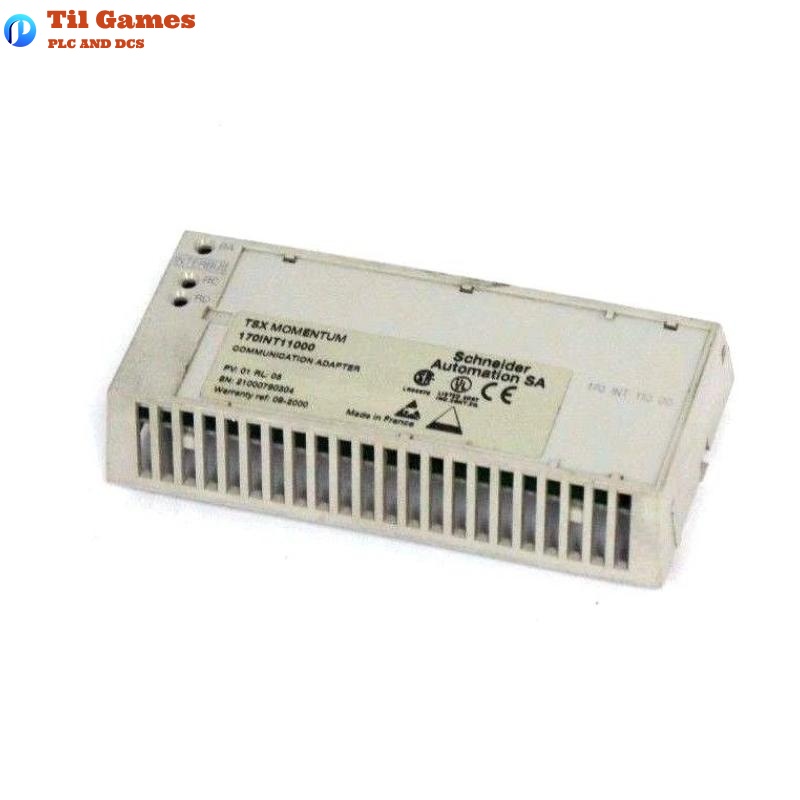

| Product Type | Interbus Communication Adaptor |
| Range of Product | Modicon Momentum Automation Platform |
| Communication Protocol | Interbus Generation SUPI 2 |
| Method of Access | Continuous Shift Register, Master/Slave |
| Transmission Rate | 500 kbit/s |
| Transmission Medium | Twisted Pair |
| Topology | Ring |
| Number of Devices per Segment | 0 to 254 |
| Max Cable Distance (Device-Device) | 400 m |
| Max Cable Distance (Total) | 12,800 m |
| Fail State | Fail Safe |
| Control Parameter | CRC-16 |

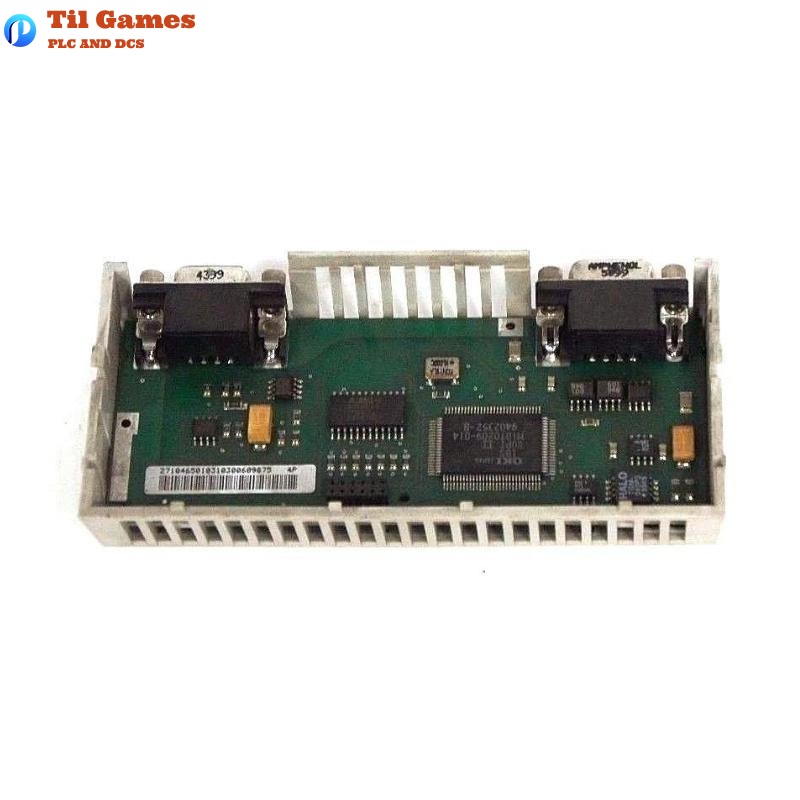

| Electrical Connection | 2 x SUB-D 9 (D-sub DE-09) Connectors |
| Module Format | Standard |

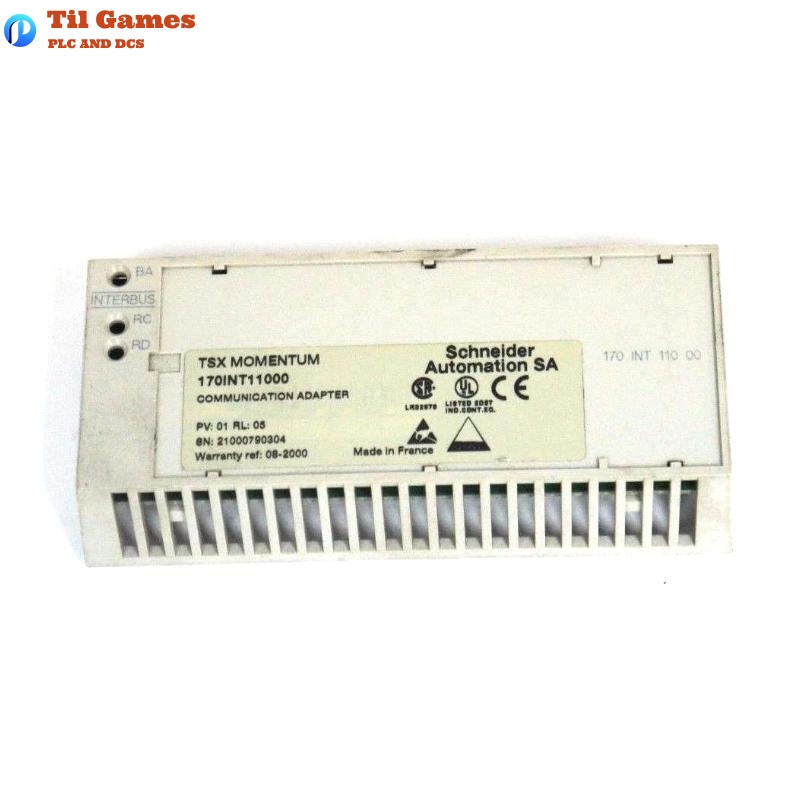

| Local Signaling | 3 Green LEDs (BA, RC, RD) |
| Supply | From I/O Base |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 47.5 x 125 x 141.5 mm |
| Net Weight | 0.07 kg |
| Protective Treatment | TC |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 95% Non-condensing |
| Operating Altitude | ≤ 5000 m |
| ESD Resistance | 4 kV Contact, 8 kV Air (IEC 801-2) |
| Electromagnetic Field Resistance | 10 V/m (80 to 1000 MHz, IEC 801-3) |
| Certifications | CE, UL, FM Class 1 Div 2, CSA |
FAQ
FAQ
Q1: What is the communication protocol used by the 170INT11000 module?
A1: The module uses the Interbus protocol, specifically generation SUPI 2.
Q2: How many devices can be connected in one Interbus segment?
A2: Up to 254 devices can be connected per segment.
Q3: What is the maximum transmission distance supported?
A3: The maximum total distance is 12,800 meters, with a limit of 400 meters between two modules.
Q4: What kind of connector is used for Interbus communication?
A4: Two D-sub DE-09 (SUB-D 9) connectors are used.
Q5: Is this adaptor suitable for harsh environments?
A5: It has IP20 protection and is tested for ESD and electromagnetic field resistance, but it should be used in indoor, controlled environments.
Q6: What are the LED indicators on the module used for?
A6: They indicate bus enable (BA), remote bus check (RC), and remote bus disabled (RD).
Q7: What are the module’s dimensions and weight?
A7: The dimensions are 47.5 x 125 x 141.5 mm and the weight is 0.07 kg.
Q8: What standards and certifications does the module comply with?
A8: It complies with CE, UL, FM Class 1 Division 2, and CSA standards.
