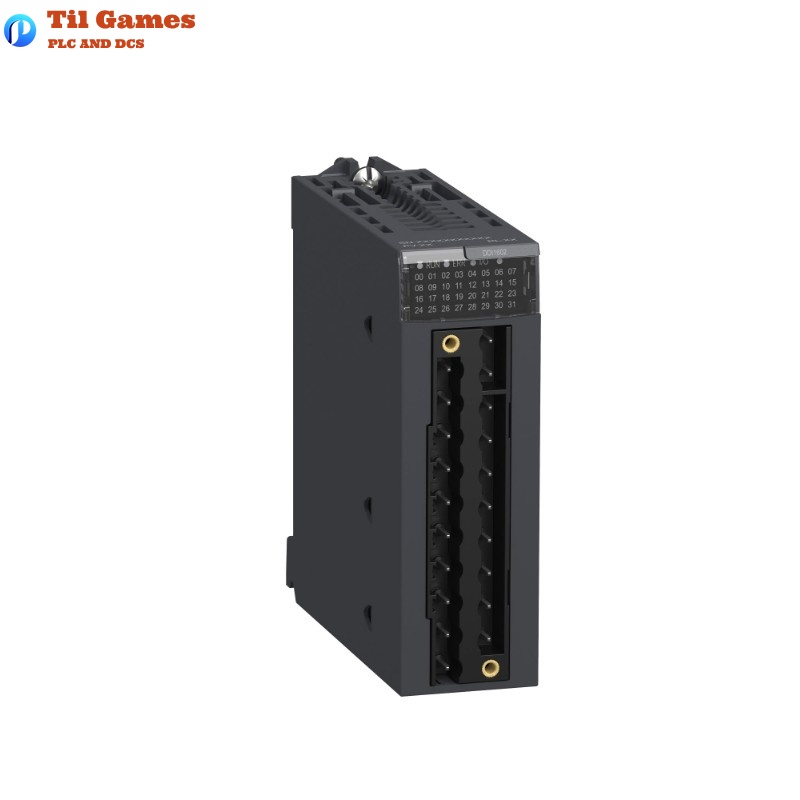

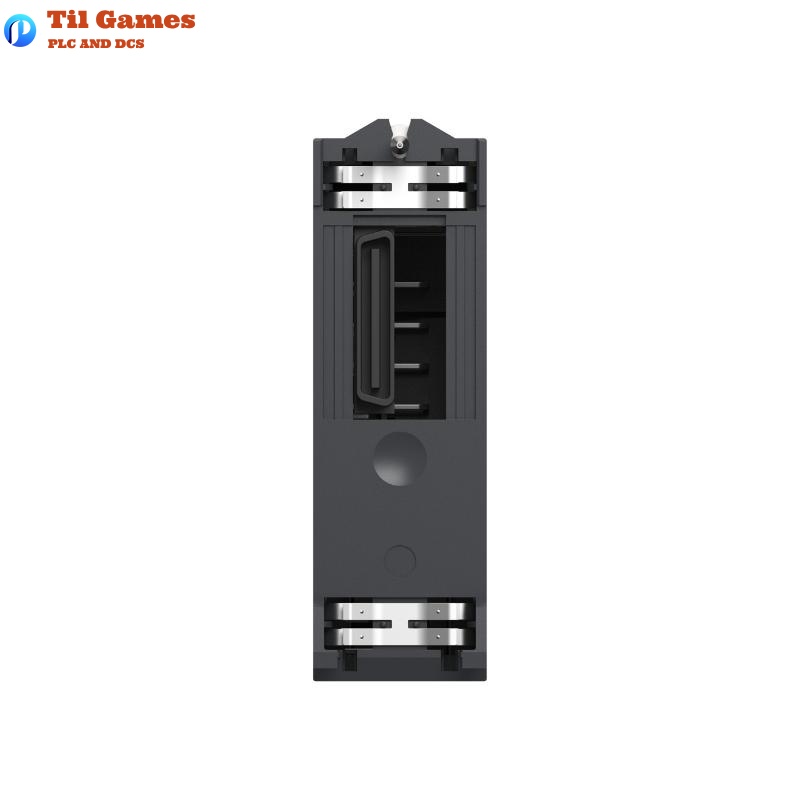

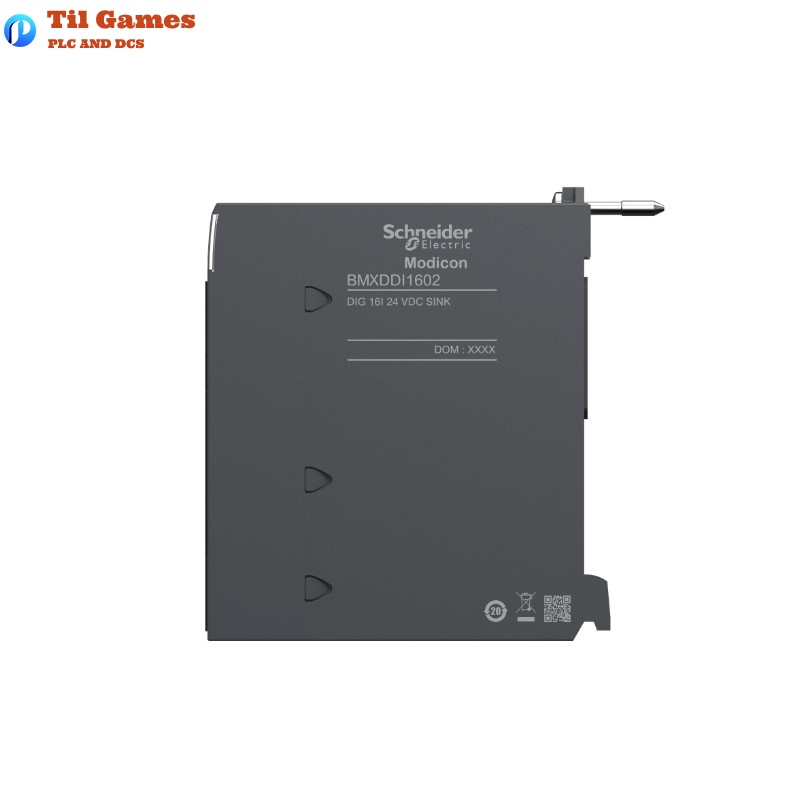

Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Discrete Input Module |
| Range of Product | Modicon X80 |
| Input Type | Isolated |
| Number of Discrete Inputs | 16 |
| Input Signal Type | Current sink (logic positive) |
| Rated Input Voltage | 24 V DC positive |
| Input Current per Channel | 3.5 mA |
| Input Impedance | 6800 Ohm |
| Input Compatibility | 2-wire/3-wire proximity sensors IEC 60947-5-2 / IEC 61131-2 type 3 |
| Sensor Power Supply | 19…30 V |
| Guaranteed State 1 Current | ≥ 2 mA |
| Guaranteed State 0 Current | ≤ 1.5 mA |
| Voltage Detection Threshold | < 14 V DC (sensor fault), > 18 V DC (sensor OK) |
| DC Typical Response Time | 4 ms |
| DC Maximum Response Time | 7 ms |
| Input Paralleling | Yes |
| Status Indicators | 1 green (RUN), 16 green (channel diagnostics), 1 red (ERR), 1 red (I/O) |
| Protection Type | Reverse polarity protection, 1 external fuse per group (0.5 A fast) |
| Typical Current Consumption | 76 mA at 3.3 V DC |
| Power Dissipation | 2.5 W |
| MTBF (Mean Time Between Failures) | 775,000 hours |
| Dielectric Strength | 1500 V AC, 50/60 Hz, 1 min (primary/secondary) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Protection Rating (IP) | IP20 |
| Ambient Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95 % at 55 °C (without condensation) |
| Operating Altitude | 0…2000 m (6561.68 ft), up to 5000 m with derating |
| Standards Compliance | 2014/35/EU (LVD), 2014/30/EU (EMC) |
| Fungal Resistance Class | 3B2 |
| Dimensions | 160 x 100 x 35 mm |
| Net Weight | 0.115 kg (0.254 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input type of the BMXDDI1602 module?
A1: The input type is isolated and uses current sink (logic positive) configuration.
Q2: How many discrete input channels does this module have?
A2: It has 16 discrete input channels.
Q3: What voltage and current are required for input operation?
A3: It requires 24 V DC positive and 3.5 mA per input channel.
Q4: Is the module compatible with proximity sensors?
A4: Yes, it is compatible with 2-wire and 3-wire proximity sensors compliant with IEC 60947-5-2 and IEC 61131-2 type 3.
Q5: Can inputs be paralleled in this module?
A5: Yes, the inputs can be paralleled.
Q6: What is the response time for DC signals?
A6: Typical response time is 4 ms, and the maximum is 7 ms.
Q7: What kind of protection does the module provide?
A7: It has reverse polarity protection and requires one external 0.5 A fast-blow fuse per channel group.
Q8: What are the module’s dimensions and weight?
A8: Dimensions are 160 x 100 x 35 mm, and it weighs 0.115 kg.
