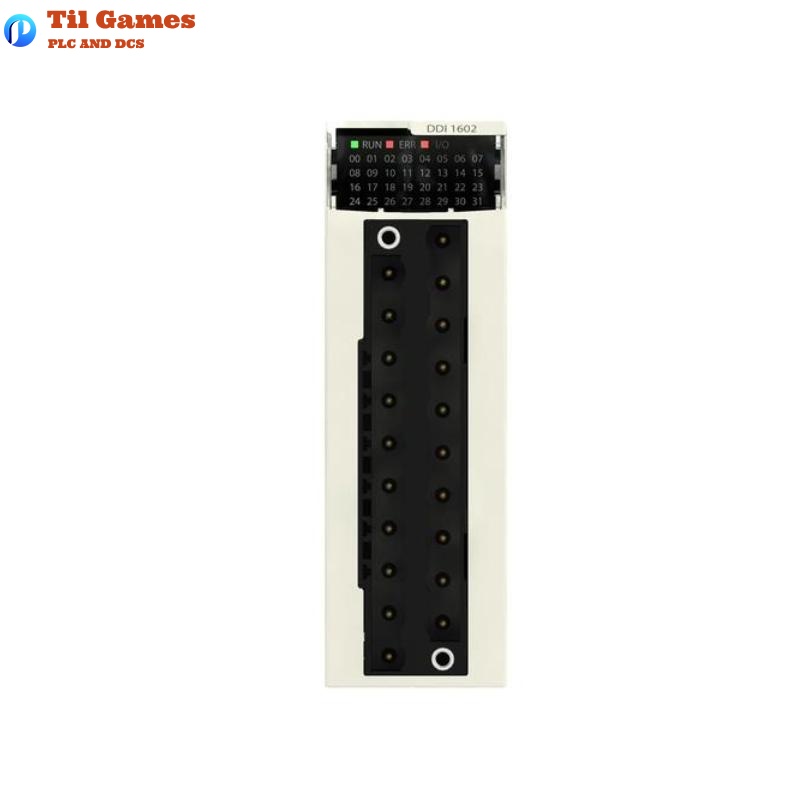

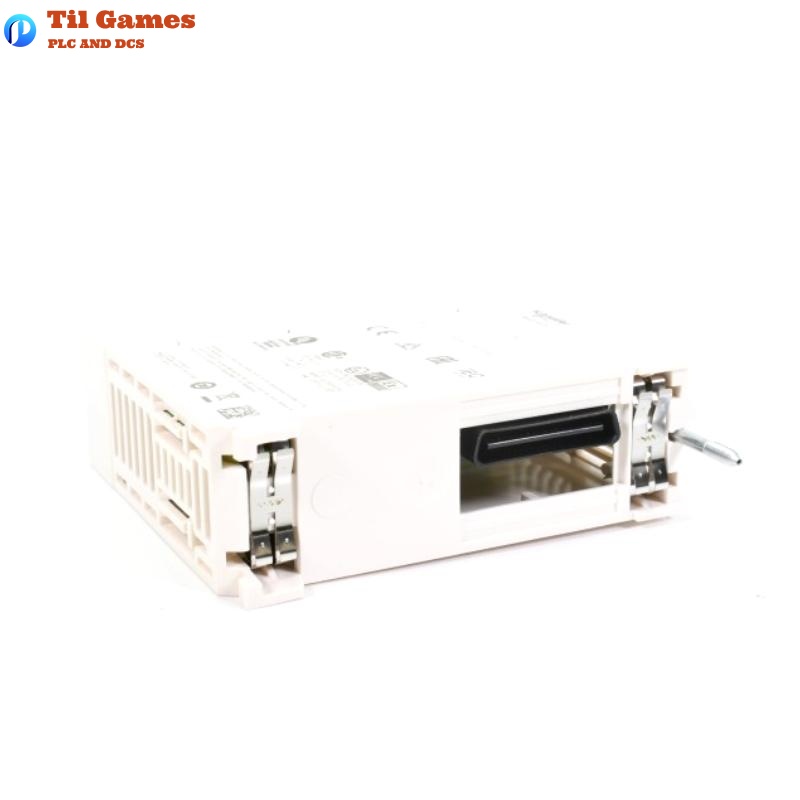

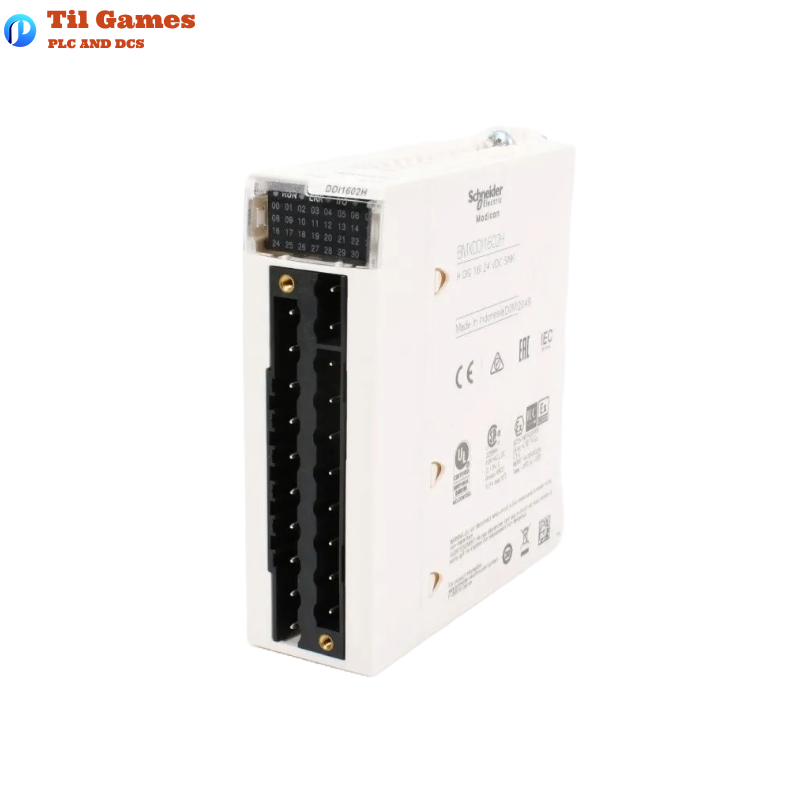

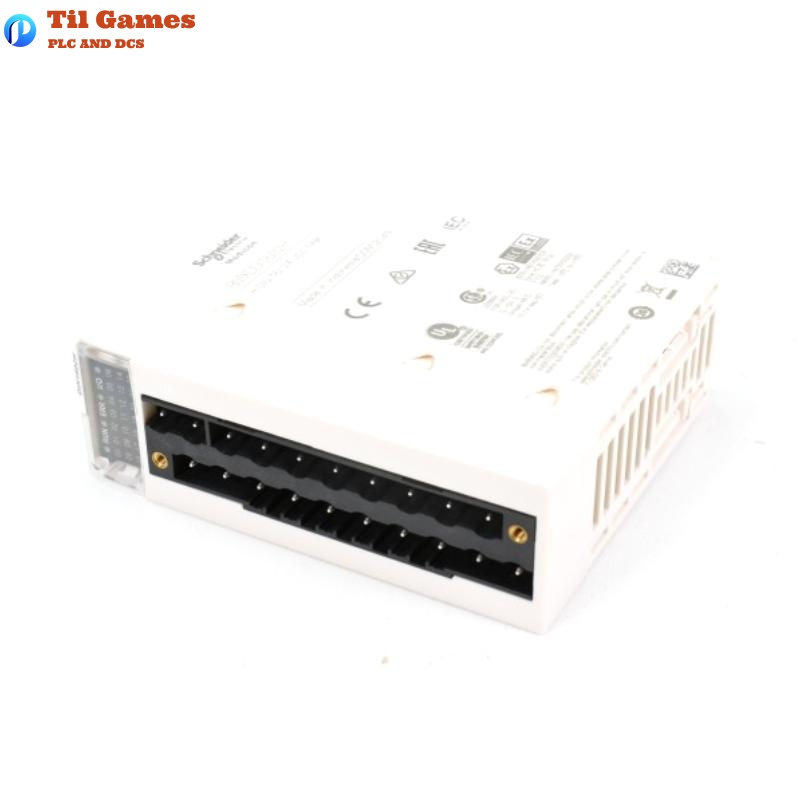

Technical Specifications
| Parameter | Value |
|---|---|
| Product Range | Modicon X80 |
| Product Type | Discrete Input Module |
| Application | For severe environments |
| Number of Inputs | 16 |
| Input Type | Current sink (positive logic) |
| Input Voltage | 24 V DC |
| Input Current | 3.5 mA |
| Input Impedance | 6800 Ohm |
| Isolation Between Channels | Yes |
| Insulation Resistance | > 10 MΩ @ 500 V DC |
| Power Dissipation | 2.5 W |
| Typical Current Consumption | 76 mA @ 3.3 V DC |
| MTBF | 775,000 hours |
| Sensor Compatibility | 2-wire/3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 |
| Sensor Supply Voltage | 19–30 V (at 60 °C), 21.1–26.4 V (at 70 °C) |
| Voltage Detection Threshold | < 14 V (Sensor fault), > 18 V (Sensor OK) |
| Current State 1 Guaranteed | ≥ 2 mA |
| Current State 0 Guaranteed | ≤ 1.5 mA |
| Response Time (Typical/Max) | 4 ms / 7 ms |
| Parallel Inputs | Supported |
| Protection | Reverse polarity, 0.5 A fast-blow fuse per channel group |
| LED Indicators | Module RUN (Green), ERR (Red), I/O (Red), Channel Status (Green) |
| IP Rating | IP20 |
| Standards Compliance | IEC 61131-2, CSA C22.2 No.142/213, UL 508 |
| Certifications | CE, UL, CSA, ATEX, IECEx, RCM, EAC, Merchant Navy |
| Protective Treatment | Conformal Coating |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Dielectric Strength | 1500 V AC (Primary/Secondary) for 1 minute |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% (55°C, non-condensing) |
| Altitude | 0–2000 m; 2000–5000 m with derating |
| Environmental Resistance | Gas Gx, Dust 3S4, Salt Level 2, Mold 3B2, Fungus 3B2, Sand 3S4 |
| Dimensions (W x H x D) | 160 x 100 x 35 mm |
| Net Weight | 0.115 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of logic is used for the inputs on the BMXDDI1602H?
A1: The module uses current sink input logic with positive voltage logic.
Q2: Is the BMXDDI1602H compatible with proximity sensors?
A2: Yes, it supports 2-wire and 3-wire proximity sensors that comply with IEC 60947-5-2 and IEC 61131-2 standards.
Q3: What is the maximum allowable input voltage?
A3: The input voltage is nominally 24 V DC, with sensor supply voltage ranging from 19 to 30 V.
Q4: Does the module provide input isolation?
A4: Yes, the module features isolation between channels.
Q5: What protections are integrated into the BMXDDI1602H?
A5: It includes reverse polarity protection and a fast-blow 0.5 A fuse per group of channels.
Q6: What is the response time of the input channels?
A6: The typical response time is 4 ms, and the maximum is 7 ms.
Q7: What certifications does this module meet?
A7: It is certified by CE, UL, CSA, ATEX, IECEx, RCM, EAC, and the Merchant Navy.
Q8: What is the MTBF (Mean Time Between Failures) for the module?
A8: The MTBF is approximately 775,000 hours.
