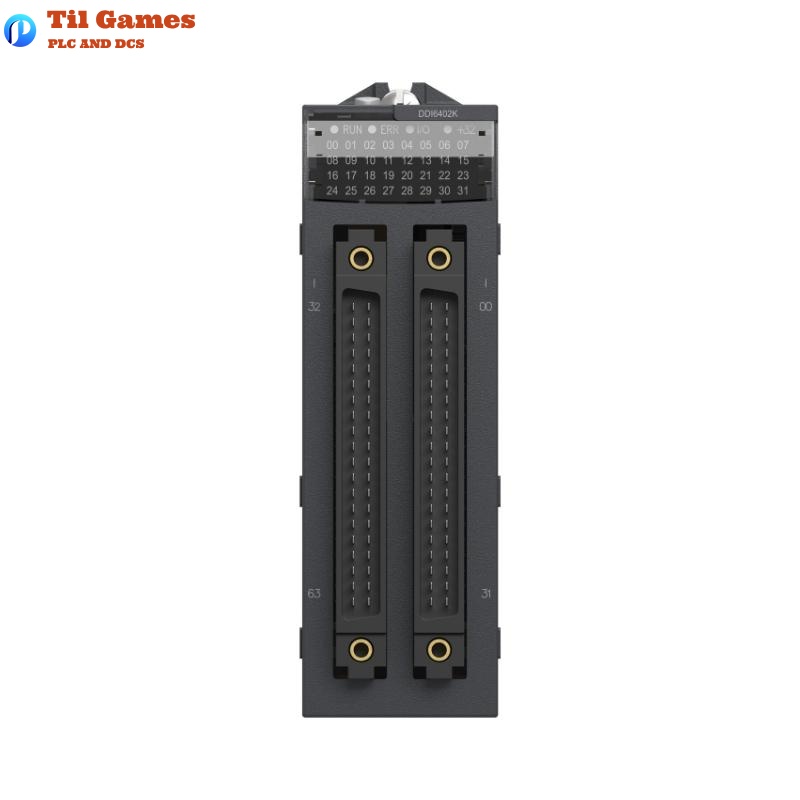

Schneider BMXDDI6402K Technical Specifications
| Parameter | Details |
|---|---|
| Product Range | Modicon X80 |
| Type | Discrete Input Module |
| Number of Inputs | 64 |
| Input Type | Isolated, Current Sink (Logic Positive) |
| Input Voltage | 24 V DC Positive |
| Input Current | 0.6 mA |
| Sensor Power Supply | 19…30 V |
| Input Impedance | 40000 Ω |
| Insulation Resistance | > 10 MΩ (500 V DC) |
| Power Dissipation | 4.3 W |
| Typical Response Time (DC) | 4 ms |
| Maximum Response Time (DC) | 7 ms |
| Paralleling of Inputs | Not Supported |
| Typical Current Consumption | 160 mA (3.3 V DC) |
| MTBF Reliability | 510,000 hours |
| Protection Type | 1 external 0.5 A fast-blow fuse per group, no reverse polarity protection |
| Voltage Detection Threshold | < 14 V DC (sensor fault); > 18 V DC (sensor OK) |
| Status LEDs | 1 RUN (Green), 1 ERR (Red), 32 channel indicators (Green), per-channel diagnostics (Green), I/O indicator (Red) |
| IP Degree of Protection | IP20 |
| Dimensions | 160 x 100 x 35 mm |
| Net Weight | 0.145 kg |
| Dielectric Strength | 1500 V AC (50/60 Hz, 1 min, primary/secondary); 500 V DC (1 min, between channel groups) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40…85 °C |
| Operating Temperature | 0…60 °C |
| Relative Humidity | 5…95% (up to 55°C, non-condensing) |
| Operating Altitude | 0…2000 m (no derating), 2000…5000 m (with derating) |
FAQ
Schneider BMXDDI6402K FAQ
Q1: How many discrete input channels does the module support?
A1: This module supports 64 isolated discrete input channels.
Q2: What is the input type for this module?
A2: The input type is current sink (logic positive), suitable for 24 V DC positive signals.
Q3: What is the operating voltage range for this module?
A3: The input voltage is 24 V DC; the sensor power supply supports 19 to 30 V.
Q4: Does this module support paralleling of input channels?
A4: Paralleling of inputs is not supported.
Q5: What is the response time for the inputs?
A5: The typical response time is 4 ms, with a maximum of 7 ms.
Q6: Does this module have overcurrent protection?
A6: Each group requires an external 0.5A fast-blow fuse; there is no reverse polarity protection.
Q7: What are the dimensions and weight of this module?
A7: The dimensions are 160 x 100 x 35 mm, and the weight is 0.145 kg.
Q8: What is the operating temperature range of this module?
A8: The operating temperature range is 0 to 60°C; storage temperature is -40 to 85°C.
