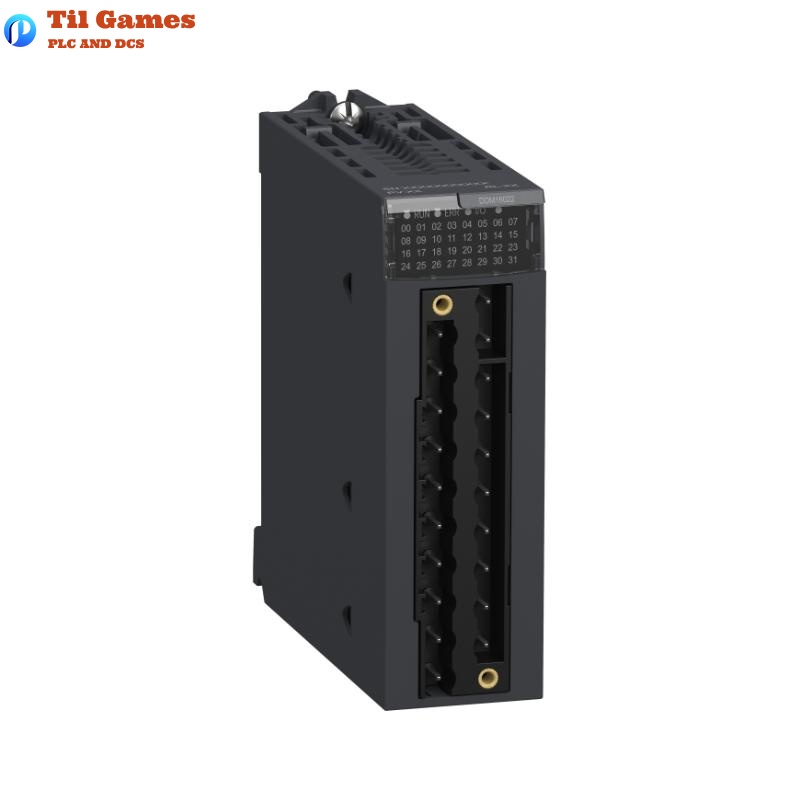

Technical Specifications

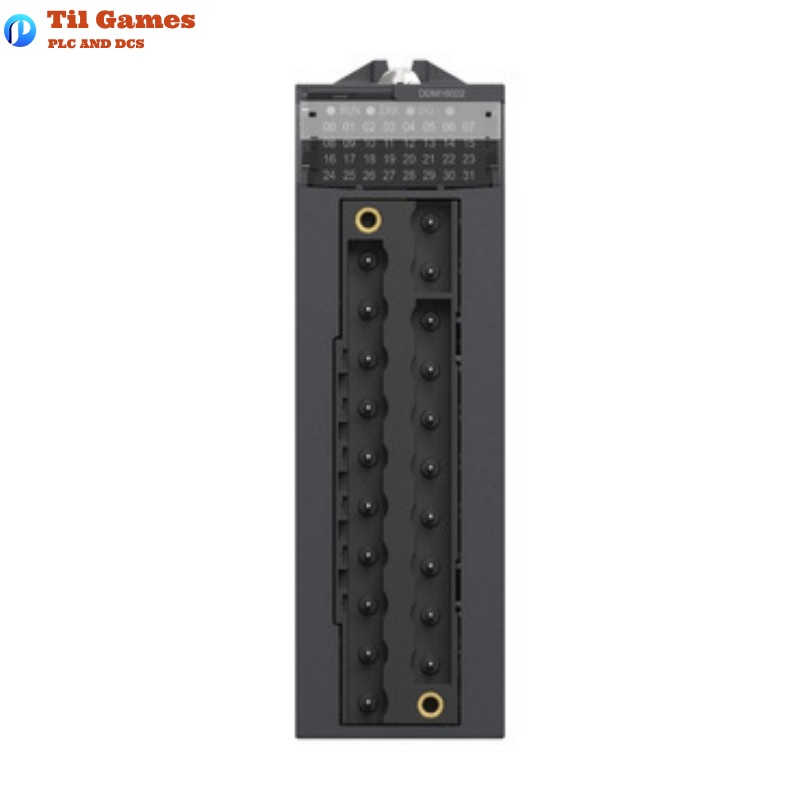

| Parameter | Value |
|---|---|
| Product Range | Modicon X80 |
| Product Type | Discrete Mixed I/O Module |
| Number of Inputs | 8 |
| Input Type | Current sink (logic positive) |
| Input Voltage | 24 V DC positive |
| Input Current | 3.5 mA |
| Number of Outputs | 8 |
| Output Type | Solid state |
| Output Voltage | 24 V DC (19–30 V) |
| Output Current | 0.5 A |
| Input Compatibility | 2-wire/3-wire proximity sensors IEC 60947-5-2/IEC 61131-2 type 3 |
| Sensor Power Supply | 19–30 V |
| Guaranteed State 1 Current | ≥ 3 mA |
| Guaranteed State 0 Current | ≤ 1.5 mA |
| Max Current per Channel | 0.625 A |
| Max Current per Module | 5 A |
| Max Leakage Current | 0.5 mA (state 0) |
| Max Voltage Drop | <1.2 V (state 1) |
| Input Impedance | 6800 Ohm |
| Insulation Resistance | >10 MOhm (500 V DC) |
| Power Dissipation | 3.7 W |
| Typical DC Response Time | 4 ms |
| Max DC Response Time | 7 ms |
| Output Response Time | 1.2 ms |
| Output Paralleling | Yes, max 2 channels |
| Typical Current Consumption | 79 mA (3.3 V DC), 59 mA (24 V DC) |
| Max Current Consumption | ≤111 mA (3.3 V DC), ≤67 mA (24 V DC) |
| MTBF Reliability | 450,000 h |
| Protection Type | 0.5 A fast blow fuse per input group |
| Output Overvoltage Protection | With transil diode |
| Input Reverse Polarity Protection | Yes |
| Output Reverse Polarity Protection | Yes |
| Output Overload Protection | Current limiter and electronic circuit breaker |
| Output Short-Circuit Protection | 2 A external fuse |
| Voltage Detection Threshold | <14 V DC (fault), >18 V DC (OK) |
| Max Tungsten Load | 6 W |
| Max Overload Time | 15 ms |
| Load Impedance | ≥48 Ohm |
| Status Indicators | 1 Green LED (RUN), 1 Red LED (ERR), 1 Green LED per channel (diagnostic), 1 Red LED (I/O error) |
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.115 kg |
| IP Degree of Protection | IP20 |
| Dielectric Strength | 1500 V AC 1 min (output/ground, output/internal logic, primary/secondary), 500 V DC 1 min (input/output group) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40…85°C |
| Operating Temperature | 0…60°C |
| Relative Humidity | 5–95% (55°C, non-condensing) |
| Operating Altitude | 0–2000 m, 2000–5000 m with derating |
FAQ
Schneider BMXDDM16022 Discrete Mixed I/O Module Frequently Asked Questions
Q1: What types of proximity sensors are supported by BMXDDM16022?
A1: It supports 2-wire and 3-wire proximity sensors compliant with IEC 60947-5-2 and IEC 61131-2 type 3.
Q2: What is the maximum output current per channel?
A2: The maximum output current per channel is 0.5A.
Q3: What is the input and output voltage range for the module?
A3: Input voltage is 24 V DC (positive), output voltage range is 19–30 V DC.
Q4: Does the module have short-circuit and overload protection?
A4: Yes, it features current limiting, an electronic circuit breaker, and requires a 2A external fuse for short-circuit protection.
Q5: What are the module’s dimensions and weight?
A5: The dimensions are 160 x 100 x 35 mm, and the weight is 0.115 kg.
Q6: What is the operating temperature range for this module?
A6: The operating temperature range is 0–60°C, and storage temperature is -40–85°C.
Q7: Can the output channels be paralleled?
A7: Yes, up to 2 output channels can be paralleled.
Q8: What is the typical power consumption of the module?
A8: Typical power dissipation is 3.7 W; typical current consumption is 79 mA (3.3 V DC) and 59 mA (24 V DC).
