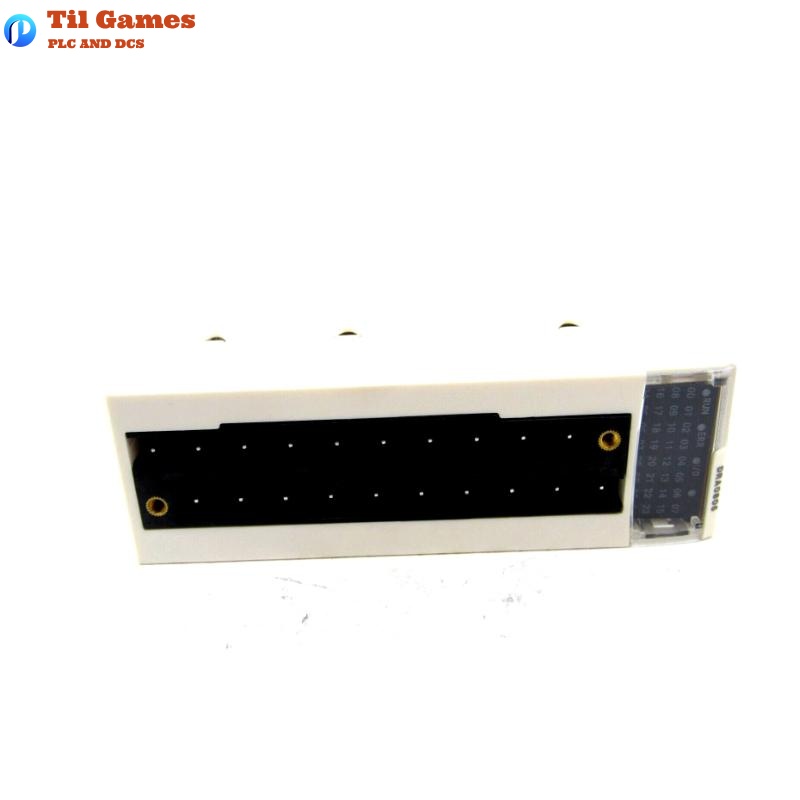

Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon X80 |
| Product Type | Discrete Output Module (Relay) |
| Output Channels | 8 channels (compliant with EN/IEC 61131-2) |
| Output Type | Relay |
| Output Voltage (AC) | 24…240 V AC (19…264 V AC) |
| Output Voltage (DC) | 12…24 V DC (10…34 V DC) |
| Conventional Air Current | 3 A |
| Insulation Resistance | > 10 MΩ (500 V DC) |
| Power Dissipation | 2.7 W |
| Response Time | < 10 ms (ON), < 8 ms (OFF) |
| Typical Current Consumption | 79 mA (3.3 V DC) |
| MTBF Reliability | 2,119,902 hours |
| Output Overload Protection | Use 1 fast blow fuse per channel or channel group |
| Output Overvoltage Protection | DC: Discharge diode per output AC: RC circuit & ZNO surge limiter per output |
| Output Short-Circuit Protection | Use 1 fast blow fuse per channel or channel group |
| Minimum Switching Current | 10 mA (5 V DC) |
| Electrical Durability | Various AC-12/AC-15/DC-12/DC-13 duty cycles, see datasheet |
| Status LED | RUN (green), Channel Diagnostic (green), Module Error (red), Module I/O (red) |
| Protection Rating | IP20 |
| Dielectric Strength | 2000 V AC, 50/60 Hz, 1 min |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Storage Temperature | -40…85°C |
| Operating Temperature | 0…60°C |
| Relative Humidity | 5…95 % (non-condensing) |
| Operating Altitude | 0…2000 m (normal), 2000…5000 m (with derating) |
| Dimensions | 160 x 100 x 35 mm |
| Weight | 0.145 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the BMXDRA0805 module support?
A1: This module supports 8 relay output channels.
Q2: What is the output voltage range supported by this module?
A2: AC output voltage range is 24–240 V AC (19–264 V AC); DC output voltage range is 12–24 V DC (10–34 V DC).
Q3: What is the maximum output current per channel?
A3: The maximum output current per channel is 3 A.
Q4: Is additional overload or short-circuit protection required?
A4: Yes, a fast blow fuse should be used for each channel or group of channels.
Q5: What is the operating temperature range for this module?
A5: The operating temperature range is 0 to 60°C.
Q6: What are the module’s dimensions and weight?
A6: The dimensions are 160 x 100 x 35 mm and the weight is 0.145 kg.
Q7: Does the module have status indication LEDs?
A7: Yes, it provides LEDs for module operation, per channel diagnostics, errors, and I/O status.
Q8: What is the protection rating of this module?
A8: The protection rating is IP20.
