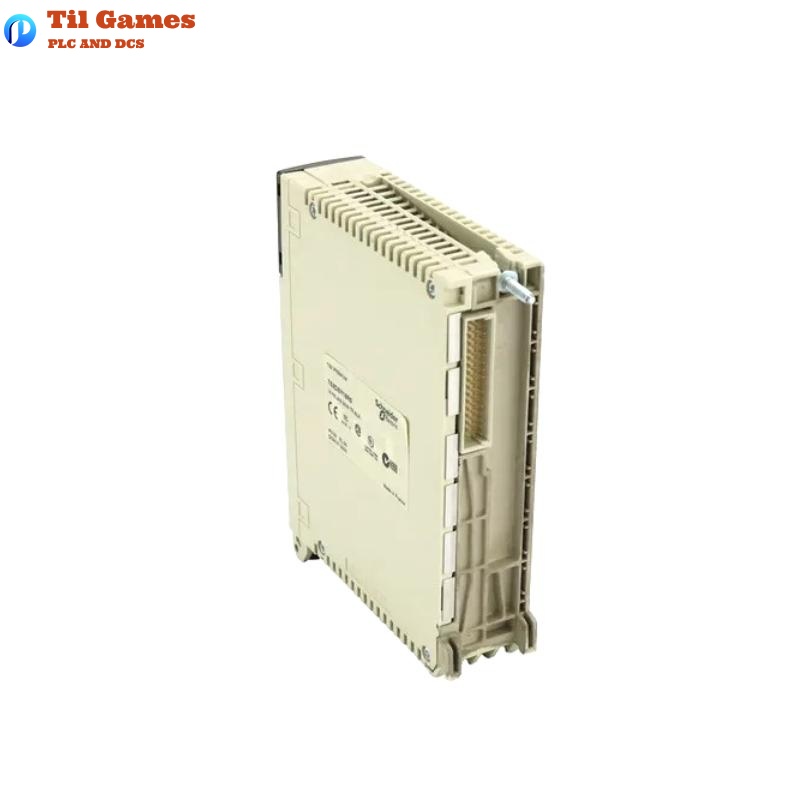

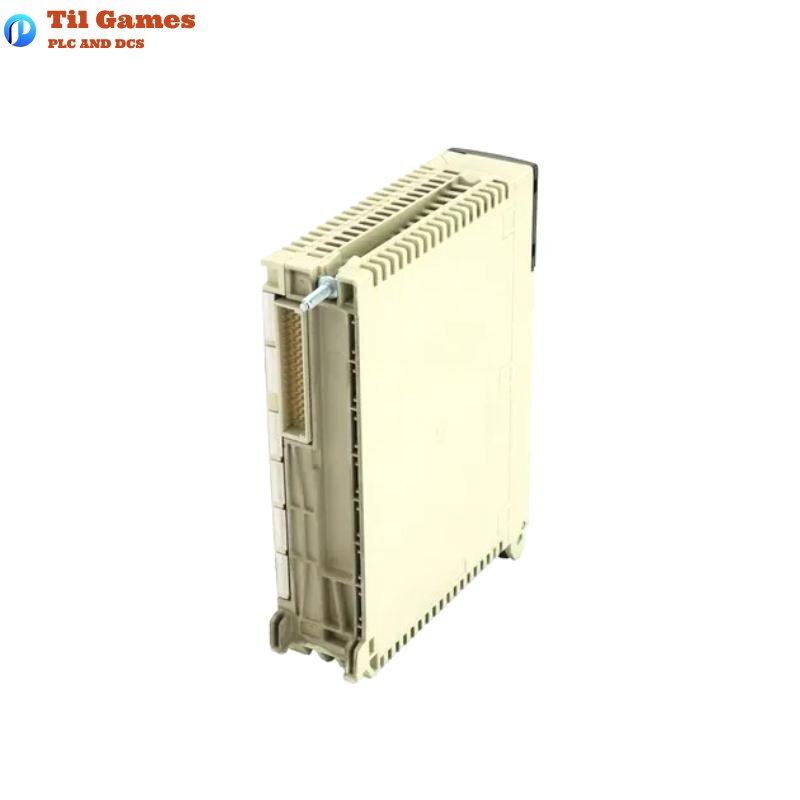

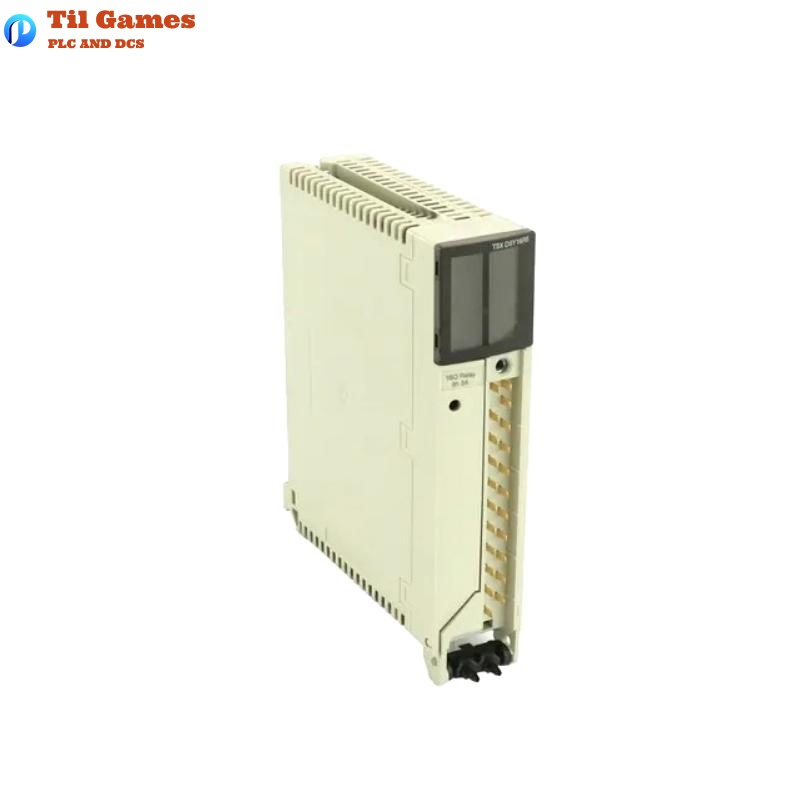

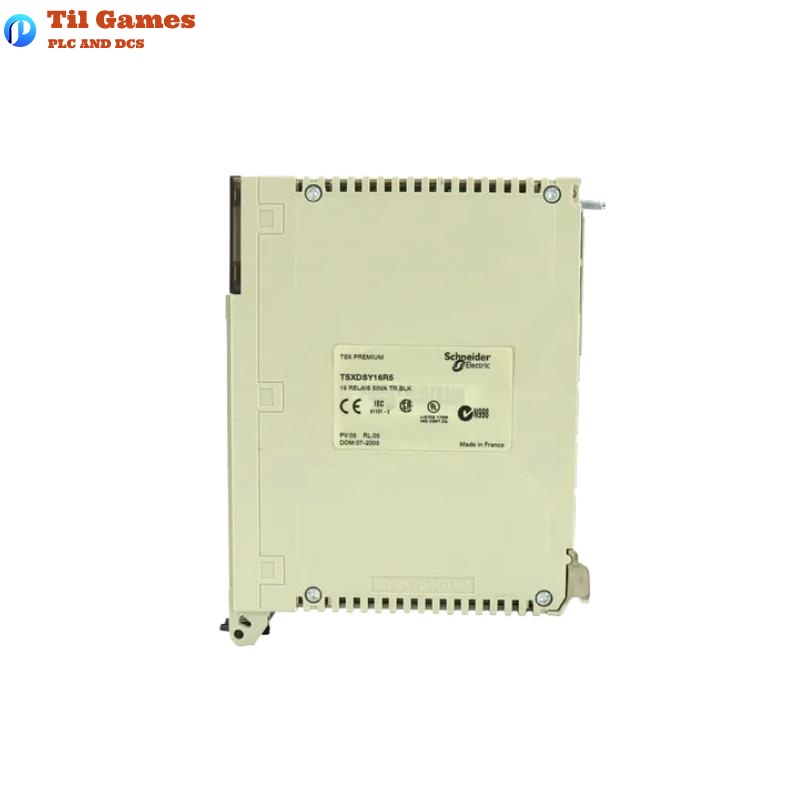

Technical Specifications
| Parameter | Value |
|---|---|
| Range of Product | Modicon Premium Automation platform |
| Product Type | Discrete output module |
| Number of Outputs | 16 |
| Output Type | Relay (non-protected) |
| Output Voltage | DC: 12–24 V (EN/IEC 61131-2); AC: 24–240 V (EN/IEC 61131-2) |
| Output Voltage Range | DC: 10–34 V; AC: 20–264 V |
| [Ith] Conventional Thermal Current | 3 A |
| Response Time | < 8 ms (activation); < 10 ms (deactivation) |
| Contact Type and Composition | 1 NO |
| Output Overvoltage Protection | DC: discharge diode per preactuator; AC: RC circuit + MOV per preactuator |
| Output Overload Protection | One external fast-blow fuse per channel or group |
| Short-Circuit Protection | One external fast-blow fuse per channel or group |
| Isolation Resistance | > 10 MOhm at 500 V |
| Power Dissipation | 0.25 W + 0.2 W × number of outputs energized |
| Electrical Durability | See detailed cycle specs (e.g., DC-12, AC-14, AC-15, etc.) |
| Electrical Connection | Screw terminal block |
| Module Format | Standard |
| Current Consumption | 135 mA @ 24 V DC; 80 mA @ 5 V DC |
| Dimensions (W × H × D) | 55 × 180 × 260 mm |
| Net Weight | 0.38 kg |
| Ambient Operating Temperature | 0–60°C |
| Ambient Storage Temperature | -25–70°C |
| Relative Humidity | Operating: 10–95% non-condensing; Storage: 5–95% non-condensing |
| Operating Altitude | 0–2000 m |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Dielectric Strength | 2000 V, 50/60 Hz for 60 s |
| Compliance Standards | IEC 61131-2, UL 508, CSA, CE, etc. |
| Certifications | BV, DNV, RINA, LR, GL, ABS, RMRS |
| Protective Coating | TC |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the TSXDSY16R5 a transistor or relay output module?
A1: It is a relay output module without internal protection.
Q2: What is the maximum current per output channel?
A2: The conventional free air thermal current per channel is 3 A.
Q3: Can this module handle both DC and AC outputs?
A3: Yes, it supports DC 10–34 V and AC 20–264 V output ranges.
Q4: Does it have built-in short-circuit protection?
A4: No, external fast-blow fuses are required for short-circuit and overload protection.
Q5: What is the response time for the outputs?
A5: Activation time is less than 8 ms; deactivation time is less than 10 ms.
Q6: What is the module’s electrical durability?
A6: Durability varies by load type; typical lifespan ranges from 100,000 to 5,000,000 cycles.
Q7: Is field replacement supported?
A7: Yes, but ensure power is disconnected before replacement to avoid damage or shock.
Q8: What is the installation depth of the module?
A8: The installation depth is 260 mm.
