Technical Specifications
| Feature | Specification |
|---|---|
| Points | 4, commoned-return, DC-coupled |
| Output current range, Points 1–2 | 4–20 mA output, controlled; 0–22 mA over-range; 0 mA output capability (step function <2 mA) |
| Output accuracy, Points 1–2 | <0.25% (in range of 4–20 mA) of FSR (0–22 mA), from 0°C to +70°C (32°F to 158°F) |
| Output current range, Points 3–4 | 4–40 mA output, controlled; 0–44 mA over-range; 0 mA output capability (step function <4 mA) |
| Output accuracy, Points 3–4 | <0.25% (in range of 4–40 mA) of FSR (0–44 mA), from 0°C to 50°C (32°F to 122°F) |
| Type | TMR (Triple Modular Redundant) |
| Resolution | 12 bits |
| Diagnostic | Forced-switch diagnostic (FSD) |
| External loop power | 32 V DC, maximum; 24 V DC, nominal |
| Output loop power requirements, Points 1–2 | 300 Ω @ >16 V DC (1 A minimum), 500 Ω @ >20 V DC (1 A minimum), 700 Ω @ >24 V DC (1 A minimum), 800 Ω @ >28 V DC (1 A minimum) |
| Over-range protection, Points 1–2 | 36 V DC, continuous; 0 V DC, continuous |
| Output loop power requirements, Points 3–4 | 125 Ω @ >16 V DC (1 A minimum), 210 Ω @ >20 V DC (1 A minimum), 295 Ω @ >24 V DC (1 A minimum), 340 Ω @ >28 V DC (1 A minimum) |
| Over-range protection, Points 3–4 | 36 V DC, continuous with thermal de-rating; 0 V DC, continuous |
| Switch time on leg failure | 1 ms, typical; 3 ms, maximum |
| Functional-to-protective-earth isolation | 500 V DC, minimum |
| Functional-to-functional-earth (logic) isolation | 800 V DC, minimum |
| Dimensions | 173 x 117 x 25 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the output range for Points 1-2 on the Triconex 3482 module?
A1: The output range for Points 1-2 is 4-20 mA, with a controlled 0-22 mA over-range, and a 0 mA output capability (step function <2 mA).
Q2: What is the resolution of the 3482 High-Current Analog Output Module?
A2: The resolution of the 3482 module is 12 bits.
Q3: What is the output accuracy for Points 1-2?
A3: The output accuracy for Points 1-2 is less than 0.25% of Full Scale Range (FSR) (0-22 mA), from 0°C to 70°C (32°F to 158°F).
Q4: What diagnostic features does the 3482 module support?
A4: The 3482 module supports Forced-Switch Diagnostic (FSD), continuously monitoring and verifying output integrity.
Q5: What is the maximum external loop power?
A5: The maximum external loop power is 32 V DC, with a nominal value of 24 V DC.
Q6: What protection does the module have against over-range?
A6: The module has over-range protection of 36 V DC, continuous, and 0 V DC, continuous for both Points 1-2 and Points 3-4.
Q7: What is the switching time when there is a failure in one leg?
A7: The switch time on leg failure is typically 1 ms, with a maximum of 3 ms.

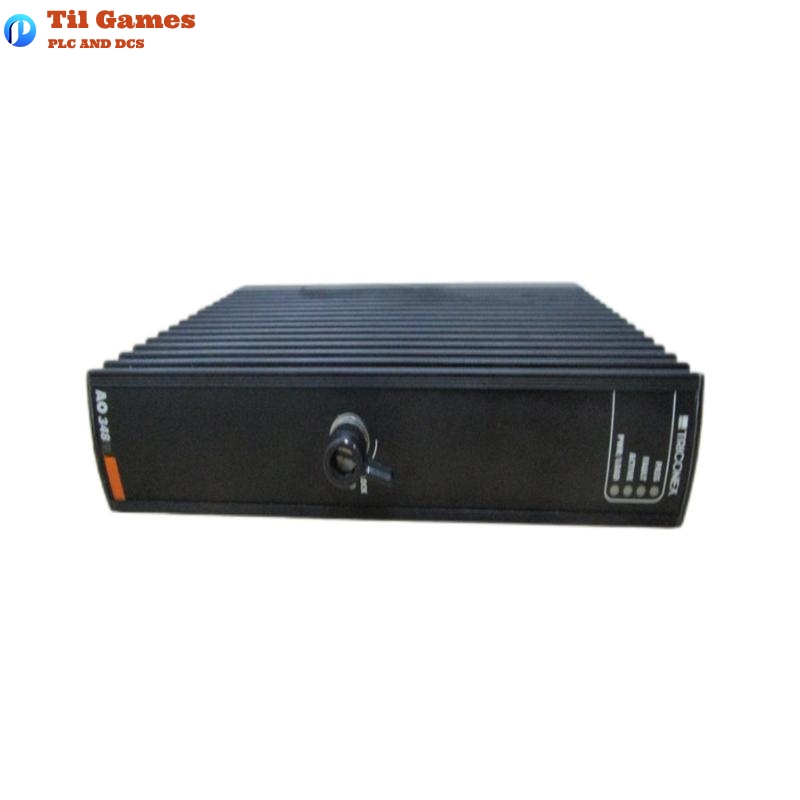

Q8: What is the size and weight of the Triconex 3482 module?
A8: The Triconex 3482 High-Current Analog Output Module has dimensions of 173 x 117 x 25 mm and weighs 0.5 kg.
