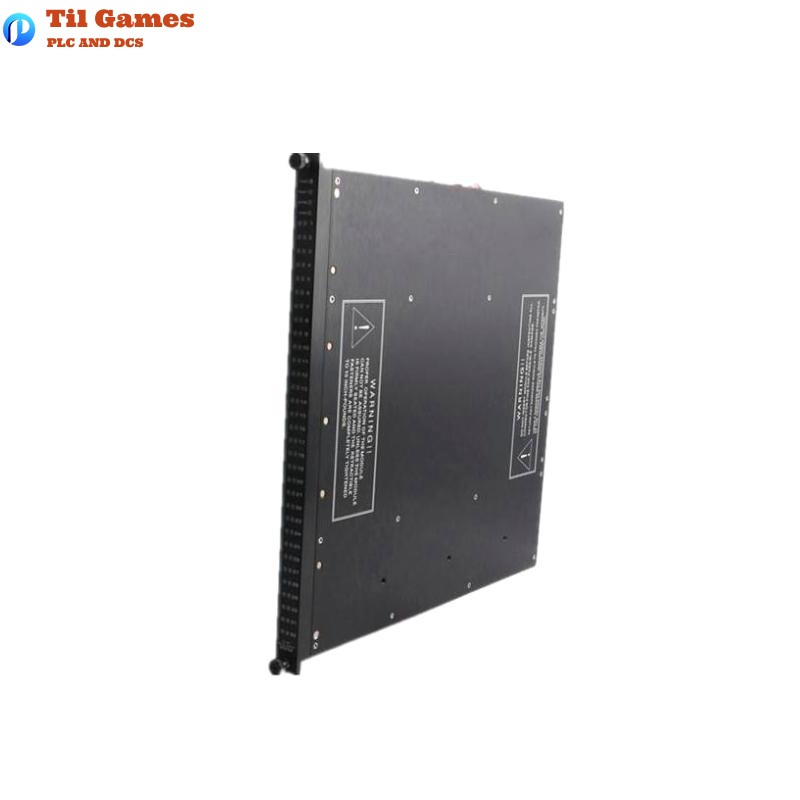

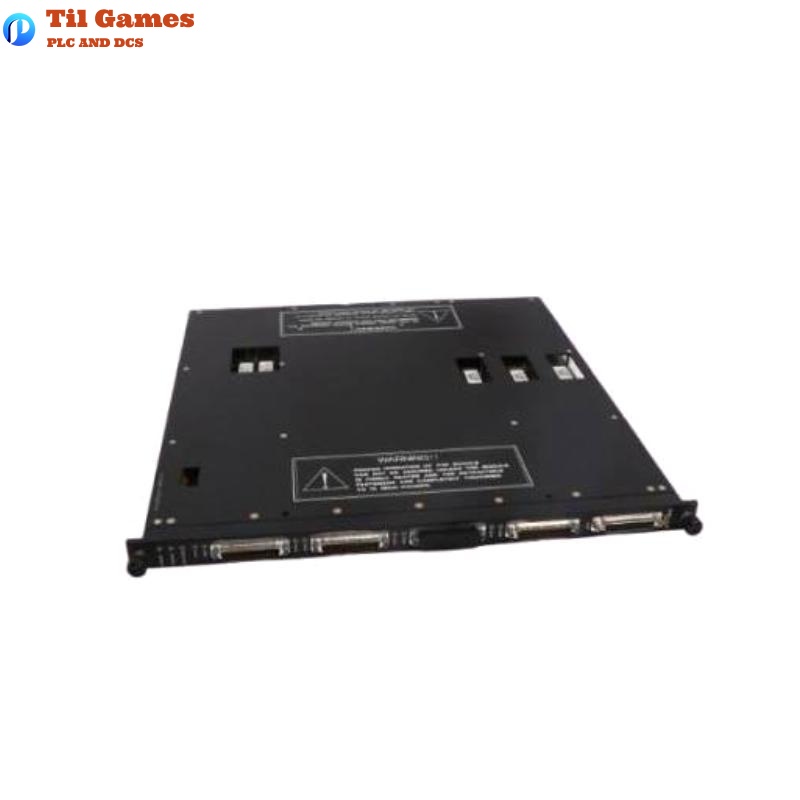

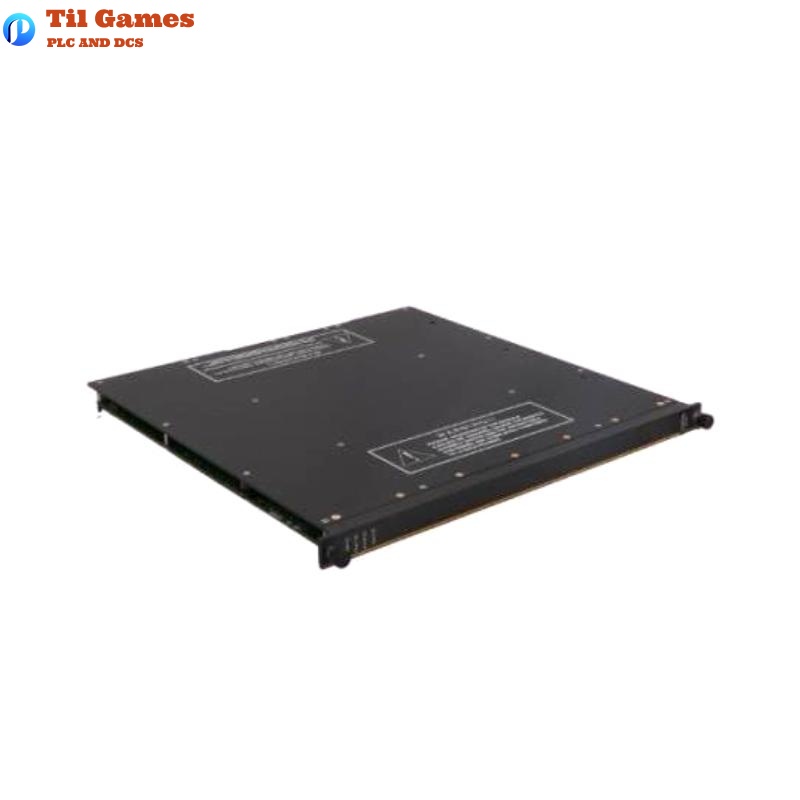

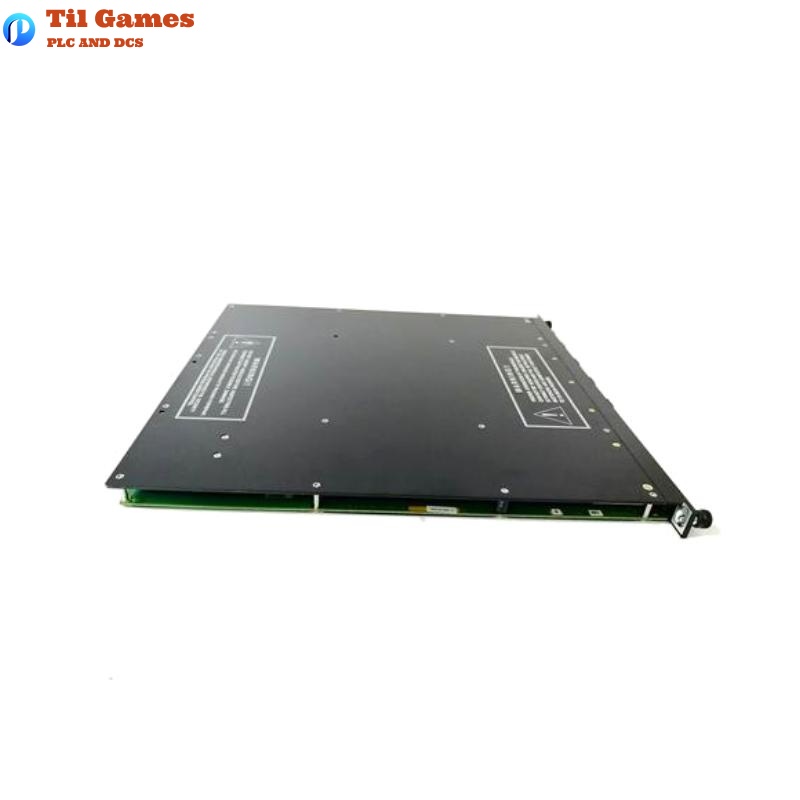

Technical Specifications (Triconex 3501T Digital Input Module)
| Parameter | Description |
|---|---|
| Model | 3501T |
| Type | Triple Modular Redundant (TMR) Digital Input Module |
| Number of Channels | 32 |
| Input Signal Type | 115 VAC/VDC, opto-isolated, non-commoned |
| Isolation | Each channel optically isolated, A/B/C fully independent |
| Self-Test Feature | Supported (detects stuck-ON conditions) |
| Channel Design | Triple channels A, B, C with voting logic |
| Installation | Plug-in module, fits Tricon main or expansion chassis |
| Communication | Via triplicated I/O bus to main processors |
| Hot-Spare Support | Supported, allows online hot-swapping |
| Power Supply | Draws power from Tricon chassis backplane |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -40°C to 75°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration | 2G @ 10–150 Hz |
| Shock | 15G, 6–11 ms duration |
| Dimensions (W×H×D) | 132 mm × 205 mm × 48 mm |
| Weight | 2.267 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the 3501T module support self-diagnostic tests?
A1: Yes, the 3501T module includes built-in self-tests to detect stuck-ON input conditions.
Q2: Are the input points electrically isolated?
A2: Yes, each channel is optically isolated from the others to ensure signal integrity and reliability.
Q3: What input voltage levels are supported?
A3: The 3501T supports 115 VAC or 115 VDC input levels.
Q4: Is hot-swap replacement supported?
A4: Yes, the module supports hot-spare operation, allowing online replacement without system shutdown.
Q5: In which chassis can the module be installed?
A5: The 3501T can be installed in the main chassis, expansion chassis, or RXM chassis of a Tricon system.
Q6: How does the module communicate with the system?
A6: It communicates via the triplicated I/O bus, ensuring redundant and reliable data transfer to the main processors.
Q7: What is the difference between the 3501T and 3501E?
A7: The 3501T is an industrial-rated variant with structural distinctions; both modules provide similar functionality.
Q8: Is the 3501T certified for safety applications?
A8: Yes, the 3501T is part of the Tricon SIS architecture and is certified for SIL 3 and CE compliance.
