Technical Specifications
| Parameter | Description |
|---|---|

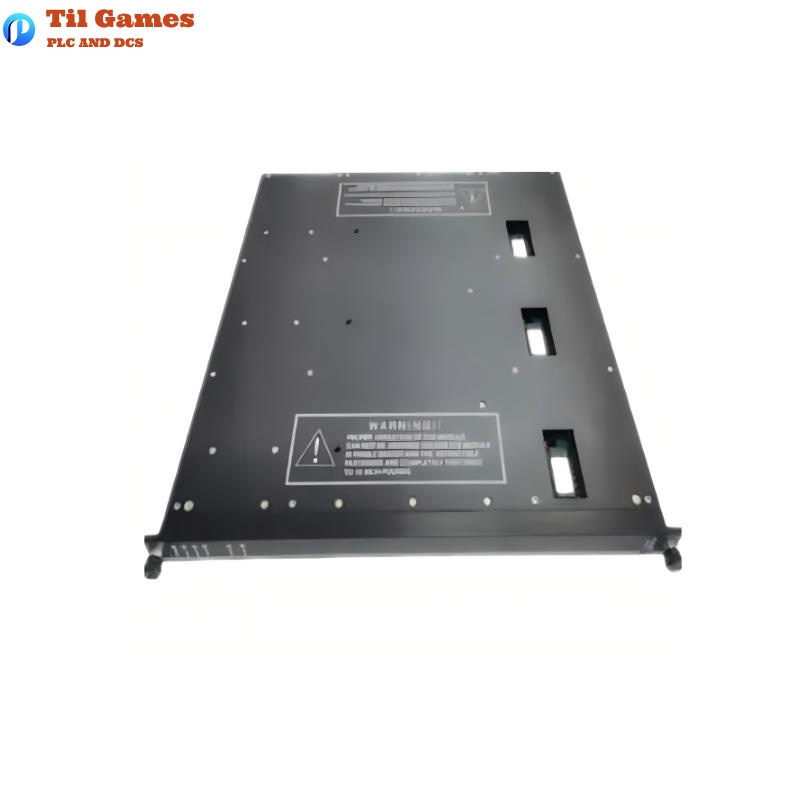

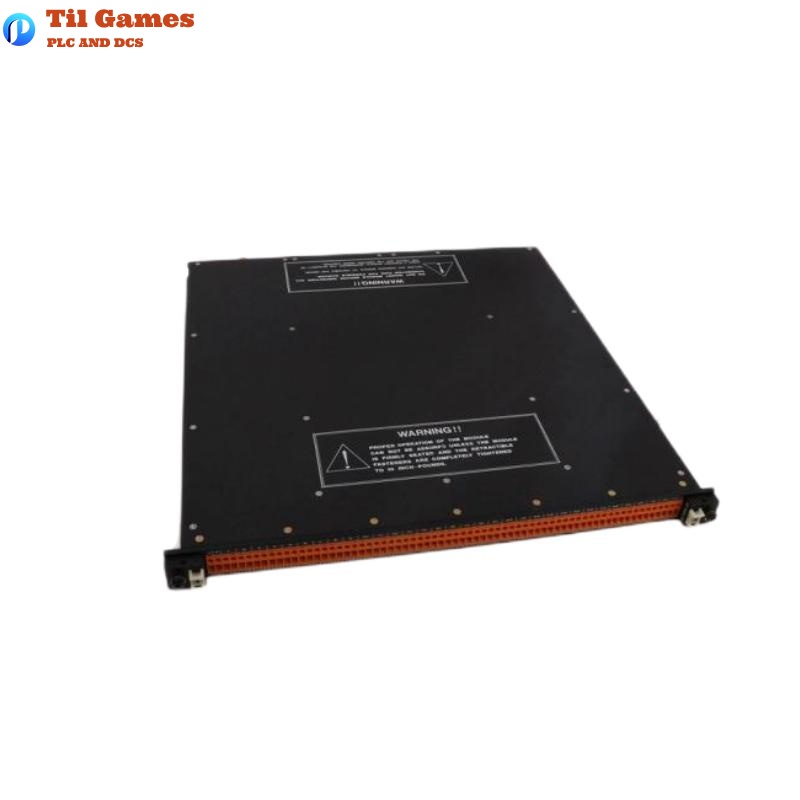

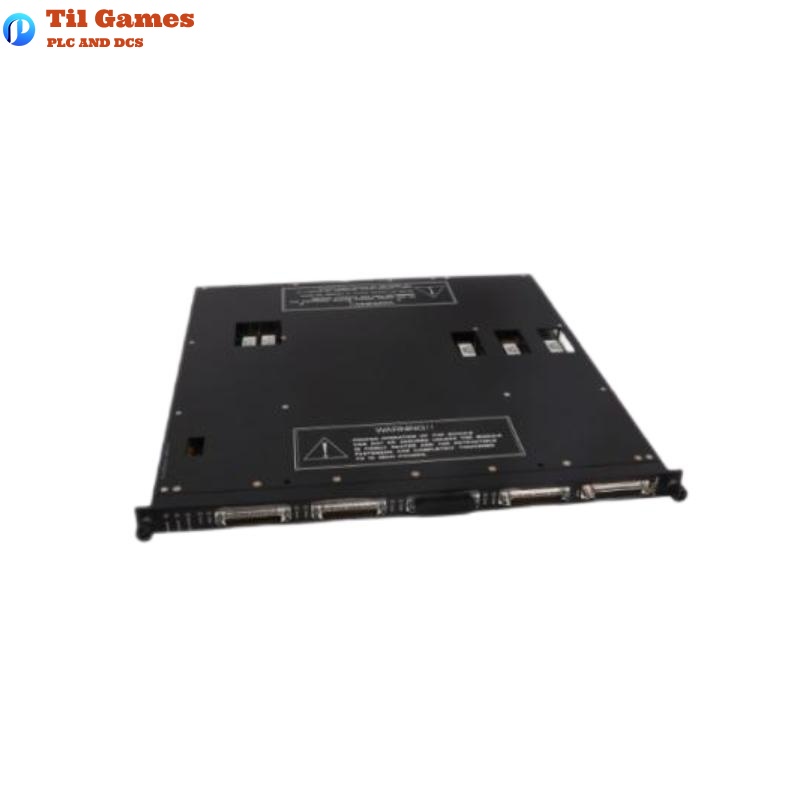

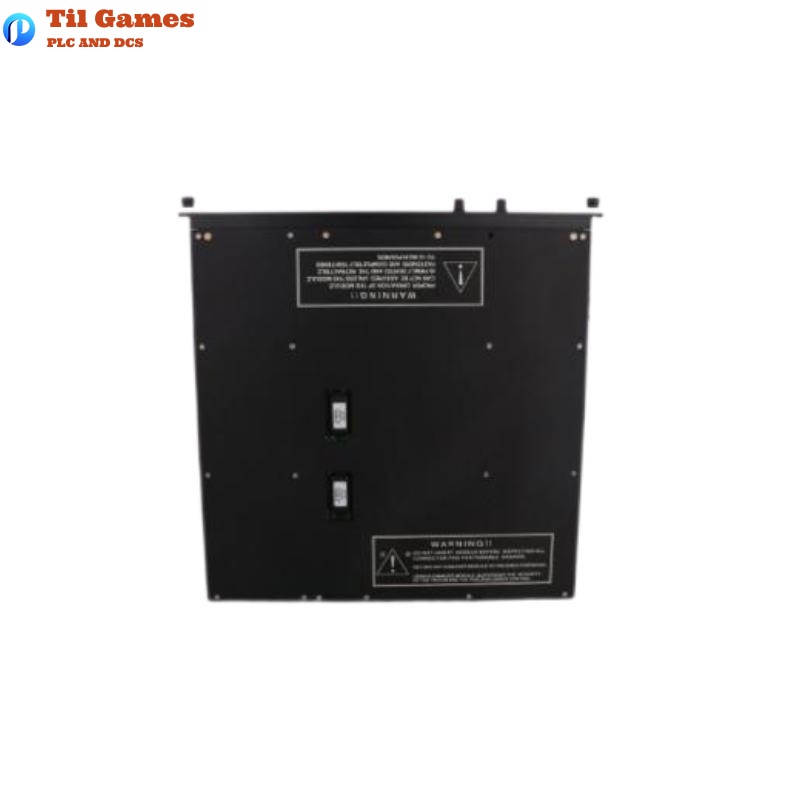

| Model | 3502EN2 |
| Type | Digital Input Module (Triple Modular Redundant – TMR) |
| Input Channels | 32 points |
| Input Voltage Range | 48 VAC/VDC |
| Input Current | 6 mA (typical) |
| Input Filter Time | 4 ms (typical) |
| Self-Test Feature | Supports stuck-ON detection |
| Channel Isolation | Channels A, B, and C are electrically isolated |
| Hot-Spare Support | Yes |
| Status Indication | Individual LED per input point |
| Operating Temp. | 0 to 60°C |
| Storage Temp. | -40 to 75°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 129.5 x 75 x 114.5 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the 3502EN2 module single-channel or redundant input?
A1: The 3502EN2 is a TMR (Triple Modular Redundant) module with three isolated input channels (A, B, C).
Q2: Does the module support hot-spare operation?
A2: Yes, it supports hot-spare configuration. The system can automatically switch to the standby module in case of a fault.
Q3: Does the module feature self-diagnostics?
A3: Yes, it can detect stuck-ON conditions and force the input to a safe OFF state.
Q4: Are there individual LED indicators for each input point?
A4: Yes, each input point has a dedicated LED to show its real-time status.
Q5: Can the module handle both AC and DC inputs?
A5: Yes, it supports 48 VAC and 48 VDC input signals.
Q6: Does the module filter input signals?
A6: Yes, it has built-in input filtering with a typical delay of 4 milliseconds.
Q7: What is the module’s operating temperature range?
A7: It operates between 0°C and 60°C, suitable for industrial environments.
Q8: Is data consistency with the main processor ensured?
A8: Yes, it communicates over Tricon’s triplicated bus and uses input voting to ensure data integrity.
