Technical Specifications
| Parameter | Description |
|---|---|

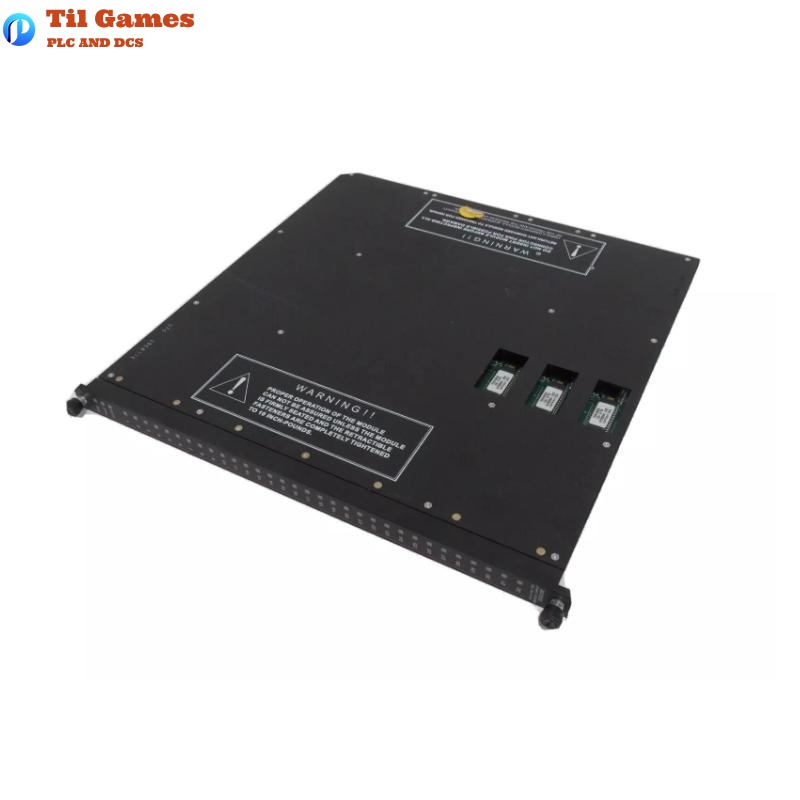

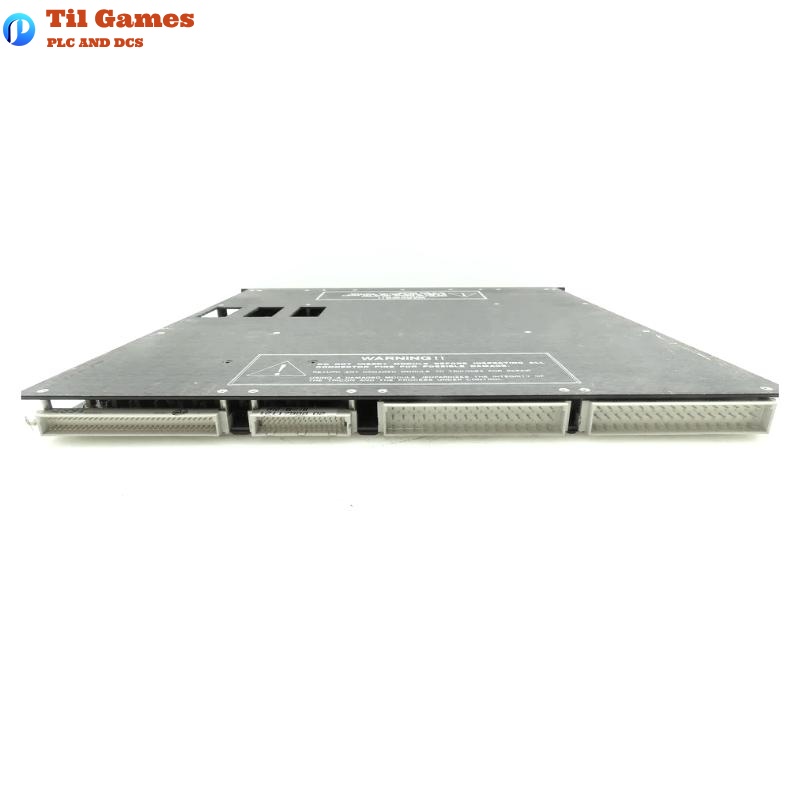

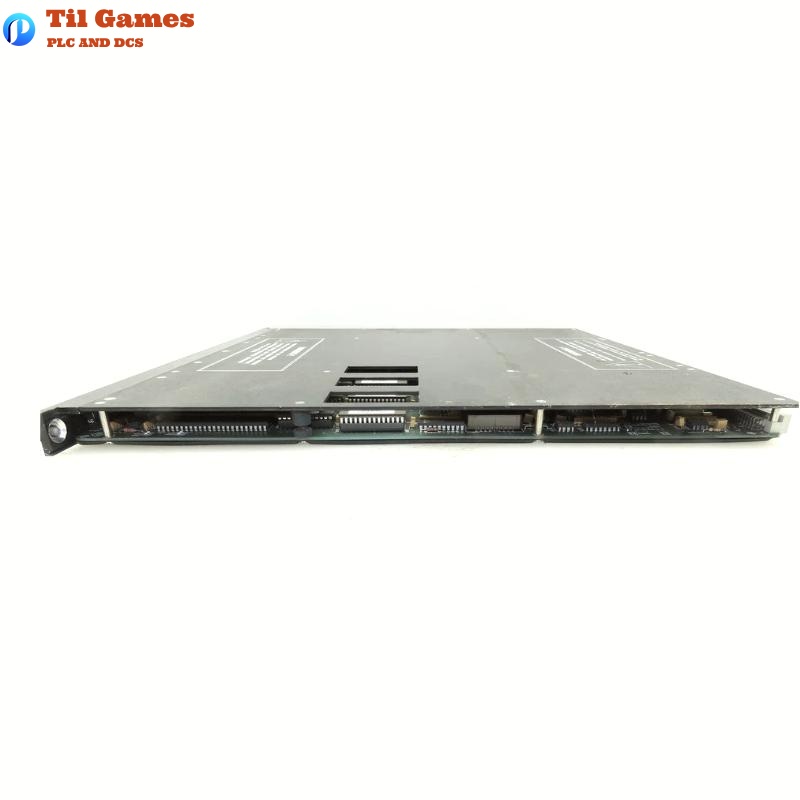

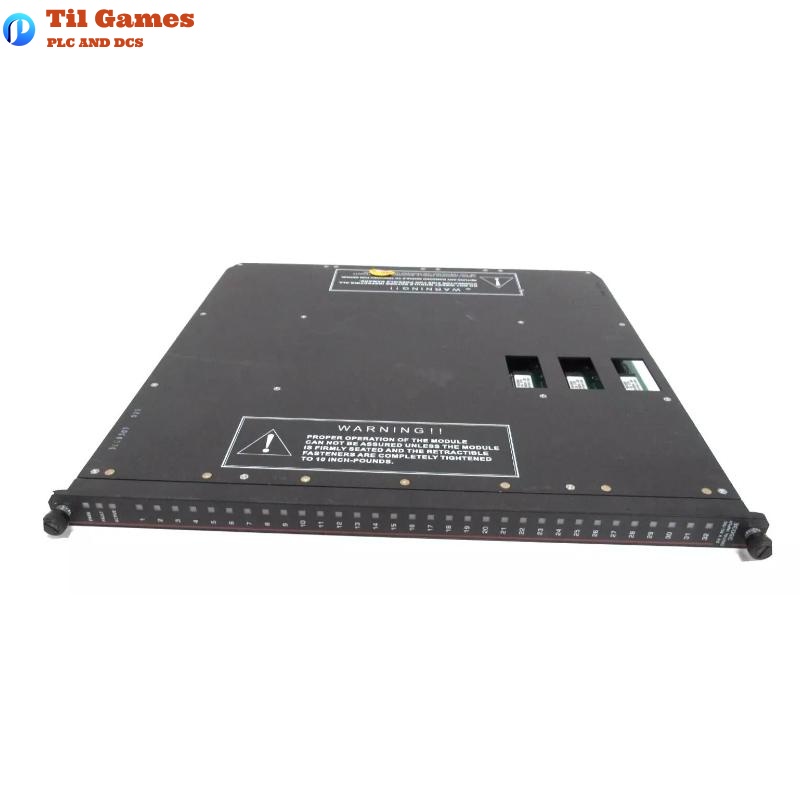

| Model Number | 3503E |
| Module Type | Digital Input Module |
| Number of Input Channels | 32 |
| Input Voltage Range | 24 VAC/VDC |
| Isolation | Optical isolation per channel |
| Termination Options | 9563-810, 9563-910 (commoned); 9553-610 (basic); 9572-610 (nonincendive) |
| Fanned-Out Cable | 9101-010 |
| Bypass Panel | BP9228-010 |
| Loop-back Cable | 9143-010 |
| Dimensions (W x H x D) | 180 × 200 × 60 mm |
| Weight | 4 kg |
FAQ
FAQ
Q1: What is the input voltage specification for the 3503E module?
A1: The module supports 24 VAC or VDC input signals.
Q2: How many channels does the 3503E provide?
A2: It provides 32 digital input channels.
Q3: Is the 3503E module optically isolated?
A3: Yes, each input channel is optically isolated.
Q4: What type of termination panels can be used with 3503E?
A4: Compatible panels include 9563-810, 9563-910 (commoned), 9553-610 (basic), and 9572-610 (nonincendive).
Q5: Can the module be used in hazardous environments?
A5: Yes, with the 9572-610 nonincendive panel.
Q6: What accessories are available for this module?
A6: Fanned-out cable (9101-010), loop-back cable (9143-010), and bypass panel (BP9228-010).
Q7: Is this module hot-swappable?
A7: Yes, it can be replaced without disturbing field wiring when used with the termination panel.
Q8: What is the physical size and weight of the module?
A8: It measures 180 x 200 x 60 mm and weighs 4 kg.
