Technical Specifications
| Parameter | Specification |
|---|---|

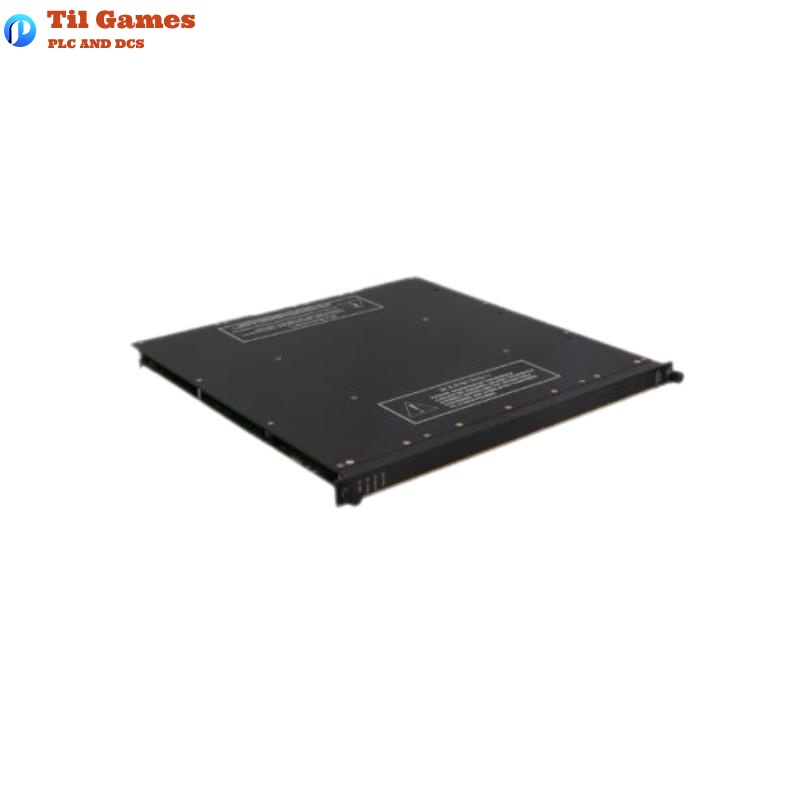

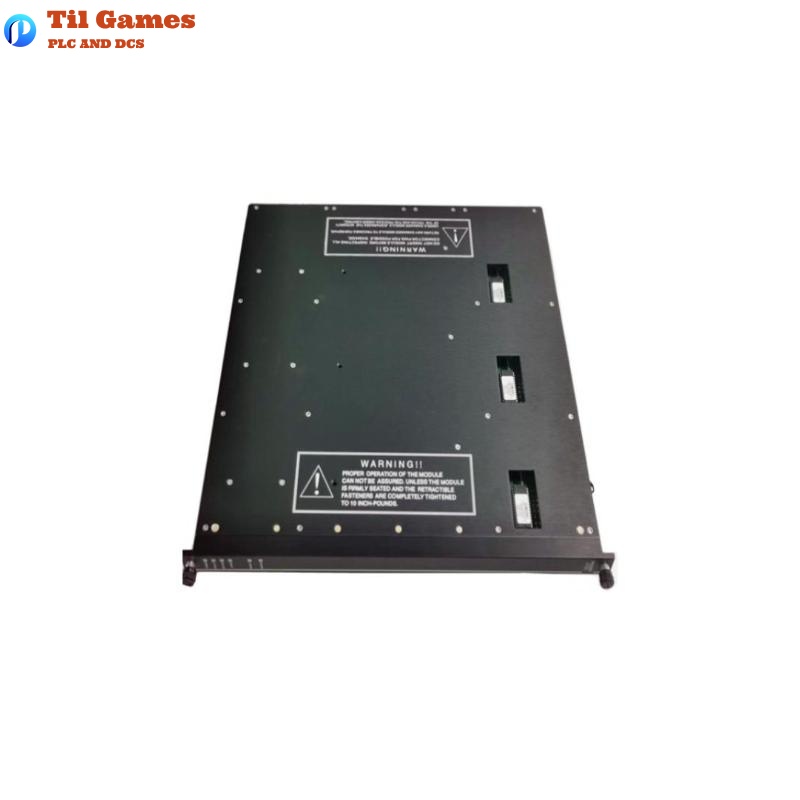

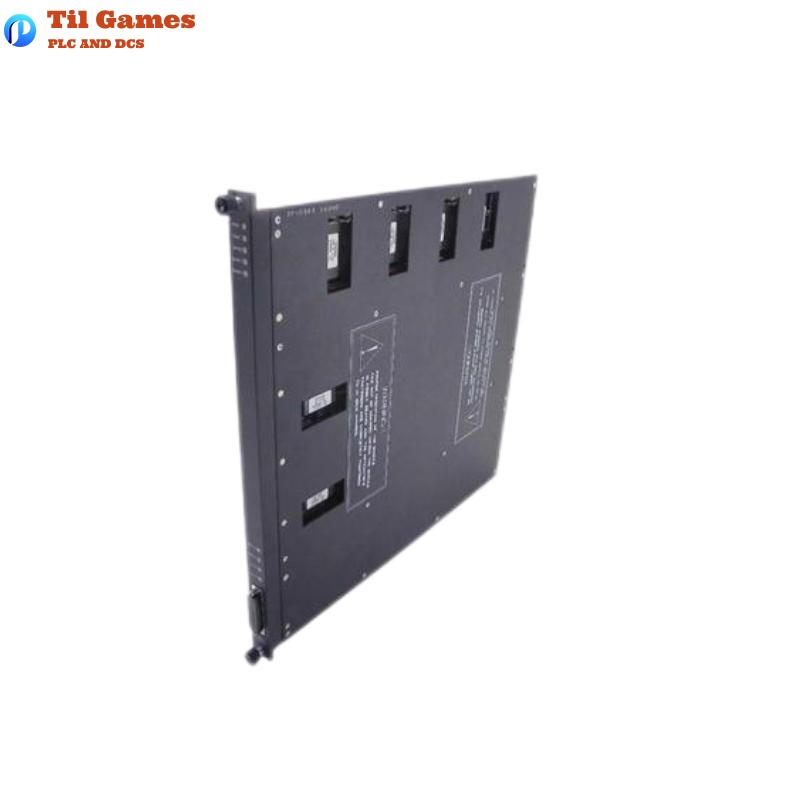

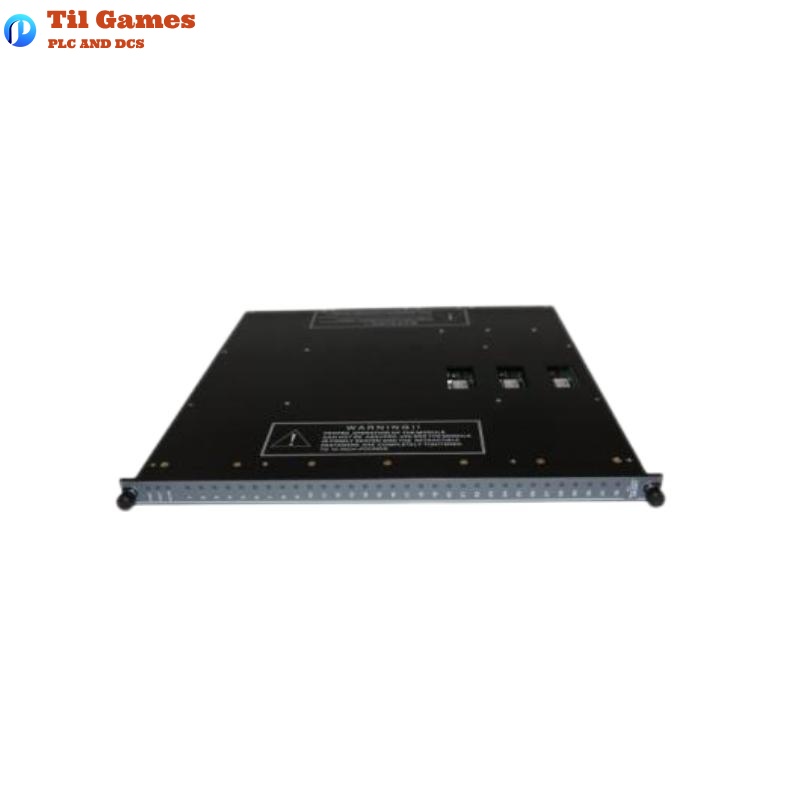

| Model Number | 3504A |
| Module Type | High Density Digital Input Module |
| Channels | 64 input points |
| Input Voltage Range | 24 VDC nominal (DC-coupled) |
| Signal Isolation | No channel-to-channel isolation |
| Fault Detection | Stuck-ON detection via internal circuitry |
| Self-Test | Yes, for stuck-ON conditions |
| Redundancy Architecture | Triple Modular Redundant (TMR) |
| Input Type | DC inputs, commoned configuration |
| Diagnostics | Built-in diagnostics for each point |
| Power Consumption | 10 W |
| Dimensions (H x W x D) | 180 x 200 x 60 mm |
| Weight | 2.47 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage rating of the 3504A module?
A1: The nominal input voltage is 24 VDC, and it operates as a DC-coupled input.
Q2: How many input points does the 3504A module support?
A2: It supports 64 digital input channels.
Q3: Does the 3504A provide channel-to-channel isolation?
A3: No, it does not have channel-to-channel isolation.
Q4: What type of fault detection does this module offer?
A4: The module includes stuck-ON fault detection through internal self-test circuits.
Q5: Is the module compliant with the Tricon TMR architecture?
A5: Yes, the 3504A is a TMR module with three independent processing channels.
Q6: Can this module be hot-swapped during operation?
A6: Yes, it supports online module replacement within a logical slot.
Q7: Is this module suitable for safety-critical applications?
A7: Yes, it is designed for use in fault-tolerant systems requiring high availability.
Q8: What is the power consumption of the 3504A module?
A8: The module consumes approximately 10 watts of logic power.
