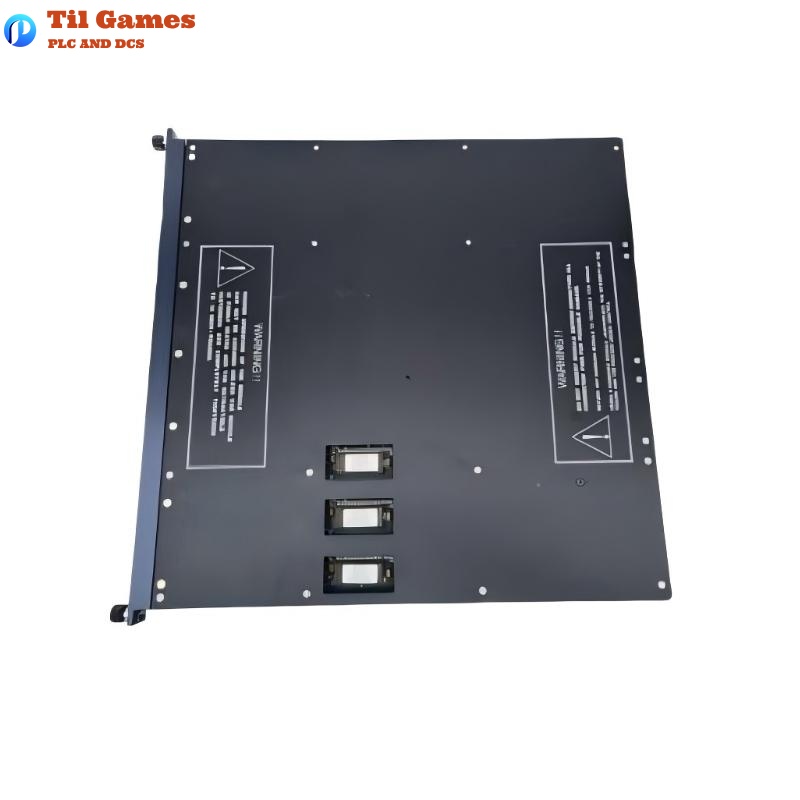

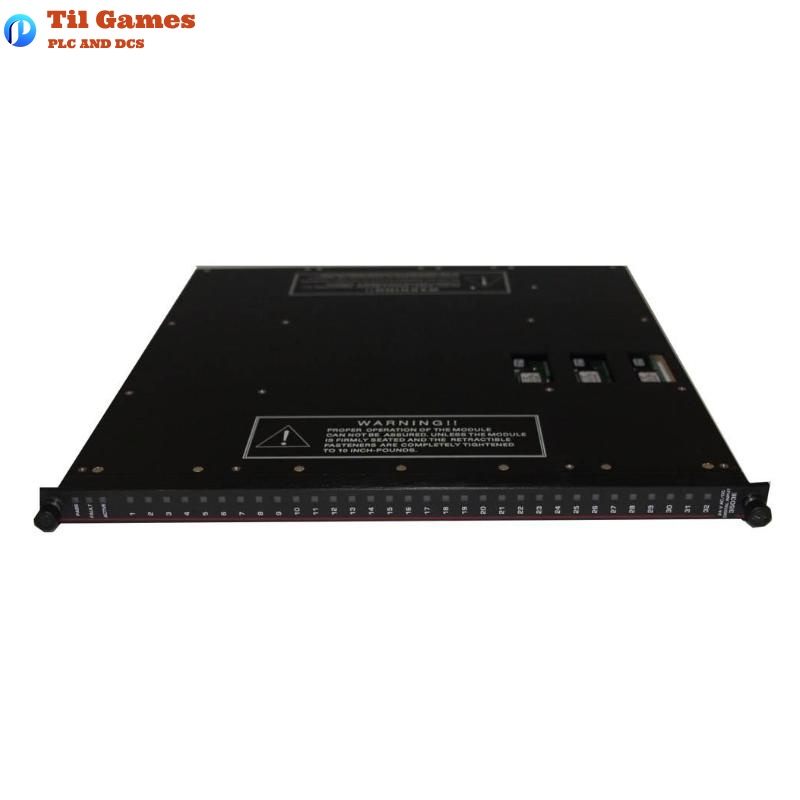

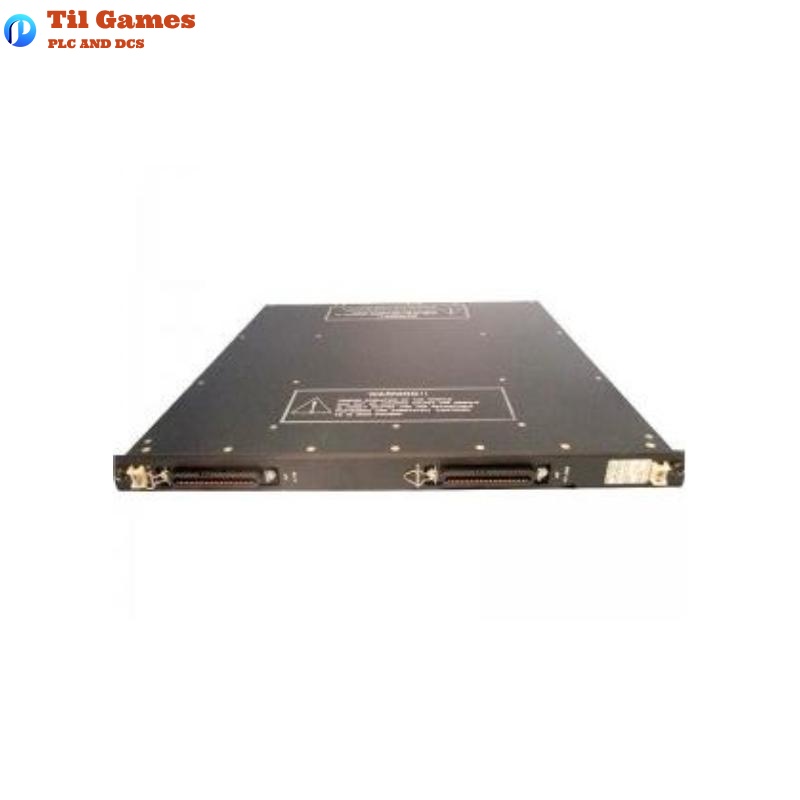

Triconex 3533E I/O Card Technical Specifications
| Parameter | Description |
|---|---|
| Model | Triconex 3533E I/O Card |
| Input/Output | I/O channels, detailed type per configuration |
| Power Supply | 24 V DC |
| Power Consumption | Typical 2A (depends on application) |
| Number of Channels | Multi-channel, refer to system configuration |
| System Connector | ELCO 56-pin female system connector |
| Channel Type | Digital input/output (per motherboard config) |
| Channel Monitoring | Supports open/short circuit monitoring |
| Operating Temp. | -20°C ~ +60°C |
| Storage Temp. | -40°C ~ +85°C |
| Mounting | DIN rail mounting |
| Status Indicators | Power and fault LEDs |
| Dimensions | 115 x 230 x 50 mm |
| Weight | 1.851 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the Triconex 3533E I/O Card?
A1: This card is mainly used in Triconex systems for digital input and output signal acquisition and control.
Q2: What types of signals are supported by the 3533E card?
A2: The 3533E supports various digital input and output signals, depending on system and motherboard configuration.
Q3: What is the power requirement for this module?
A3: The standard power requirement is 24 V DC, with a maximum current of about 2A, depending on the number of active channels.
Q4: Does the module support open/short circuit monitoring?
A4: Yes. The 3533E I/O Card features open and short circuit monitoring for channels.
Q5: How is the 3533E module installed?
A5: It is mounted using a standard DIN rail, which is convenient for on-site layout and maintenance.
Q6: What is the maximum number of supported channels?
A6: The supported number of channels depends on the motherboard and system configuration, typically 16 to 32 channels.
Q7: Are there specific environmental temperature requirements?
A7: The operating temperature range is -20°C to +60°C, storage range is -40°C to +85°C.
Q8: What are the dimensions and weight of the 3533E module?
A8: Dimensions are 115 x 230 x 50 mm, and weight is 1.851 kg.
