Technical Specifications
| Parameter | Description |
|---|---|

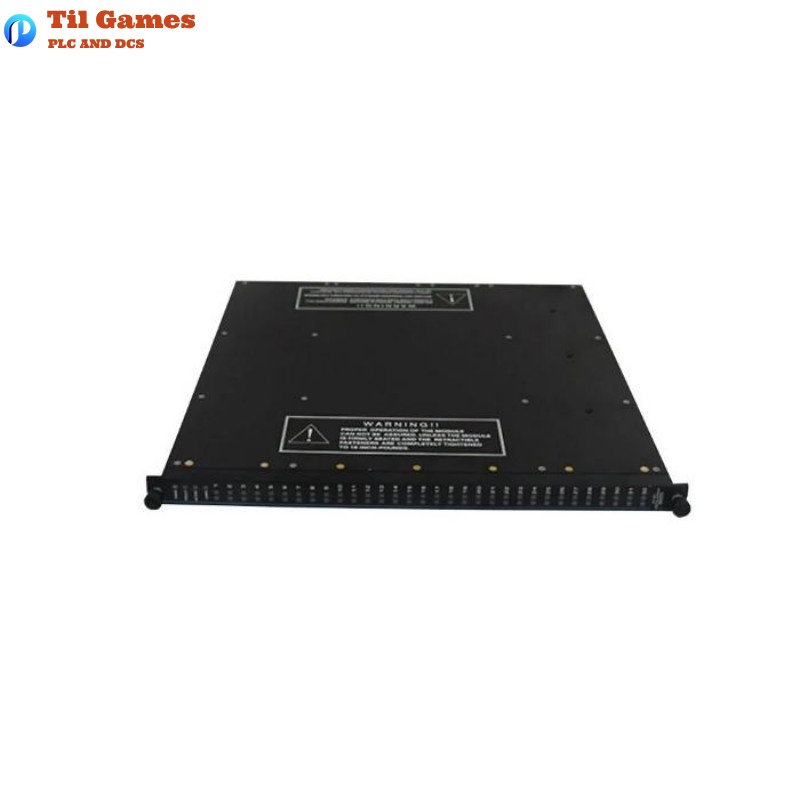

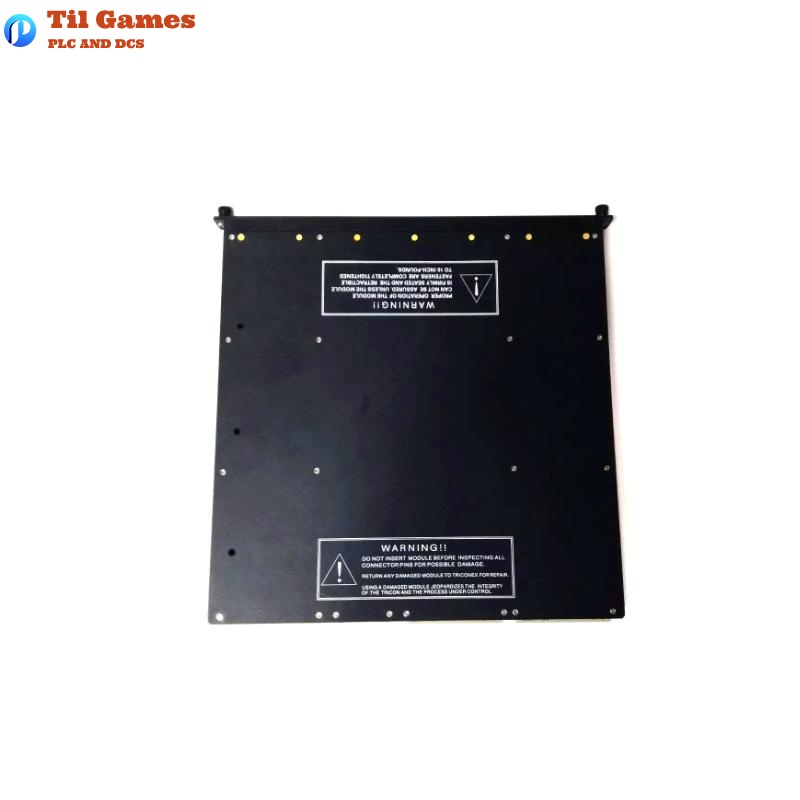

| Model | Triconex 3564 |
| Type | Single Digital Input Module |
| Number of Inputs | 64 points |
| Input Voltage | 24 VDC (nominal) |
| Input Type | Single-ended, optically isolated |
| Channel Isolation | Channel-to-channel isolation |
| Response Time | < 10 ms |
| Self-Diagnostics | Supported; Stuck-ON/OFF detection |
| Communication | Interfaces with TMR main processors |
| Mounting | Tricon or expansion chassis slot |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -40°C to 75°C |
| Humidity | 5%~95%, non-condensing |
| Vibration | 2 G @ 10-150 Hz |
| Shock | 15 G, 6-11 ms |
| Dimensions | 200 x 150 x 100 mm |
| Weight | 2.5 kg |
| Safety Certifications | IEC 61508 SIL3, TÜV, CE, CSA, etc. |
FAQ
FAQ
Q1: How many input points does the Triconex 3564 module support?
A1: The module supports 64 digital input points.
Q2: What is the input signal type and rated voltage?
A2: The input signal type is single-ended 24VDC digital input with optical isolation.
Q3: Does this module support self-diagnostic features?
A3: Yes, it supports self-diagnostics including detection of stuck-ON and stuck-OFF conditions.
Q4: What is the typical response time of the module?
A4: The response time is less than 10 milliseconds, suitable for safety-critical real-time applications.
Q5: What are the main application scenarios for the 3564 module?
A5: It is mainly used in process control systems in industries such as petrochemicals, power generation, and metallurgy where high reliability and safety are required.
Q6: What safety certifications does the module have?
A6: It complies with IEC 61508 SIL3 and is certified by TÜV, CE, CSA, among others.
Q7: What are the dimensions and weight of the module?
A7: The dimensions are 200 x 150 x 100 mm, and the weight is 2.5 kg.
Q8: Are there any special requirements for the operating environment?
A8: The operating temperature is 0~60°C, humidity is 5%~95% non-condensing, and the module should be installed in a suitable enclosure.
