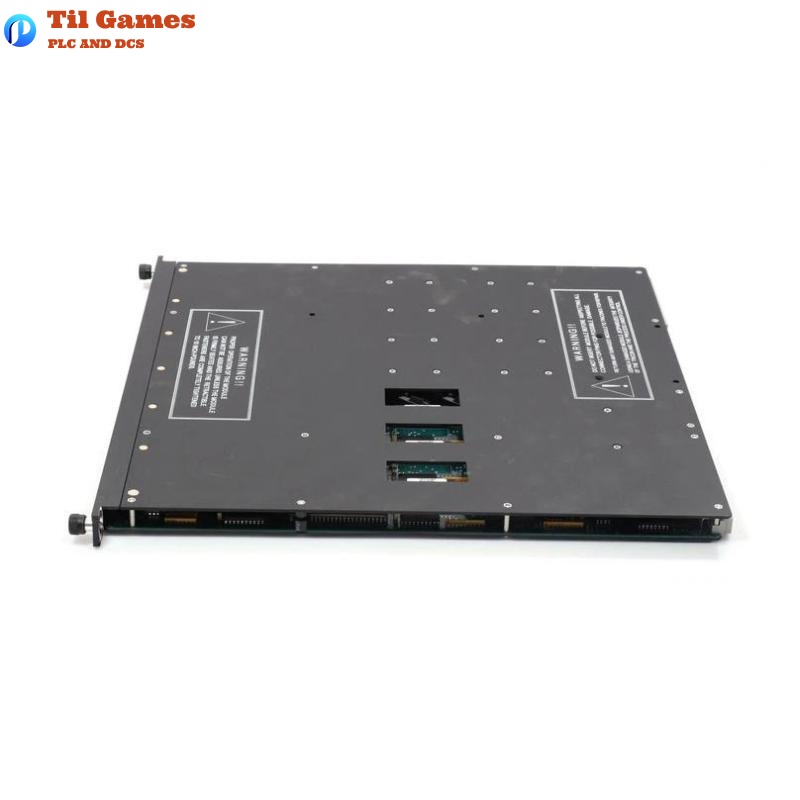

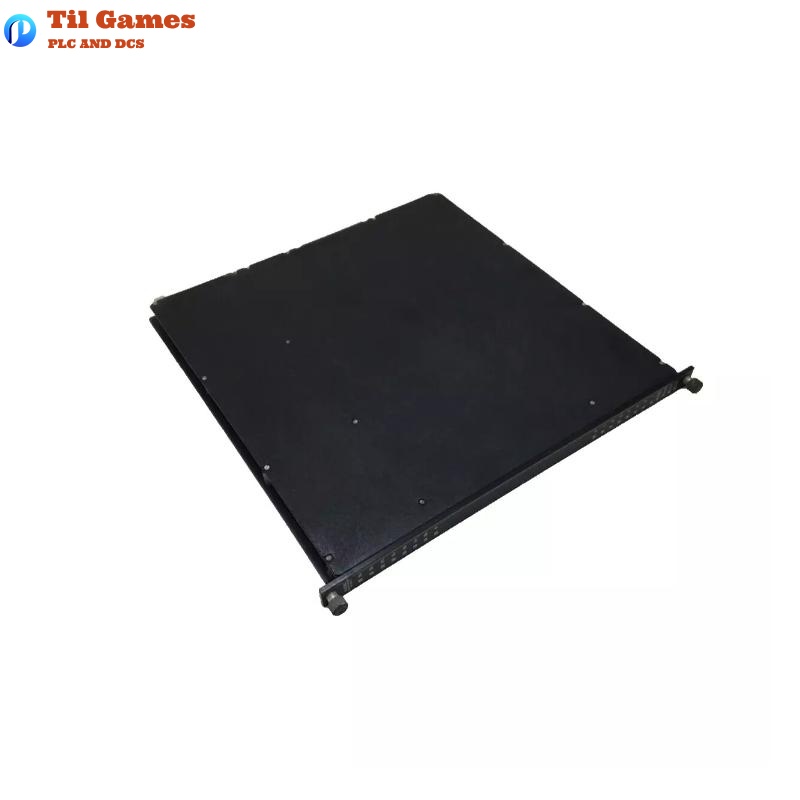

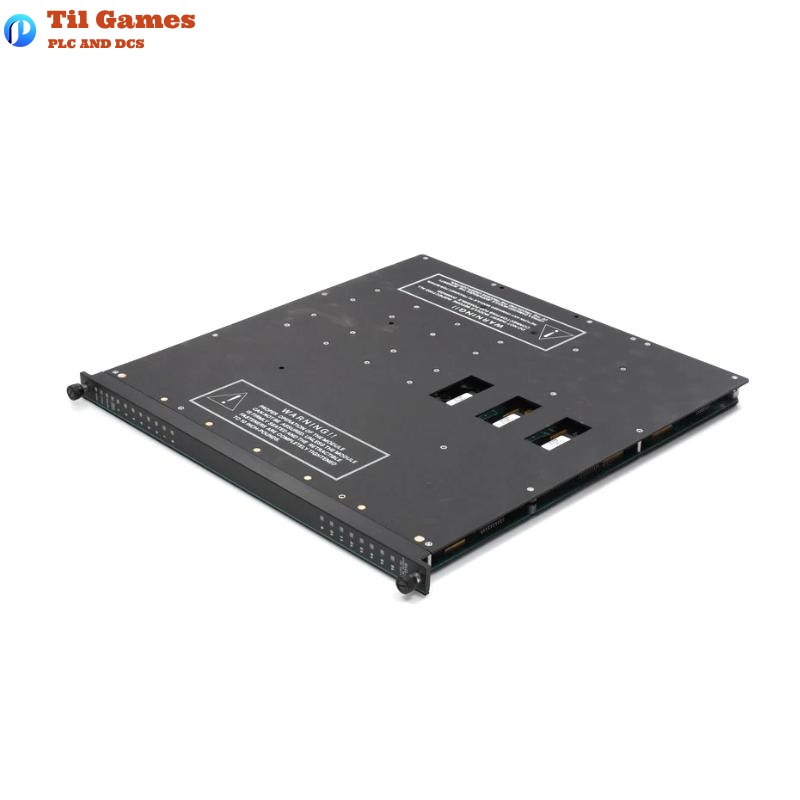

Triconex 3601 Digital Output Module Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Type | 115 VAC, opto-isolated, non-commoned |
| Redundancy | Triple Modular Redundancy (TMR) |
| Mounting | Plug-in module for Tricon backplane |
| Electrical Isolation | Full channel-to-channel and system isolation |
| Power Supply | Supplied by Tricon chassis |
| Hot Spare Support | Supports hot standby and online replacement |
| Operating Temp | 0°C ~ 60°C |
| Storage Temp | -40°C ~ 75°C |
| Humidity Range | 5% ~ 95% non-condensing |
| Vibration | 2 G @ 10–150 Hz |
| Shock | 15 G, 6-11 ms |
| Dimensions | 140 x 140 x 32 mm |
| Weight | 3.56 kg |
FAQ
Triconex 3601 Digital Output Module FAQ
Q1: How many digital output channels does the module support?
A1: The Triconex 3601 module supports 16 digital output channels, each with independent isolation.
Q2: What is the output type of this module?
A2: The output is 115 VAC, with opto-isolated design for enhanced safety and reliability.
Q3: Does the module support hot standby and online replacement?
A3: Yes, the module supports hot standby. Faulty modules can be replaced online without affecting system operation.
Q4: What are the typical application scenarios for this module?
A4: It is mainly used in safety interlock, emergency shutdown, boiler control, turbine control, and other critical industrial automation processes.
Q5: What redundancy architecture is adopted?
A5: It uses Triple Modular Redundancy (TMR), with independent acquisition and control for each signal, ensuring high reliability.
Q6: How does the module ensure signal isolation?
A6: Each output channel is opto-isolated, ensuring complete electrical isolation between channels and between the system and field wiring.
Q7: What are the applicable environmental conditions?
A7: Operating temperature is 0°C to 60°C, storage temperature is -40°C to 75°C, humidity 5% to 95% (non-condensing), meeting industrial requirements.
Q8: Is the module easy to install and replace?
A8: The module is plug-in type, can be directly installed on the Tricon chassis, making on-site maintenance and expansion highly convenient.
