Technical Specifications
| Parameter | Value / Description |
|---|---|

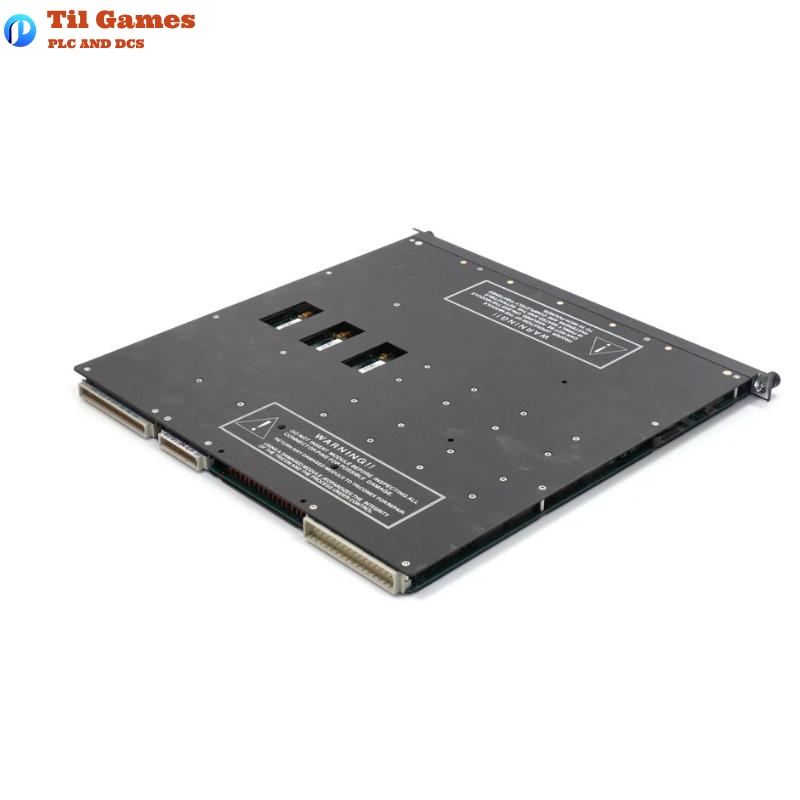

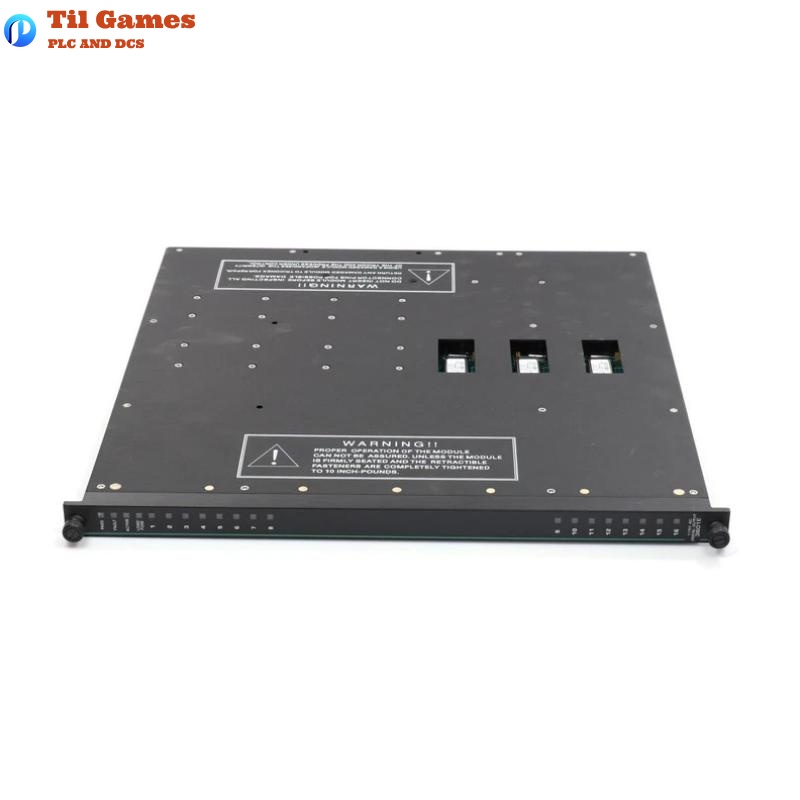

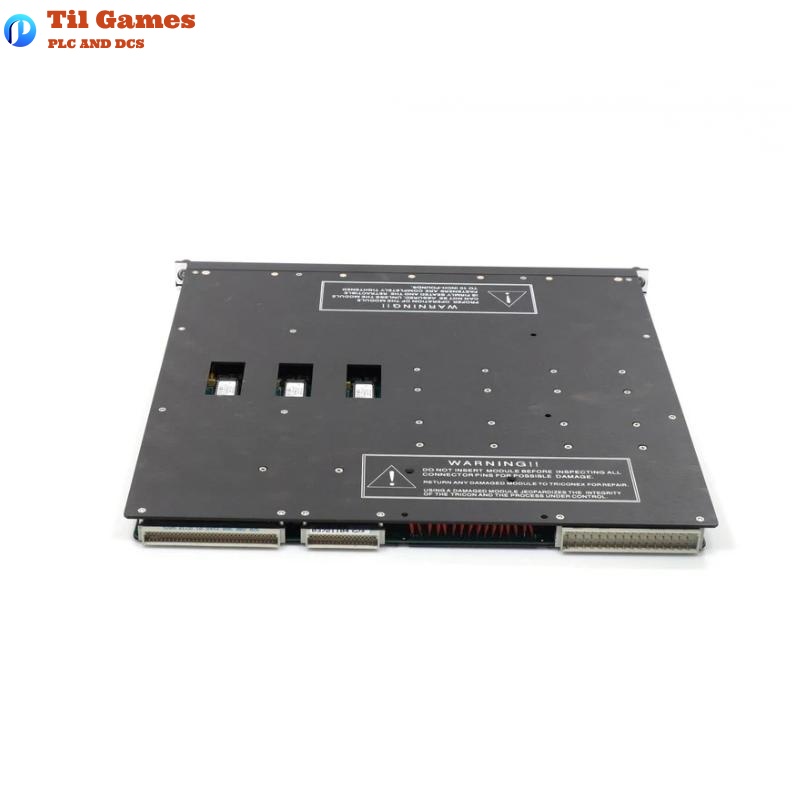

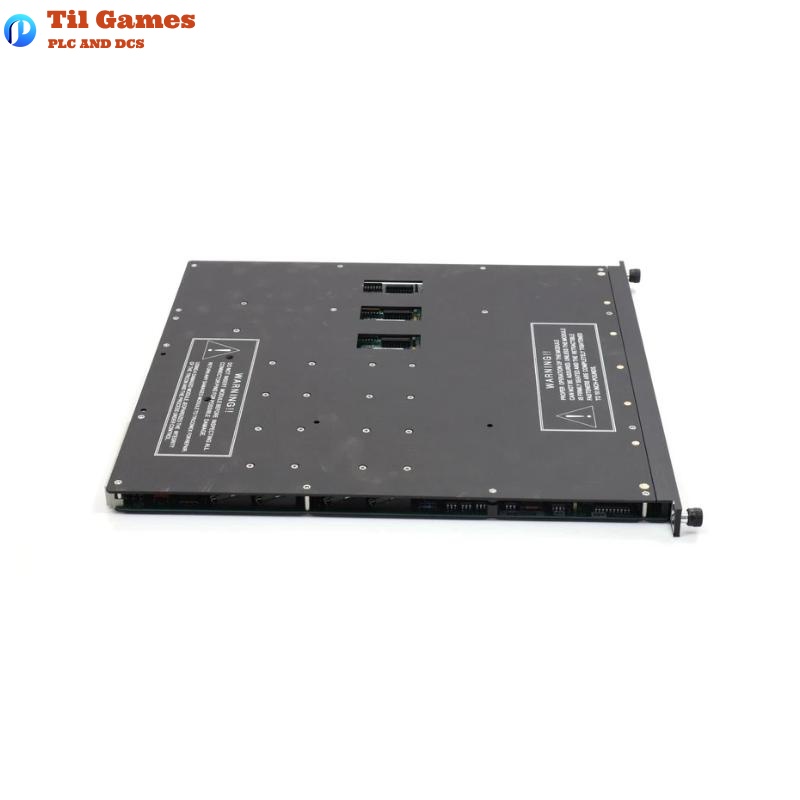

| Model | 3601E |
| Output Type | 115 VAC Digital Output, Non-commoned, Opto-isolated |
| Number of Channels | 16 channels |
| Module Type | Triple Modular Redundant (TMR) Digital Output |
| Output Voltage | 115 VAC |
| Max Current per Channel | 2A |
| Max Total Current | 16A |
| Response Time | 10 ms |
| Insulation Resistance | ≥100MΩ (500VDC) |
| Dielectric Strength | 1500 VAC |
| Channel Isolation | Opto-isolated between channels |
| Diagnostic Function | Supports self-diagnostics and fault detection |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -40°C ~ 75°C |
| Relative Humidity | 5% ~ 95%, non-condensing |
| Vibration/Shock | 2G (10~150Hz) / 15G (6-11ms) |
| Dimensions | 140 x 140 x 32 mm |
| Weight | 3.56 kg |
| Mounting Method | Rack-mounted |
| Certification Standards | Complies with TÜV, CSA, FM, CE, etc. |
FAQ
Frequently Asked Questions
Q1: How many output channels does the 3601E module support?
A1: The 3601E module supports 16 independent digital output channels.
Q2: What is the output voltage per channel?
A2: The rated output voltage per channel is 115 VAC.
Q3: What safety and diagnostic features does the module have?
A3: The 3601E features self-diagnostic and fault detection functions for real-time monitoring and enhanced system safety.
Q4: Does the 3601E support online hot swapping?
A4: Yes, the module can be replaced online without system shutdown.
Q5: What are typical application scenarios for this module?
A5: It is used in safety instrumented systems, emergency shutdown, boiler protection, gas turbine control, and other high-reliability areas.
Q6: What are the dimensions and weight of the 3601E module?
A6: The dimensions are 140 x 140 x 32 mm, and the weight is 3.56 kg.
Q7: What certifications does the 3601E have?
A7: The module is certified to TÜV, CSA, FM, CE, and other international safety standards.
Q8: What are the environmental requirements for use?
A8: Operating temperature is 0°C ~ 60°C, storage temperature is -40°C ~ 75°C, and relative humidity is 5% ~ 95% (non-condensing).
