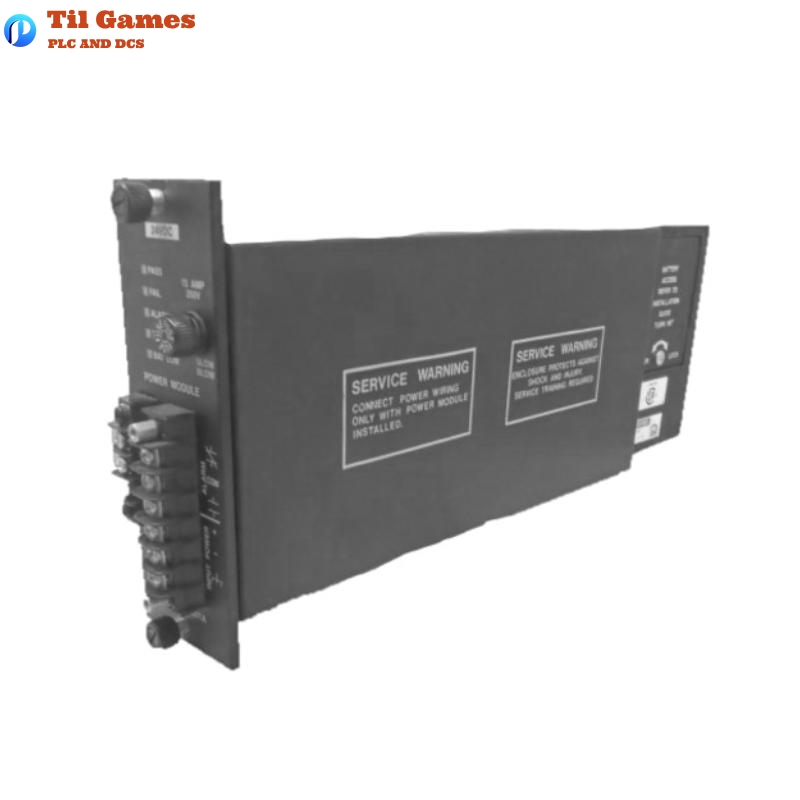

Triconex 8301A Power Supply Module
– Product Overview
The Triconex 8301A is a high-reliability power supply module designed specifically for use within Tricon high-density chassis. As a critical component in safety instrumented systems (SIS), the 8301A supports fault-tolerant operations through its dual-redundant configuration, ensuring uninterrupted power delivery to the control system even during a failure of one power source.
Designed with integrated diagnostics, robust construction, and compliance with stringent industrial safety requirements, the 8301A is ideal for mission-critical applications in sectors such as oil and gas, petrochemicals, power generation, and manufacturing.
– Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | Triconex 8301A |
| Product Type | Power Supply Module |
| Chassis Compatibility | Tricon High-Density Chassis |
| Input Voltage | 115V AC (also available: 24V, 230V models) |
| Output Voltage | Regulated for Tricon system |
| Redundancy Support | Yes, dual-redundant capability |
| Diagnostic Capability | Built-in diagnostics for voltage and temp. |
| Overload Protection | Yes, short-circuit and over-temp protected |
| Installation Slot | Left side of main chassis |
| Cooling | Natural convection |
| Mounting | DIN rail / chassis integrated |
| Dimensions | 63 mm x 178 mm x 394 mm |
| Weight | 3.3 kg |
| Compliance | IEC 61508, SIL 3 Certified |
| Lifecycle Phase | Mature → LifeTime |
– Key Features
-
Dual-redundant design for uninterrupted operation
-
Built-in diagnostic circuitry for voltage and thermal monitoring
-
Hot-swappable capability enables replacement without shutting down the system
-
Isolated power rails per channel ensure high safety and reliability
-
Integrated fault detection and alarm signaling
-
Supports three main processors and multiple I/O modules within one chassis
– Product Advantages
-
No single point of failure: Enhances reliability in safety-critical systems
-
Continuous operation: Even during module or channel faults
-
Minimized downtime: Through online repair and hot-swap capability
-
Simplified maintenance: Built-in diagnostics provide rapid fault identification
-
Compliant with industry standards: Ensures applicability across global SIS implementations
– Applications
-
Emergency Shutdown Systems (ESD)
-
Boiler Management and Flame Safety
-
Turbine Control (Gas & Steam)
-
Offshore Fire & Gas Protection
-
Refinery and Petrochemical Safety Systems
-
Power Plant Control Systems
-
High-Integrity Pressure Protection Systems (HIPPS)
– Latest Product News Headlines
-
“Triconex Power Modules Achieve Extended LifeTime Support Status”
-
“Invensys Enhances Triconex Redundancy Features for Critical Infrastructure”
-
“8301A Power Module Maintains Safety and Availability in Offshore Platforms”
-
“Triconex Lifecycle Report Confirms 8301A Operational into LifeTime Phase”
-
“Expanded Compatibility of Tricon Power Modules with Modern SCADA Systems”
– Related Triconex Models (Same or Similar Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 8300A | Standard Power Supply Module (115V) | 63 x 178 x 394 | 3.3 kg |
| 8305A | Power Supply Module (230V) | 63 x 178 x 394 | 3.3 kg |
| 8311A | Power Module with extended diagnostics | 63 x 178 x 394 | 3.3 kg |
| 8110 | High-Density Main Chassis | System integration unit | – |
| 8111 | High-Density Expansion Chassis | – | – |
| 3008 | Main Processor Module (Tricon V9.6+) | – | – |
– Popular Triconex Models
| Model | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 4500 | Highway Interface Module for Honeywell DCS | Communication | Standard Chassis | – |
| 4329 | Network Communication Module (v9) | Ethernet/OPC Comm. | Standard Chassis | – |
| 3008 | Main Processor Module | Core Processing | – | – |
| 4100 | Intelligent Comm. Module (v5) | Serial Communication | – | – |
| 8110 | High-Density Main Chassis | Enclosure | – | – |
| 8311A | Enhanced Redundant Power Supply Module | Power | 63 x 178 x 394 | 3.3 kg |
FAQ
– Frequently Asked Questions (FAQ)
Q1: What type of redundancy does the 8301A support?
A1: The 8301A supports dual-redundant configuration, with each module powering separate rails, ensuring system continuity in case one fails.
Q2: Can the 8301A be hot-swapped without shutting down the Tricon system?
A2: Yes, the 8301A is hot-swappable and allows for online module replacement without process interruption.
Q3: What diagnostics does the 8301A provide?
A3: It includes voltage range monitoring, thermal protection, and fault signaling to indicate over-voltage or over-temperature conditions.
Q4: What are the dimensions and weight of the 8301A?
A4: The module measures 63 x 178 x 394 mm and weighs 3.3 kg.
Q5: Which chassis is compatible with the 8301A?
A5: It is designed for Tricon high-density main and expansion chassis.
Q6: How long is the lifecycle support for the 8301A?
A6: The 8301A is currently in the LifeTime Phase, with best-effort support provided beyond the standard 10-year mature phase.
Q7: What industry standards does the 8301A meet?
A7: It complies with IEC 61508 and is certified for SIL 3 safety applications.
Q8: Is the 8301A suitable for offshore and hazardous environments?
A8: Yes, it is built to operate reliably in harsh industrial settings including offshore oil platforms and chemical plants.
